Understanding the Software Configurations
■
“Understanding Medium Domains (Half Rack)” on page 65
■
“Understanding Small Domains (Half Rack)” on page 67
Logical Domain Configurations and PCIe Slot Mapping (Half
Rack)

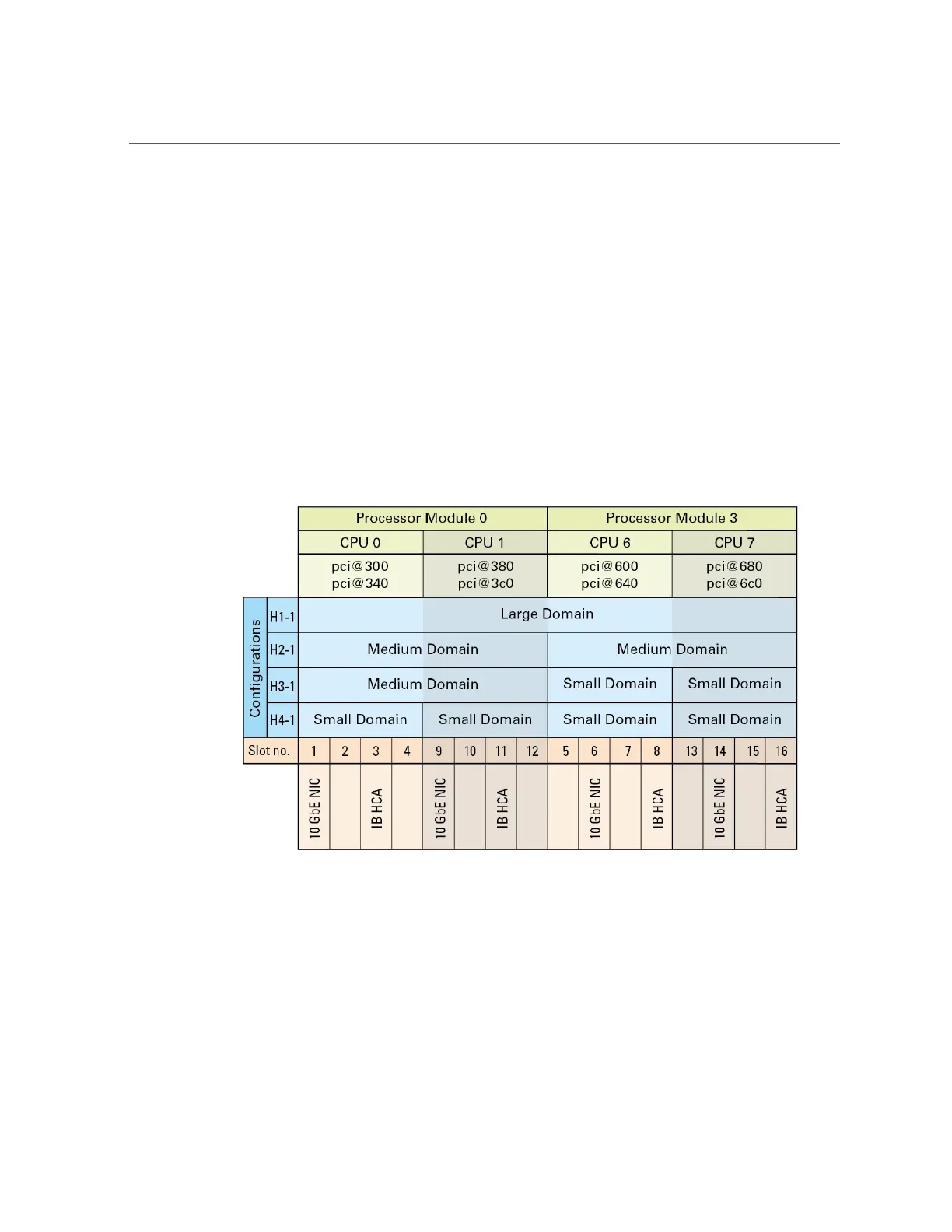

The following figure provides information on the available configurations for the Half Rack.
It also provides information on the PCIe slots and the InfiniBand (IB) HCAs or 10-GbE NICs
installed in each PCIe slot, and which logical domain those cards would be mapped to, for the
Half Rack.
FIGURE 16
Logical Domain Configurations and PCIe Slot Mapping (Half Rack)
Related Information
■
“Understanding Large Domains (Half Rack)” on page 63
■
“Understanding Medium Domains (Half Rack)” on page 65
62 Oracle SuperCluster T5-8 Owner's Guide • May 2016
