radEAGLE User Manual Powering the radEAGLE

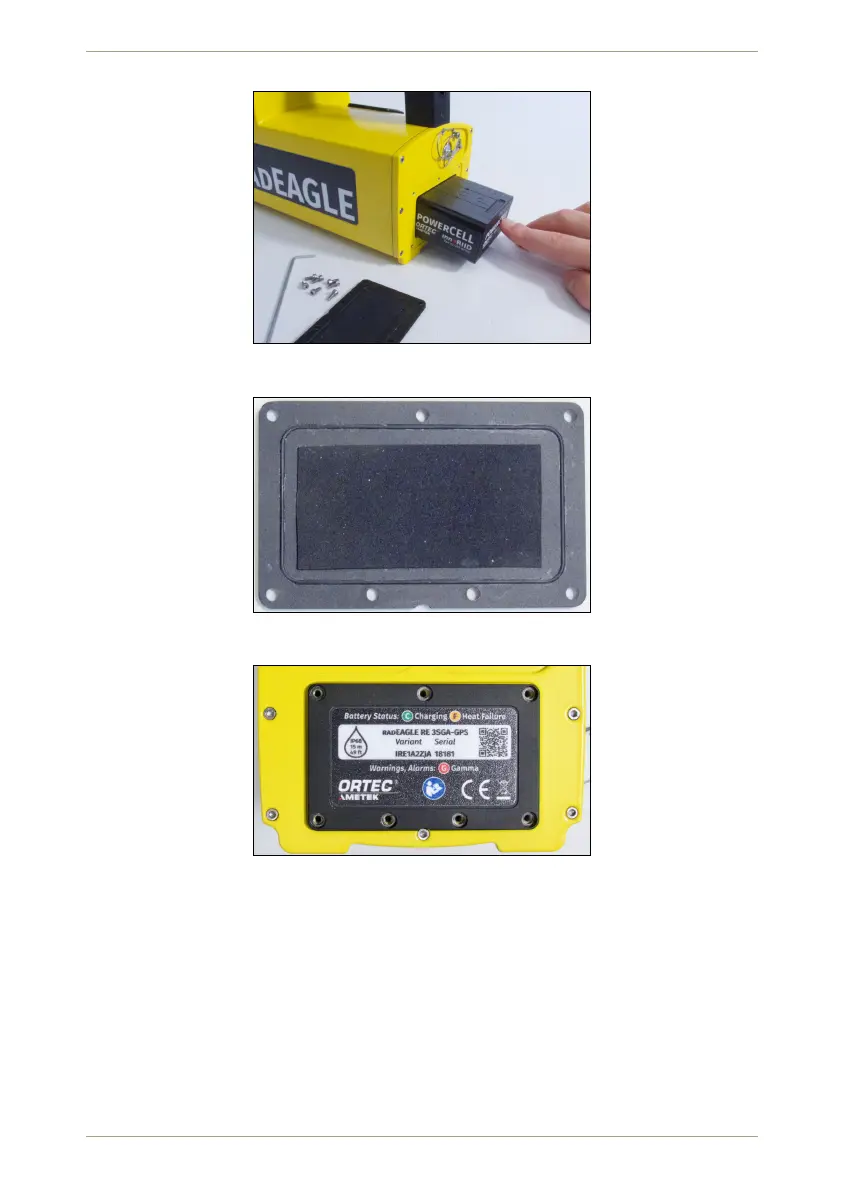

Figure 137: Inserting the powerCELL

Figure 138: Correct placement of the O-ring seal on the inner side of the cover plate

Figure 139: Correct placement of the battery cover plate

8.3 External Power Sources

You can connect the radEAGLE to external power sources via the connector on the rear

side of the instrument Fig. 2a, p. 15.

Included with the radEAGLE are:

• Wall power supply (8.3.1, p. 114)

• Car adaptor
