radEAGLE User Manual Powering the radEAGLE

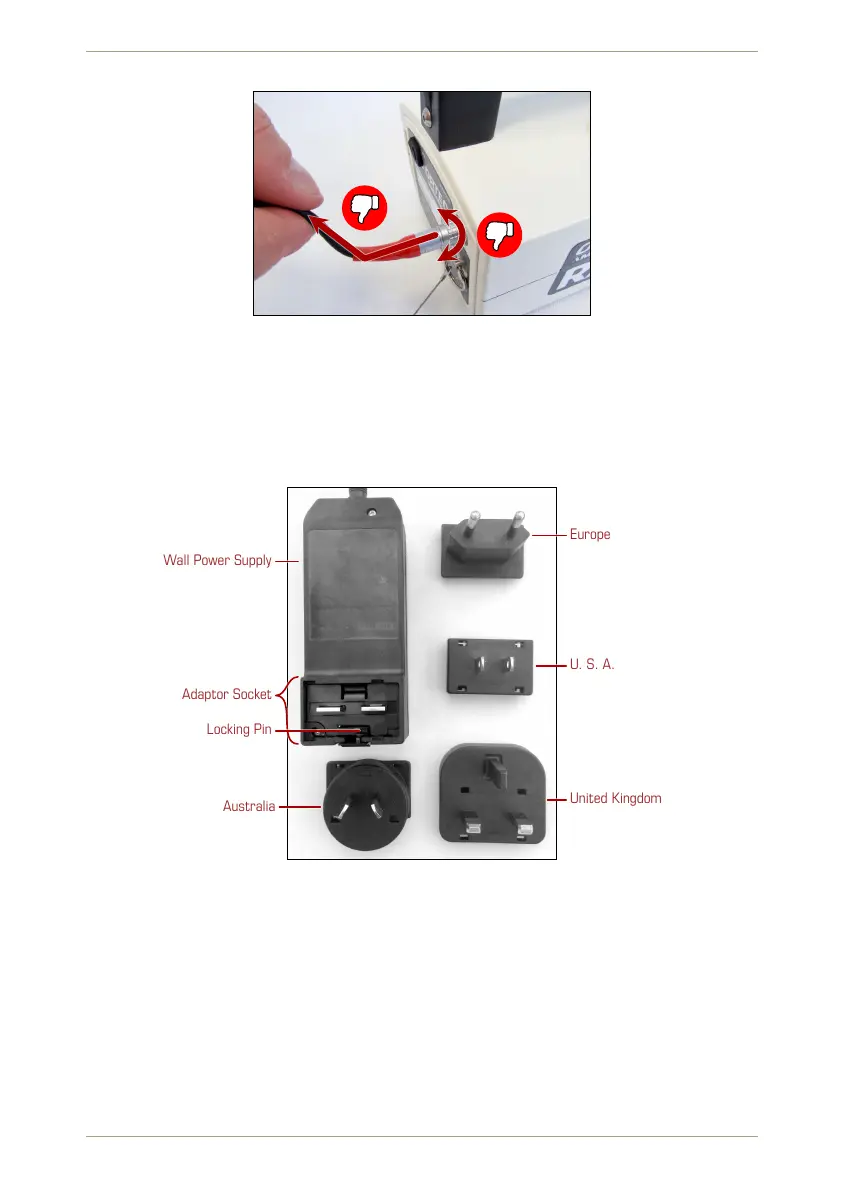

Figure 142: Do NOT rotate the connector, do NOT bend or pull at the power cable!
Other models feature swappable adaptors for several international wall outlet standards
(Fig. 143, p. 115).
Wall Power Supply
Adaptor Socket
Locking Pin
Australia
Europe
U. S. A.
United Kingdom
Figure 143: Wall power supply with international adaptors
Ü To swap the international adaptor…
1. Press the lock and slide the current adaptor to the side out of its socket (Fig. 144,
p. 116).
2. Insert the desired adaptor into the socket and move it until it snaps into place
(Fig. 145, p. 116).
© innoRIID GmbH • 2019-04-11 Software 3.2.12 • Document 3.3.0o 115/147
