radEAGLE User Manual Welcome

USB-A Host Connector for

Communication Dongles

(Wi-Fi, Bluetooth , …)

USB Mini-B Connector

(Computer Connection)

Battery Pack Ori-

entation Mark

Battery Pack Contacts

Battery Slide Switch

Plug Alignment Mark

Connector for Custom Charger

Locking Screw for Latch

Compartment for Battery

Pack

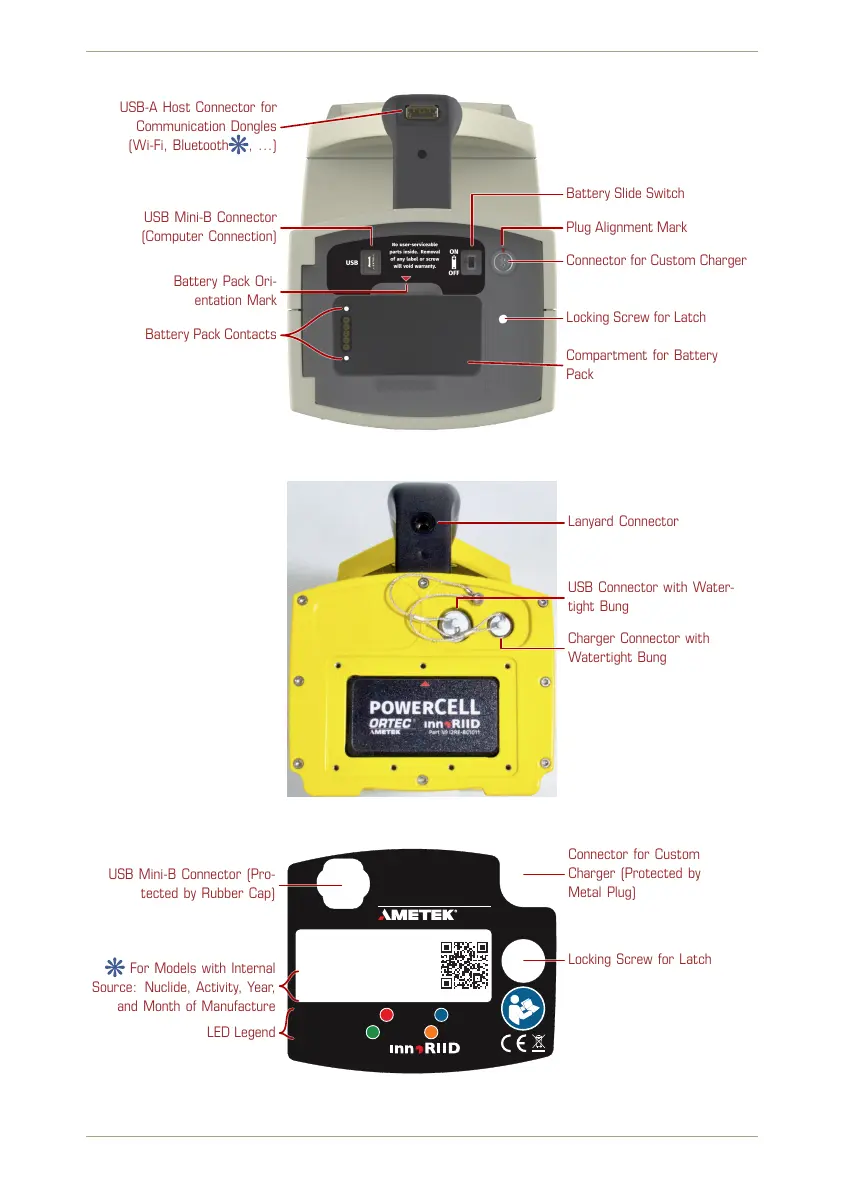

Figure 2a: Rear view of the radEAGLE with open latch (standard housing)

Lanyard Connector

USB Connector with Water-

tight Bung

Charger Connector with

Watertight Bung

Figure 2b: Rear view of the radEAGLE with open battery compartment (underwater housing)

EAGLE™

Model: RE-3SGI-H-GPS

Serial: 18181

Contains radioactive

137

Activity: 111Bq =3nCi [2018-11]

Warnings, Alarms: G Gamma N Neutrons

Battery Status: C Charging F Heat Failure

Made in Germany by

CHARGERUSB

ORTEC

USB Mini-B Connector (Pro-

tected by Rubber Cap)

Locking Screw for Latch

Connector for Custom

Charger (Protected by

Metal Plug)

For Models with Internal

Source: Nuclide, Activity, Year,

and Month of Manufacture

LED Legend

Figure 3: Name plate on the rear latch of the radEAGLE
