8.4 Charging the powerCELL radEAGLE User Manual

1. Pull Down

2. Pull and Slide

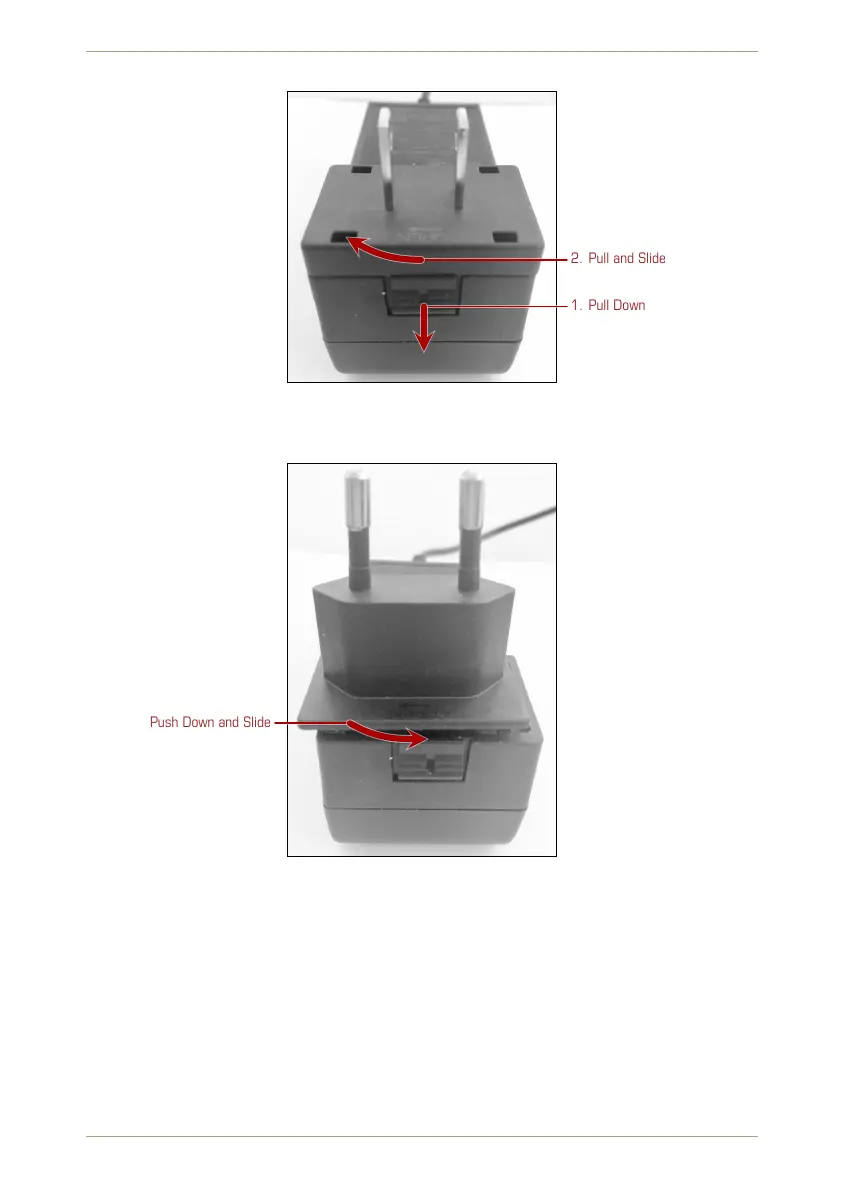

Figure 144: Removing an adaptor from the wall power supply

Push Down and Slide

Figure 145: Mounting an adaptor to the wall power supply

8.4 Charging the powerCELL

While your radEAGLE is connected to an external power source (see 8.3, p. 113) an installed

black powerCELL (see 8.1.1, p. 107) will be charged.

Charging is reported by a green LED (see 2.1.1, p. 23, Fig. 1, p. 14), which goes oﬀ when the

battery is fully charged.
