1.5.1.3 Neutron Detector
This item is available for radEAGLE models with a neutron detector (see E.1, p. 135).
The
3
He neutron detector continuously runs and acquires the current neutron counts per
second (cps) (ÞNeutron Detector).
1.5.2 Overview
Fig. 1, p. 14 shows a top view on the radEAGLE instrument. The radEAGLE features a 3.5 in
(89 mm) color display presenting the various screens of the software.
The keyboard below the screen has 3 keys ( ) you can press with your thumb while
holding the instrument.
Detector Cap Geiger-Müller Counter (Red Dot)
Handle with Vibrator
GPS Antenna (Under
Plastic Cover)
Beeper (Below Keyboard)
Current Time
Battery Status
Communication Status
GPS Status
Stabilization Status
Data Logging Status
Spectrum Acquisition Status
Current Key Commands
3-Button Keyboard with
Status LEDs
Battery Failure LED
Gamma Alarm LED
Neutron Alarm LED
Battery Charging LED
ON Key
3
He Neutron Detector
(Near Bottom of Instru-
ment, Blue Dot)
Optional Feature

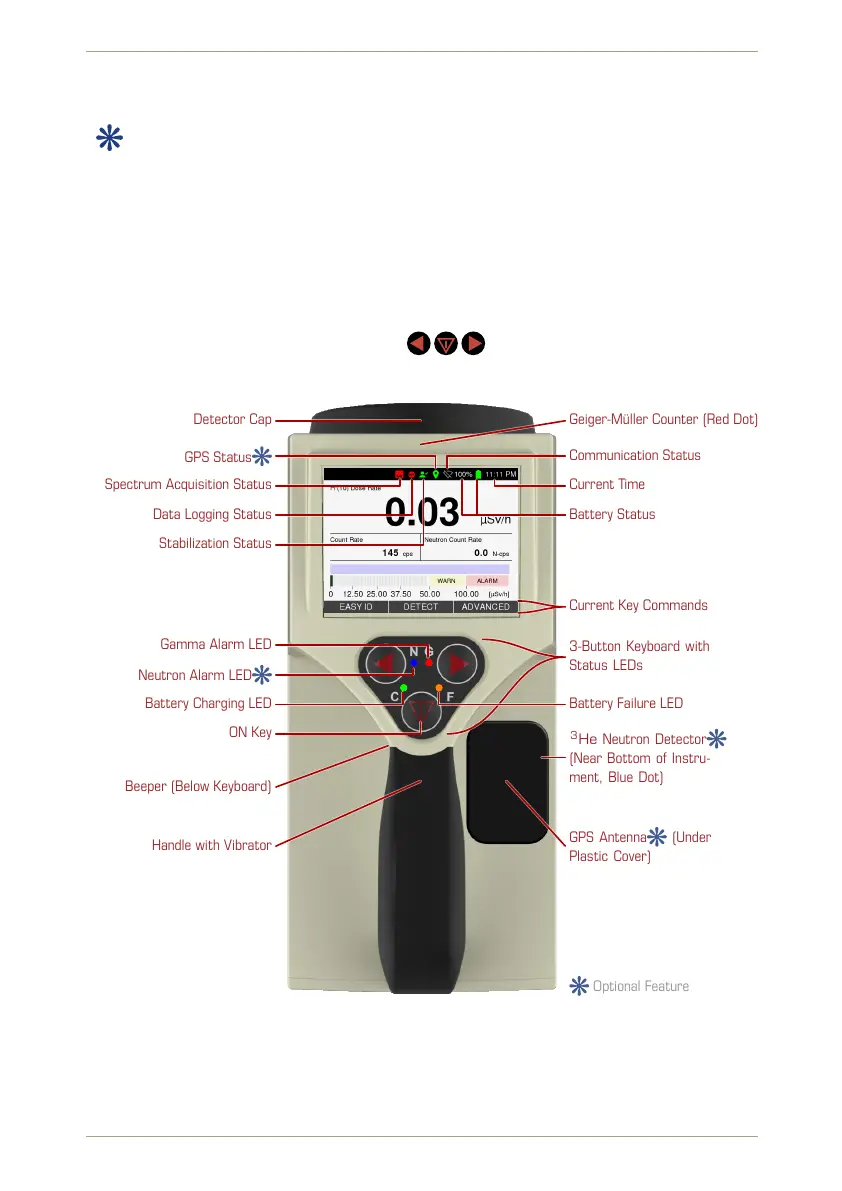

Figure 1: Annotated top view of the radEAGLE instrument
14/147 Software 3.2.12 • Document 3.3.0o © innoRIID GmbH • 2019-04-11
