radEAGLE User Manual Info Pool
E.2 Detector Positions
245
113
156
151
26.3
22.7
24
56.15
142.3
56.5 26.8
Scintillator Crystal (Gamma)
Geiger-Müller Tube (Gamma)
Optional
3
He Tube (Neutrons)
All dimensions given in mm (25.4 mm = 1 in)

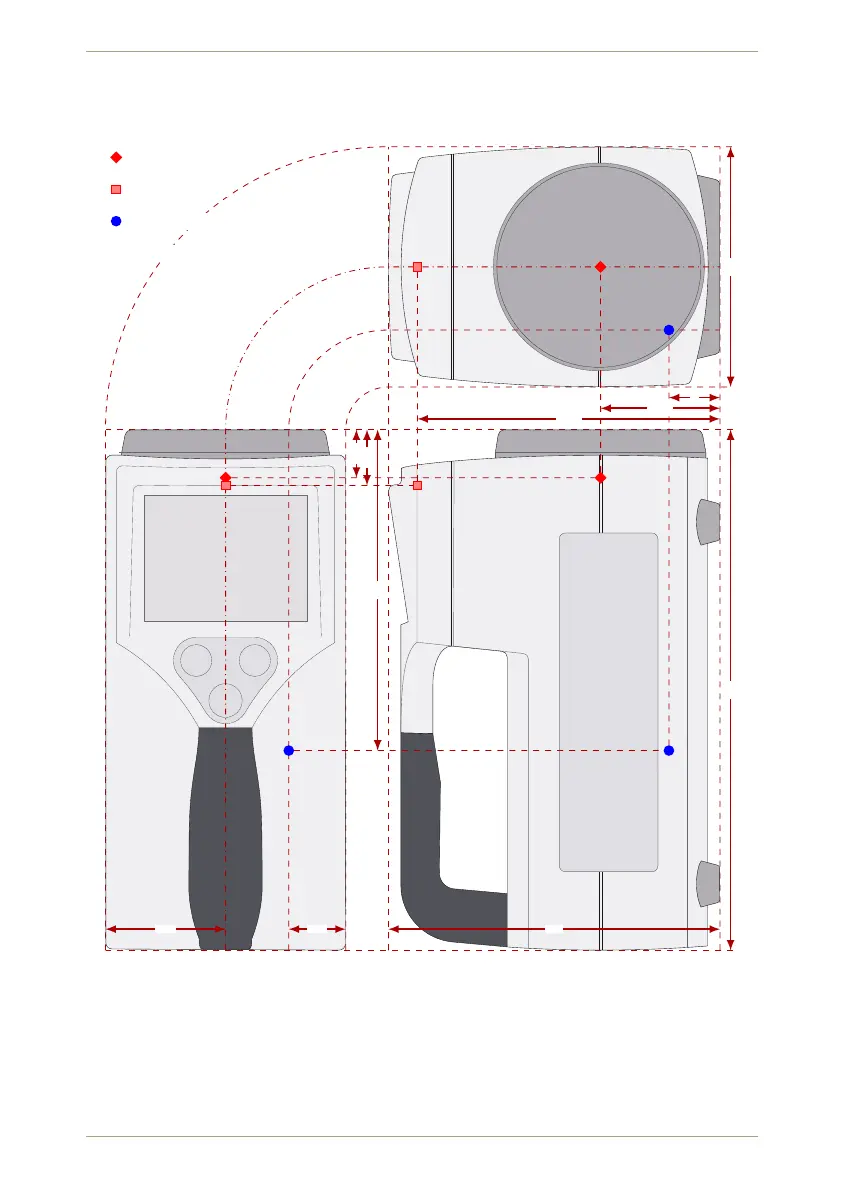

Figure 146a: Position of the detector centers of the radEAGLE (2 or 3 in×1 in scintillator, drawn to
scale)
© innoRIID GmbH • 2019-04-11 Software 3.2.12 • Document 3.3.0o 141/147
