Programming
116 900-0117-01-00 Rev B
Example #2:
Weekday Start - 6:00 p.m. Weekday Stop - 6:00 a.m.
Weekend Start - 4:00 p.m. Weekend Stop - 8:00 a.m.
Monday–Thursday evenings at 6:00 p.m., the MATE3 issue a
USE
command to the inverter allowing the AC input
source to be used.
Monday–Friday at 6:00 a.m., a
DROP
is issued. On Friday evening at 6:00 p.m., a
USE
is issued.
Saturday morning a
DROP
command is issued at 8:00 a.m. Saturday afternoon at 4:00 p.m., the inverter will
USE
again until Sunday morning at 8:00 a.m. Sunday evening at 4:00 p.m., a
USE
time period will start, ending on
Monday morning at 6:00 a.m.

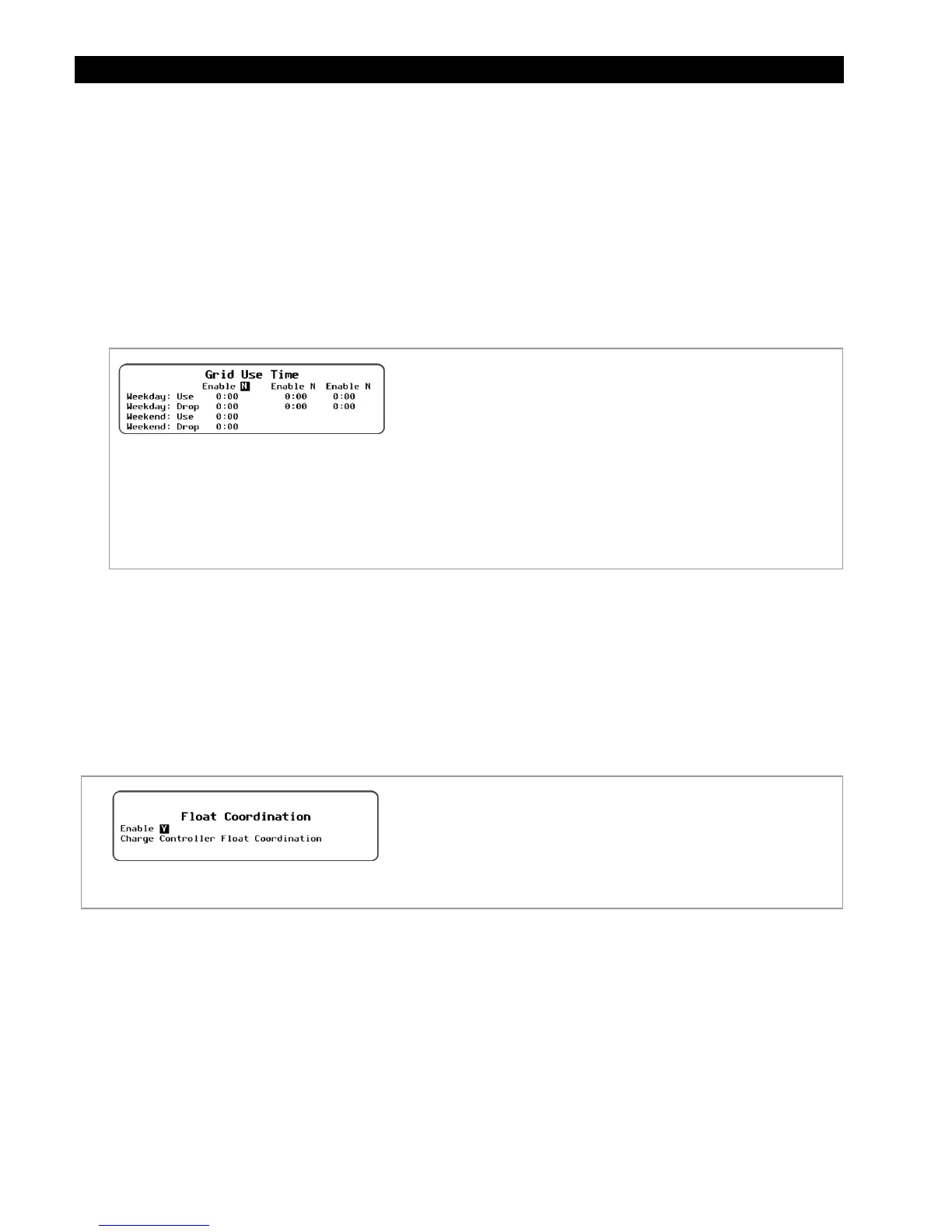

Figure 143 MATE3 Grid Use Time Screen
Charge Controller Float Coordination
The advanced charger float control menu enables the coordination of more than one OutBack FLEXmax
charge controller (also works on MX60 charge controllers with firmware revision 5.11). This enables the
devices to enter the float stage, or perform other activities, simultaneously rather than individually. Float
Coordination means that when one charge controller finishes a bulk charge and moves into float charge,
the MATE3 directs any other charge controllers into a float charge as well.
Figure 144 MATE3 Charge Controller Float Coordination Screen
Set Points:
Enable
–
N
= No,
Y
= Yes
Weekday: Use
–
00:00
to
23:59
(three occurrences)
Weekday: Drop
–
00:00
to
23:59
(three occurrences)
Weekend: Use
–
00:00
to
23:59
Weekend: Drop
–
00:00
to
23:59
Set Points:
Enabled – N
= No,
Y
= Yes
