OutBack Power MATE3 User Manual

System Settings
900-0117-01-00 Rev B 79
Ethernet Ports
The MATE3 is preprogrammed to use the following ports for Ethernet communication. These ports are
adjustable if required. See pages 24 through 28.

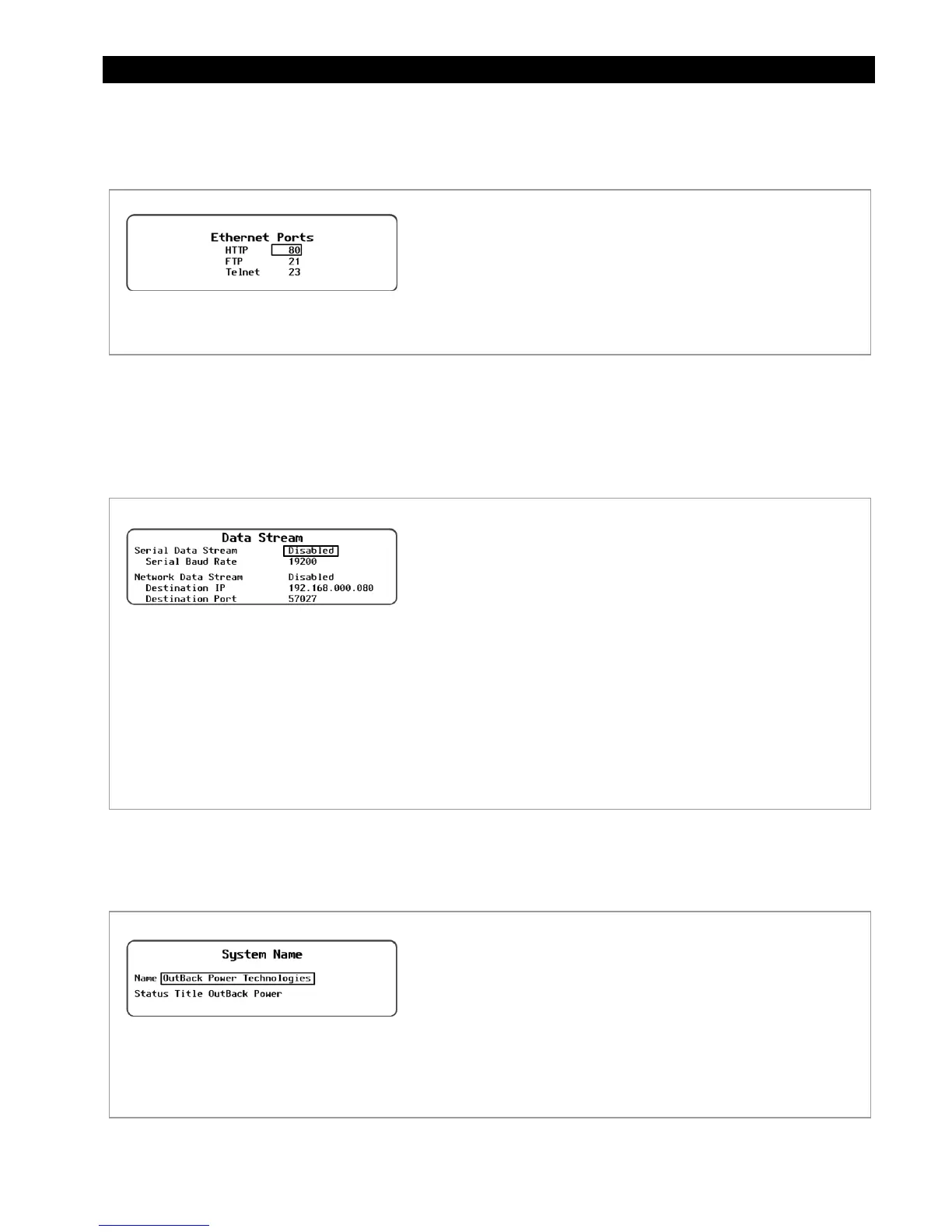

Figure 82 Ethernet Ports
Data Stream
Two choices are available for downloading information.

Use the
Serial Data Stream
option if the data’s destination will be a personal computer.

Use the
Network Data Stream
option if the data is destined for a network server.
Figure 83 Data Stream Screen
System Name
The
System Name
screen allows the installer to give the installation a unique name and status title.
Figure 84 System Name
Set Points:
 Name – Any combination of characters up to 30
characters maximum. This information is displayed by
the web site interface (if used).

Status Title – (Optional) Any combination of characters
up to 15 characters maximum. This name is displayed
on the Home screen.
Set Points:

HTTP
– Range
1
to
65535
(Default
80
)

FTP
– Range
1
to
65535
(Default
21
)

Telnet
– Range
1
to
65535
(Default
23
)
Set Points:
 For connecting to a personal computer:
~
Serial Data Stream – Enabled or Disabled
~ Serial Baud Rate – 9600 , 19200 , 34800 , or 57600
 For connecting to a Network Server:
~
Network Data Stream – Enabled or Disabled
~ Destination IP – The IP address of the host computer
or server.
~ Destination Port – The port number assigned to the
MATE3 on the host computer or server.
