OutBack Power MATE3 User Manual

Configuration Wizard
900-0117-01-00 Rev B 119
Configuration Wizard
The Configuration Wizard is a guided program that assists in configuring system setups. An installer can
create new configurations, use existing configurations, or restore configurations to their original state.
Creating New Configurations

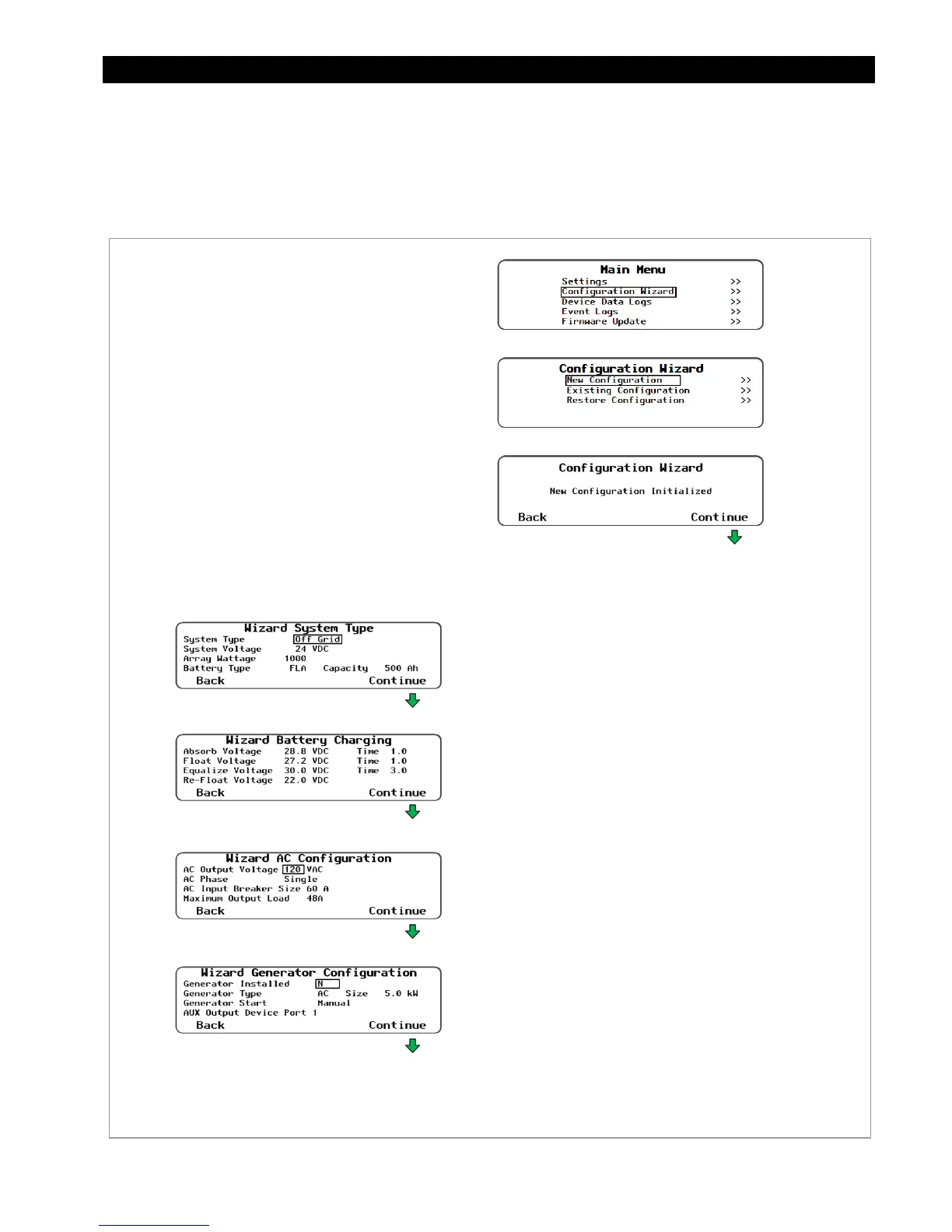

Figure 147 Creating New Configurations using the Configuration Wizard
Soft Keys:
<Back> moves back one screen.
<Continue> moves forward to the next screen.
Set Points:
System Type (see page 74):

System Type
 System Voltage
 Array Wattage
 Battery Type/Capacity
Battery Charging (see pages 86 and 86):

Absorb Voltage/Time
 Float Voltage/Time
 Equalize Voltage/Time
 Re-Float Voltage
AC Configuration (See pages 83 - 85, and 90):

AC Output Voltage (Vac)

AC Phase
 AC Input Breaker Size (amps)

Maximum Output Load (amps)
Generator Configuration (See pages 74 and 105):
 Generator Installed – Y or N
 Generator Type – AC or DC

Size – 0.0 to 150.0

Generator Start (manual, auto)

Aux Output Device Port – 1
Continued on next
p
a
g
e...
To create a new configuration:
1. Access the
Main Menu as shown in Figure 71.
2. Select the
Configuration Wizard menu.
3. Select
New Configuration .
4. Press <Continue> to confirm the creation of a
new configuration.
5. Use the control wheel to adjust the settings in
each screen where required. Record the settings
on the form provided in 4Table 11.
