Installation
900-0117-01-00 Rev B 15
Mounting Options
Mounting bracket kits are sold as accessories for the MATE3 to accommodate different types of
installations; a flat mount, a surface mount, and a FLEXware mount. Follow the installation
instructions included with each bracket for mounting the MATE3.

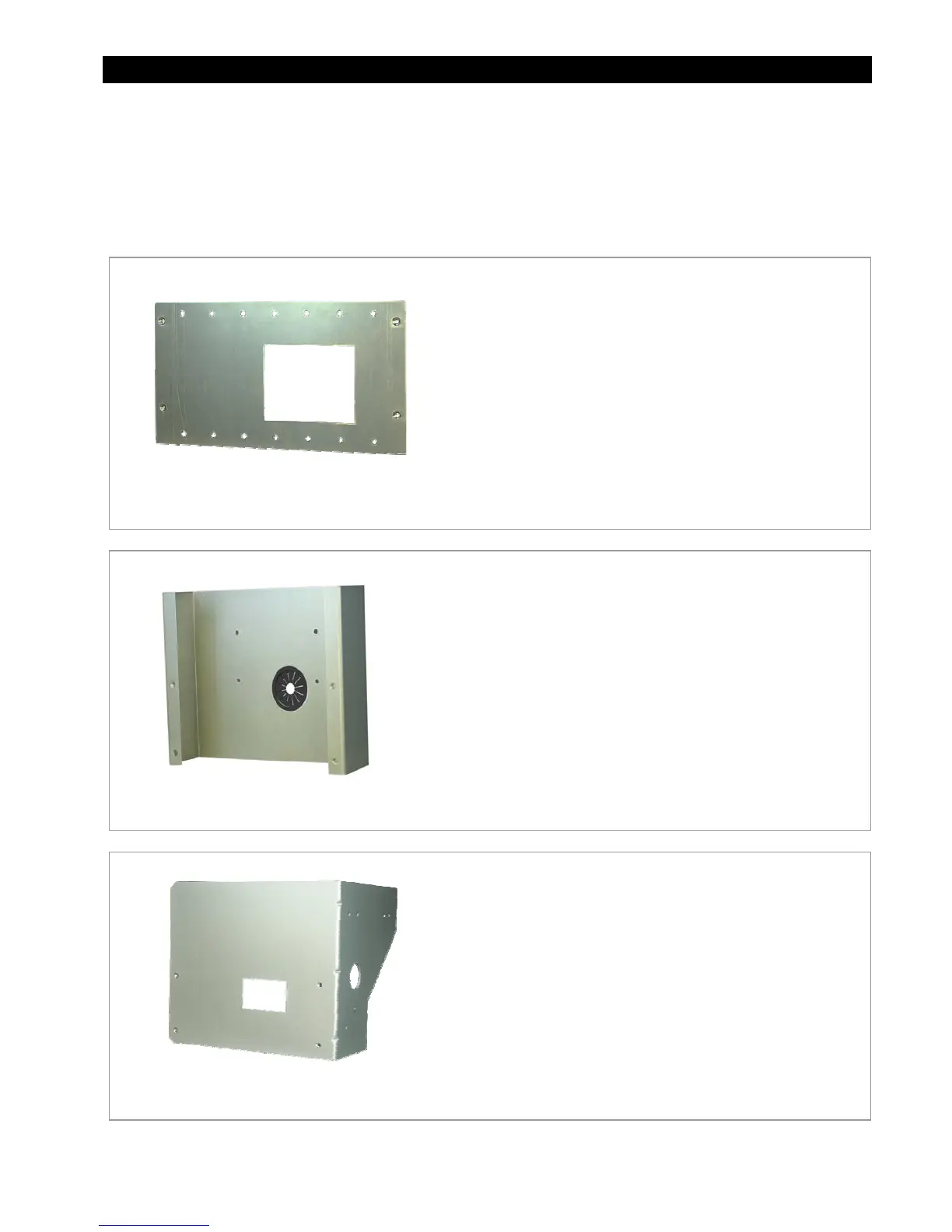

Figure 3 MATE3 Flat Mount Kit (FW-MB3-F)
Figure 4 MATE3 Surface Mount Kit (FW-MB3-S)
Figure 5 MATE3 FLEXware Mount Kit (FW-MB3)
The MATE3 Surface Mount Kit (FW-MB3-S) is used for mounting the
MATE3 to a flat surface, but doesn’t require any holes in the surface to
accommodate the CAT5 cable. It consists of a bracket that holds the
MATE3 away from the surface to allow clearance for the CAT5 cable.
The FLEXware MATE3 Mounting Bracket (FW-MB3) is intended for
mounting the MATE3 to a FLEXware assembly, either a FLEXware 1000 or
FLEXware 500 AC Enclosure.
The MATE3 Flat Mount Kit (FW-MB3-F) is used for mounting the
MATE3 flat against a wall surface. It consists of a flat mounting plate.
It requires that an electrical outlet box (not provided) be installed in
the wall to allow space for the CAT5 cables protruding out of the
back of the MATE3. The CAT5 cable is then run through the wall into
the electrical outlet box to the MATE3. The MATE3 mounts to the
plate with the cable recessed into the wall.
