OutBack Power MATE3 User Manual

Operation
900-0117-01-00 Rev B 53
DataLog Screen
The
<Datalog>
soft key shows accumulated daily amp-hour and watt-hour statistics, as well as maximum
current, wattage, and maximum and minimum voltage figures. These maintain a continuous daily log, up
to 128 days, which can be recalled. One day can be displayed at a time.

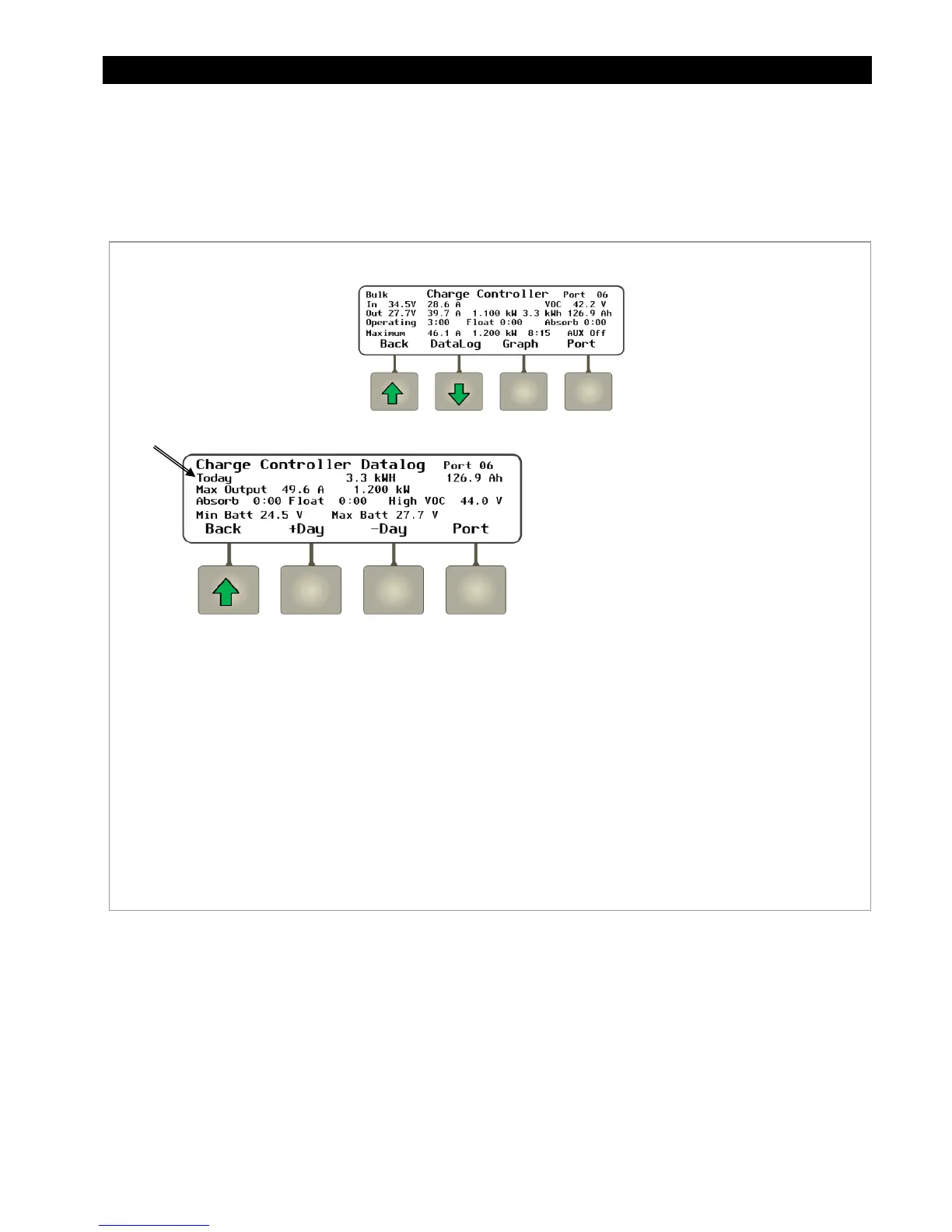

Figure 49 DataLog Screen
Soft Keys:
<+Day> advances the display forward by a
single day. If the display reads “Today”, it
does nothing.
<–Day> advances the display backward by a
single day and will display the selected date.
<Back> returns to the previous screen.
<Port> cycles through each device
connected to the network.
Current Date
Screen Items:
The upper left corner shows the date of the
selected Datalog screen. (The current Datalog
screen reads "Today.") To the right, this line also
displays the kilowatt-hours and amp-hours
accumulated that day.
Max Output displays the maximum current and
wattage recorded that day.
Absorb The amount of time the absorption timer
ran that day.
Float
T
he amount of time the Float timer ran that
day.
High VOC displays the highest open-circuit
voltage (VOC) recorded that day.
Min Batt displays the lowest battery voltage
recorded that day.
Max Batt displays the highest battery voltage
recorded that day.
