Adjusting Set Points
When a screen with set points is available, the set points will be identifiable by a black box around the
field. This indicates that the menu is in Field Select mode. To change this to allow adjustments using
Adjust Set Point mode, follow the instructions below.
To Adjust Set Points:
1. Use the control wheel to navigate to the desired set point to be adjusted.
The field is identified by a black box around the field (Field Select mode). Using the control wheel in
this mode will move the black box to each field in sequence.
2. When the desired set point is selected, press the center button. The box around the field should
become solid (Adjust Set Point mode).
3. Use the control wheel to change the set point value.
4. When the set point is correct, press the center button again to return to Field Select mode.
5. Repeat Steps 1-4 for each set point to be adjusted.

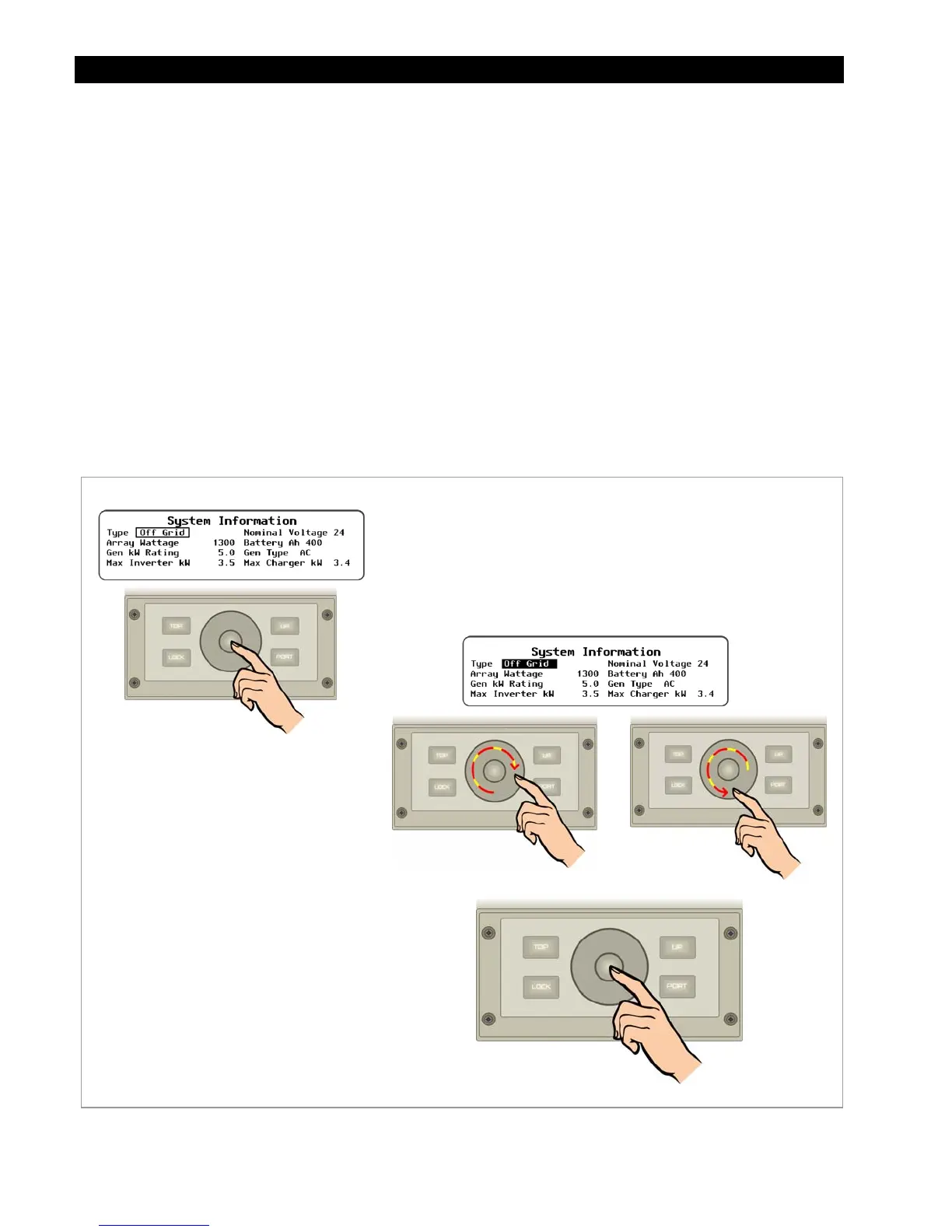

Figure 70 Field Select Mode and Set Point Adjust Mode
Field Select Mode
Adjust Set Point Mode
When the set point is correct, press
the center button to return to Field
Select mode.
To Next Page
