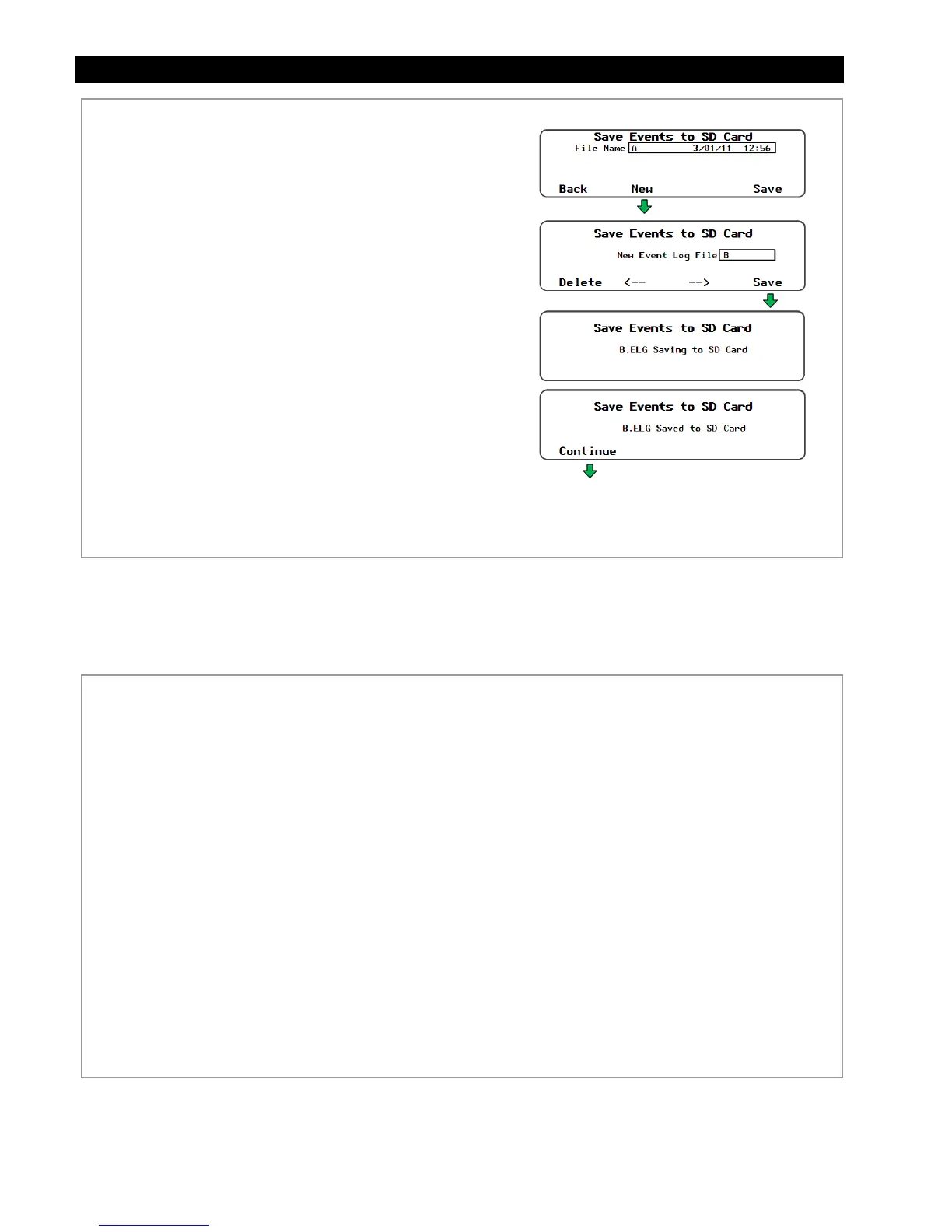

Figure 158 Saving Event Logs (continued)
To Read an Event Log File from the SD Card
When an Event Log is downloaded to an SD card, an .elg file is created. This file can be opened in
Notepad or MS Word as a text file.
Figure 159 Sample Event Log from an SD Card
6/16/11,12:16:09,FX-1,IN AC Voltage OK,119 VAC
6/16/11, 6:25:13,Remote Power Down
6/16/11, 6:25:13,Remote Power Up
6/09/11,15:36:55,Remote Power Down
6/09/11,15:40:08,Remote Power Up
6/08/11,10:51:44,Remote Power Down
6/08/11,15:31:14,Remote Power Up
6/08/11,10:28:02,Remote Power Down
6/08/11,10:28:43,Remote Power Up
6/07/11,14:31:59,Remote Power Down
6/07/11,14:32:09,Remote Power Up
6/07/11, 9:45:30,Remote Power Down
6/07/11, 9:45:38,Remote Power Up
6/06/11, 9:12:59,Remote Power Up
5/31/11,15:35:01,Remote Power Down
5/31/11,15:35:21,Remote Power Up
5/31/11,15:37:10,FX-1,IN AC Freq Too High, 0.0 Hz
5/31/11,15:37:10,FX-1,IN AC Voltage Too Low, 0 VAC
5/31/11,15:37:10,FX-1,IN AC Current Too High,127 A
5/31/11,15:37:12,FX-1,IN AC Freq OK, 0.0 Hz
5/31/11,15:37:16,FX-1,IN AC Current OK, 0 A
5/31/11,15:37:30,FX-1,IN AC Voltage OK, 63 VAC
5/31/11,15:34:51,FX-1,IN AC Voltage Too Low, 0 VAC
5/31/11,10:11:37,Remote Power Down
5/31/11,10:11:41,Remote Power Up
To create a new name for the Event Log
(up to 8 characters maximum):
1. On the
Date Range
set point, use the control wheel to select
the date for the event log (or logs) to be uploaded to the SD
card. The range will start with "
All
" and will move backward
to
yesterday
, up to one year's worth of logs.
2. If a log with a specific date is desired, then use the Control
Wheel to scroll through the list. When the name to be
uploaded is selected, press <Continue>.
3. To create a new name for the log:
~ Use the control wheel to scroll through the available
characters.
~ Use <> and <> to move to the next character
location.
~ Press the <Delete> soft key to erase the character that is
highlighted.
4. Press <Save> to save the new Event Log on the SD card.
5. Press <Continue> to return to the
Upload and Save Data
Log
menu.
Returns to the
Event Logs
screen.
