Operation
54 900-0117-01-00 Rev B
Graph Screens
The
<Graph>
soft key brings up the following screens which plot various type of data over time. The first
screen shows changes in PV wattage over time.

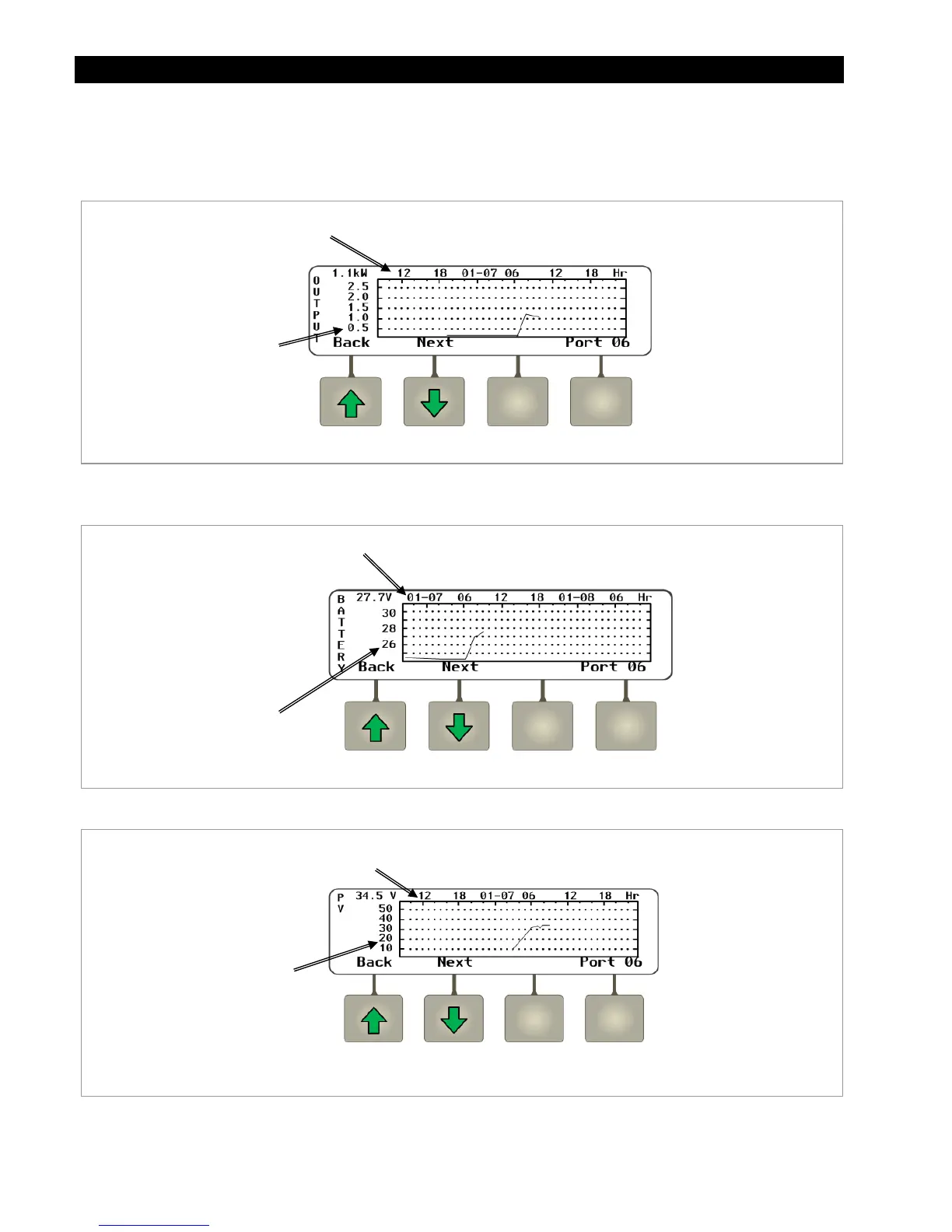

Figure 50 Output Graph
The <Next> soft key brings up a screen showing changes in battery voltage over time. This graph may be
used by other soft keys.
Figure 51 Battery Graph
The <Next> soft key brings up a screen showing changes in PV voltage over time.
Figure 52 PV Graph
Continuing to press the <Next> soft key will proceed through the same graphs again from the beginning.
T
his axis shows date and time
in 6-hour increments.
This axis shows
PV wattage.
This axis shows
battery voltage.
This axis shows date and time
in 6-hour increments.
This axis shows
PV voltage.
This axis shows date and time
in 6-hour increments.
