OutBack Power MATE3 - Installation; Parts List; Dimensions

900-0117-01-00 Rev B 13
Installation
Parts List
The following items are included with the MATE3 System Display and Controller:

MATE3 (with front cover)

SD memory card
1

6-foot CAT5 non-crossover cable

Silicon grease pack

MATE3 System Display and Controller Owner’s Manual (this manual)
Dimensions

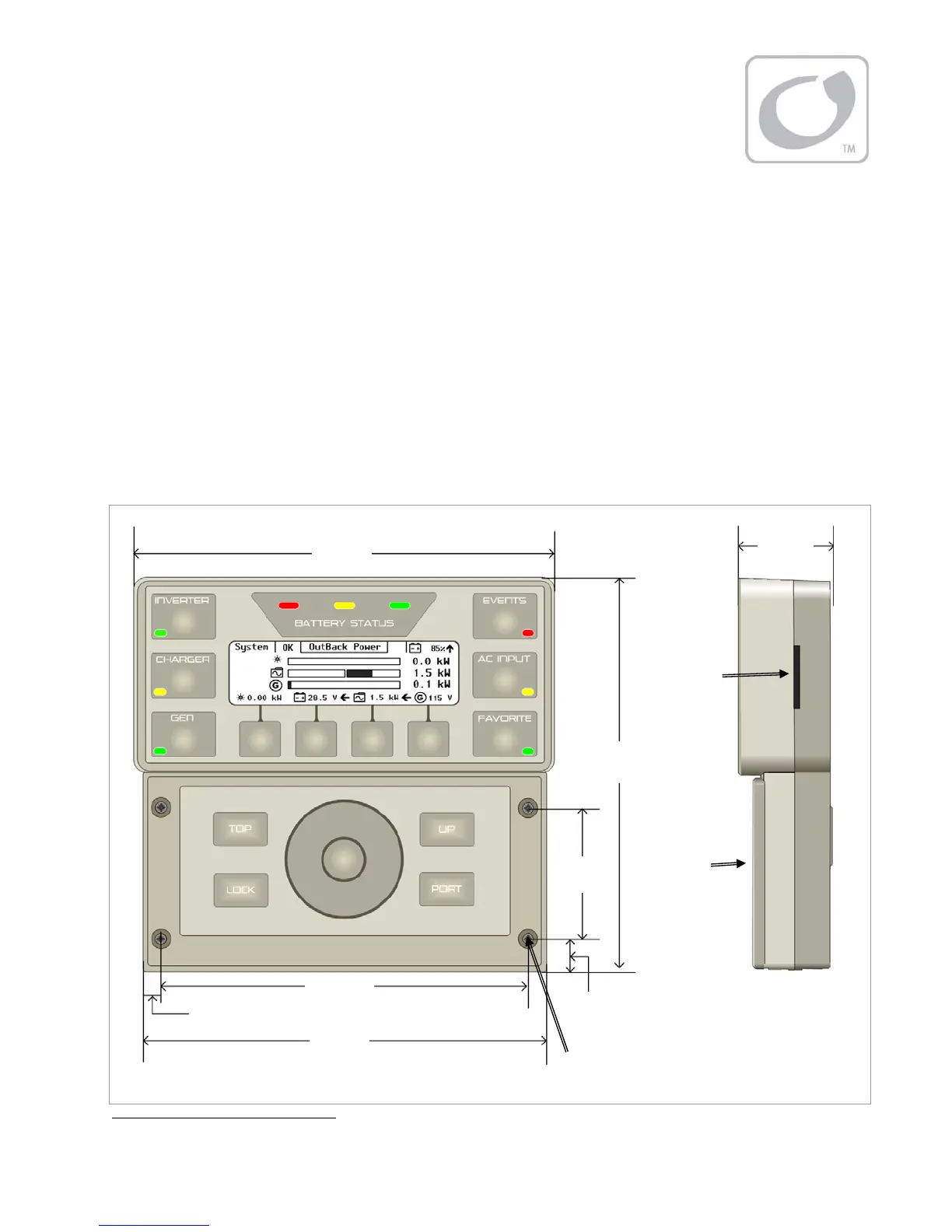

Figure 2 MATE3 Dimensions
1
Size may vary depending on availability.
Side View
7 1/6”
(17.9 cm)
2 3/8”
(6 cm)
9/16”
(1.4 cm)
6 5/8”
(16.8 cm)
5/16”
0.79 cm)
7 ¼ ”
(18.4 cm)
7 ½ ”
(19 cm)
1 5/8 ”
(4.2 cm)
Mounting Holes (x4)
SD Card
Slot
Front
Cover
