The FLEXnet DC Battery Monitor offers the ability to both upload and save a data log or to erase a data log.
Saving Data Logs for the FLEXnet (FN) Battery Monitor

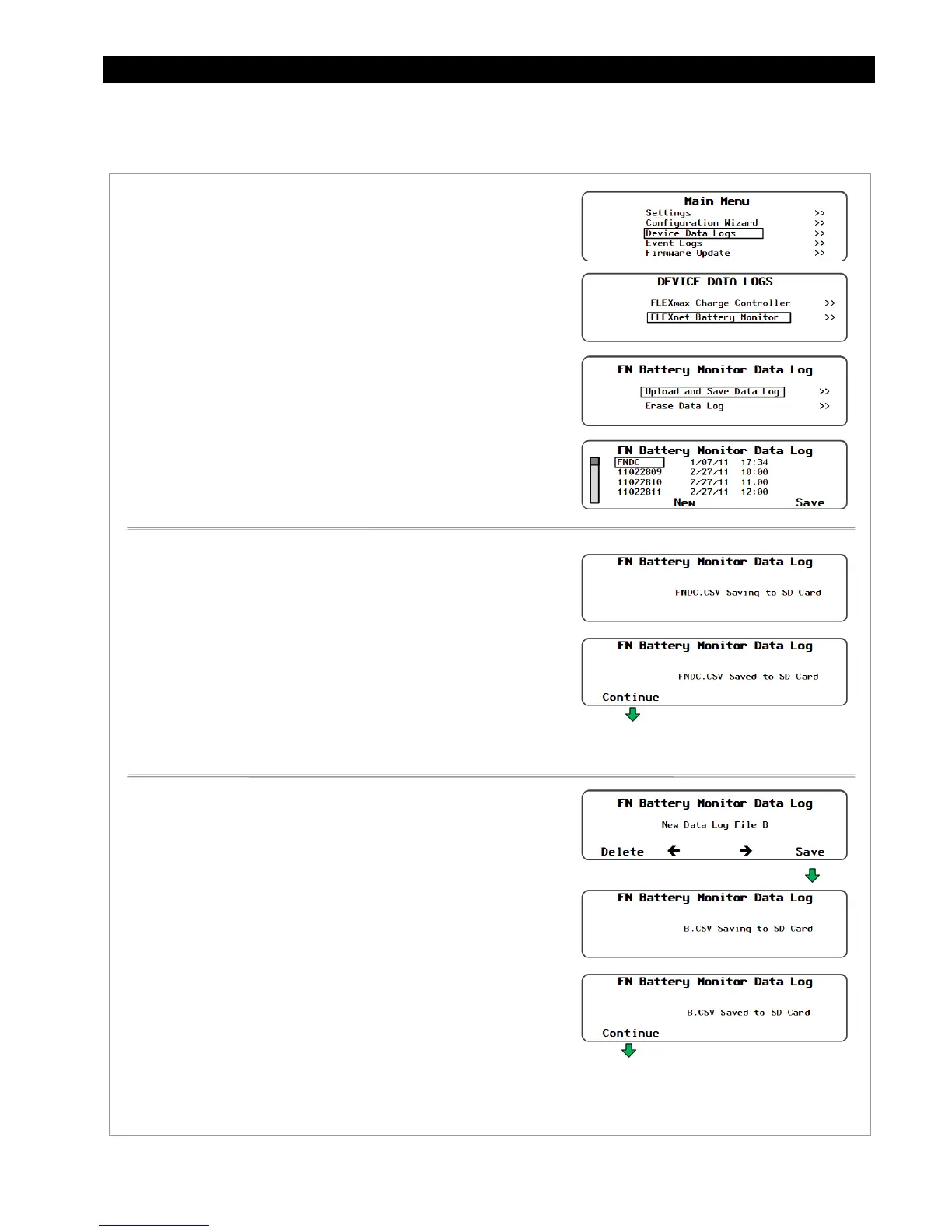

Figure 154 Uploading and Saving a Data Log for the FLEXnet DC Battery Monitor
To create a Data Log for the FN Battery Monitor:
1. Access the
Main Menu
as shown in Figure 71.
2. Select the
Device Data Logs
menu.
3. Select
FLEXnet Battery Monitor
menu.
4. Select
Upload and Save Data Log
on the
FN Battery
Monitor Data Log
menu. The system will display a list of all
the data logs that have been recorded.
5. Select one of the two options.
Press the <New> soft key to give the new data log a
unique name. Or
Press the <Save> soft key to save the data log over the
name that is highlighted on the list.
6. After saving the data log is complete, press <Continue> to
return to the
Upload and Save Data Log
screen.
To save a new data log over the name highlighted on the list:
1. Use the control wheel to scroll through the list.
2. When the name to be replaced is highlighted, press <Save>.
3. Wait for the message confirming that the profile has been
saved to the SD card.
4. Press <Continue> to return to the
Upload and Save Data
Log
menu.
To create a new name for the data log (up to 8 characters
maximum):
1. Use the control wheel to scroll through the available
characters.
2. Use <> and <> to move to the next character location.
3. Press <Delete> to erase the character that is highlighted.
4. Press <Save> to save the new data log on the SD card.
4. Press <Continue> to return to the
Upload and Save Data
Log
menu.
Returns to the
Upload and
Save Data Log
screen.
Returns to the
Upload and
Save Data Log
screen.
See the sample data log on page 130.
