Operation
46 900-0117-01-00 Rev B
Battery Soft Key

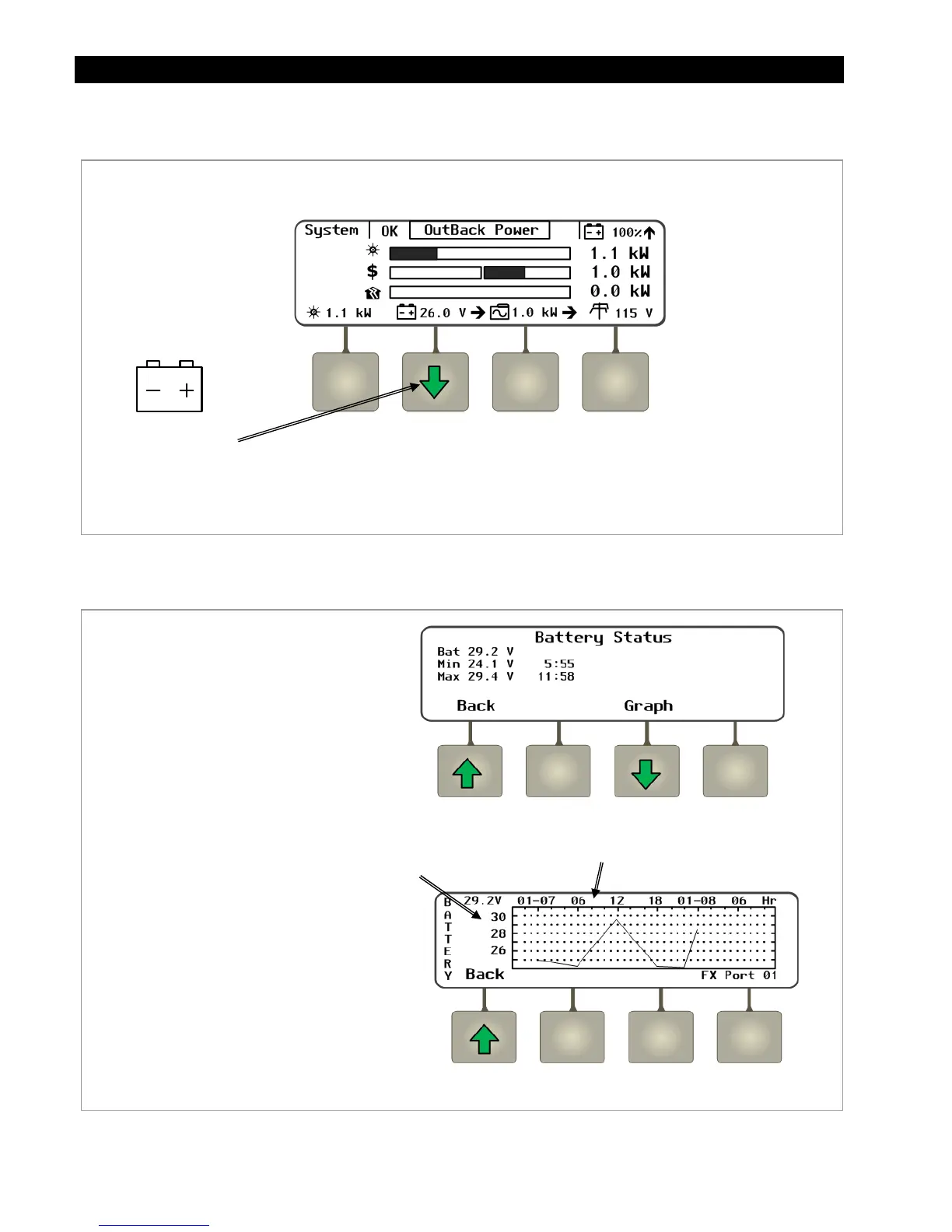

Figure 37 Battery Soft Key
If no FLEXnet DC battery monitor is present on the system, the battery soft key brings up the
following screens.
Figure 38 Battery Soft Key Screens (without a FLEXnet DC Monitor)
Home Screen
Battery Soft Key
Press this soft key to
view
Battery Status
information.
Screen Items:
Bat
displays the uncompensated
battery voltage.
Min
displays the lowest recorded
battery voltage for that day, and the
time it was recorded.
Max
displays the highest recorded
battery voltage for that day, and the
time it was recorded.
Soft Keys:
<Graph> brings up a single graph
showing changes in battery voltage over
time. This graph may be used by other
soft keys.
<Back> returns to the previous screen.
This axis shows
battery voltage.
This axis shows date and time in 6-hour increments.
