Introduction
12 900-0117-01-00 Rev B

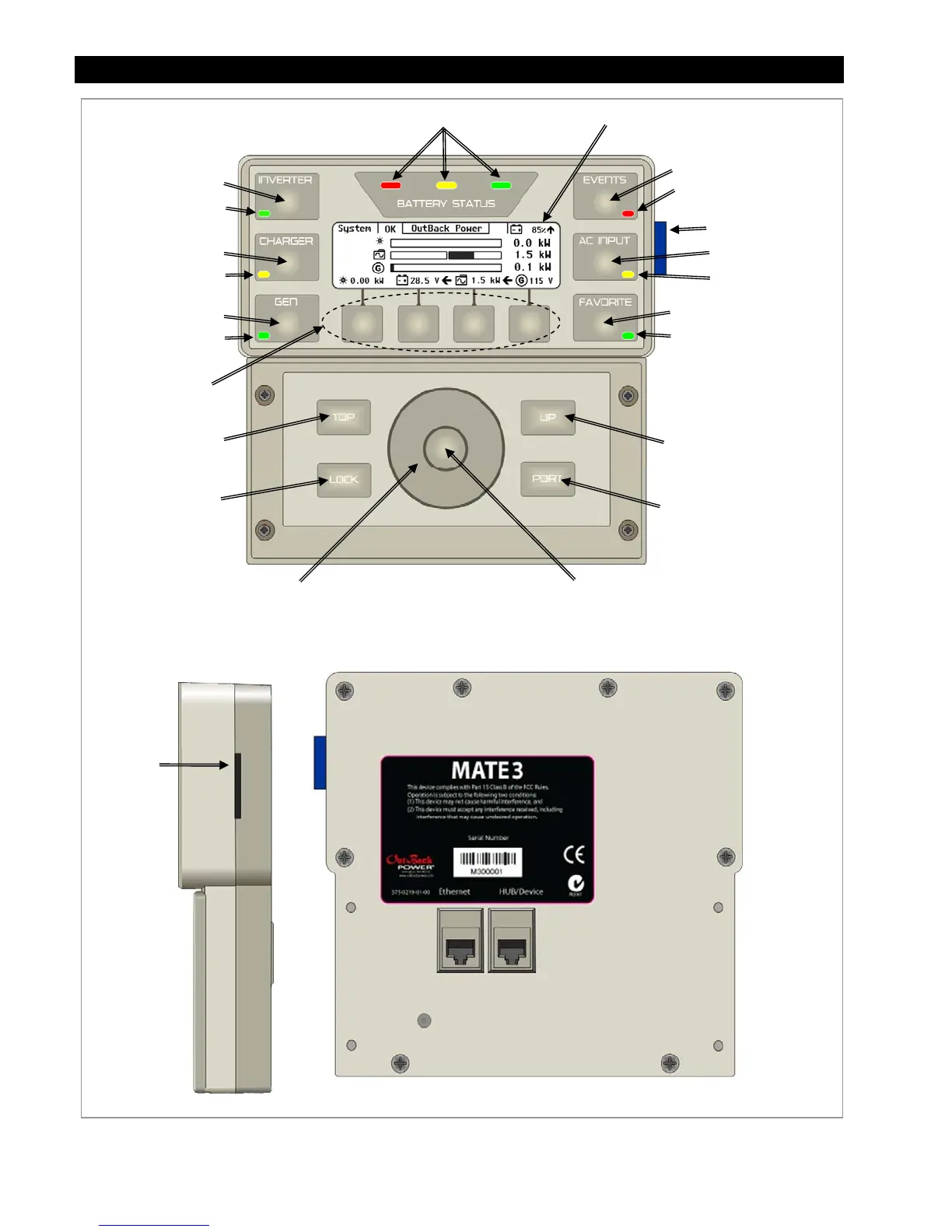

Figure 1 MATE3 Features
INVERTER Hot Key
Inverter Status LED (Green)
EVENTS Hot Key
Event LED (Red)
A
C INPUT Hot Key
AC Status LED (Yellow)
FAVORITE Hot Key
Favorite Status LED (Green)
Battery Status LEDs (x3)
LCD Screen
Soft Keys (x4)
PORT Navigation Key
UP Navigation Key
LOCK Key
TOP Navigation
Key
Control Wheel
Center Button
CHARGER Hot Key
Charger Status LED (Yellow)
SD
Memory
Card Slot
SD Memory Card
Back Vie
w
Side Vie
w
GEN(erator) Hot Key
GEN Status LED (Green)
HUB or OutBack
Device
Ethernet Port
