OutBack Power MATE3 User Manual

Programming
120 900-0117-01-00 Rev B

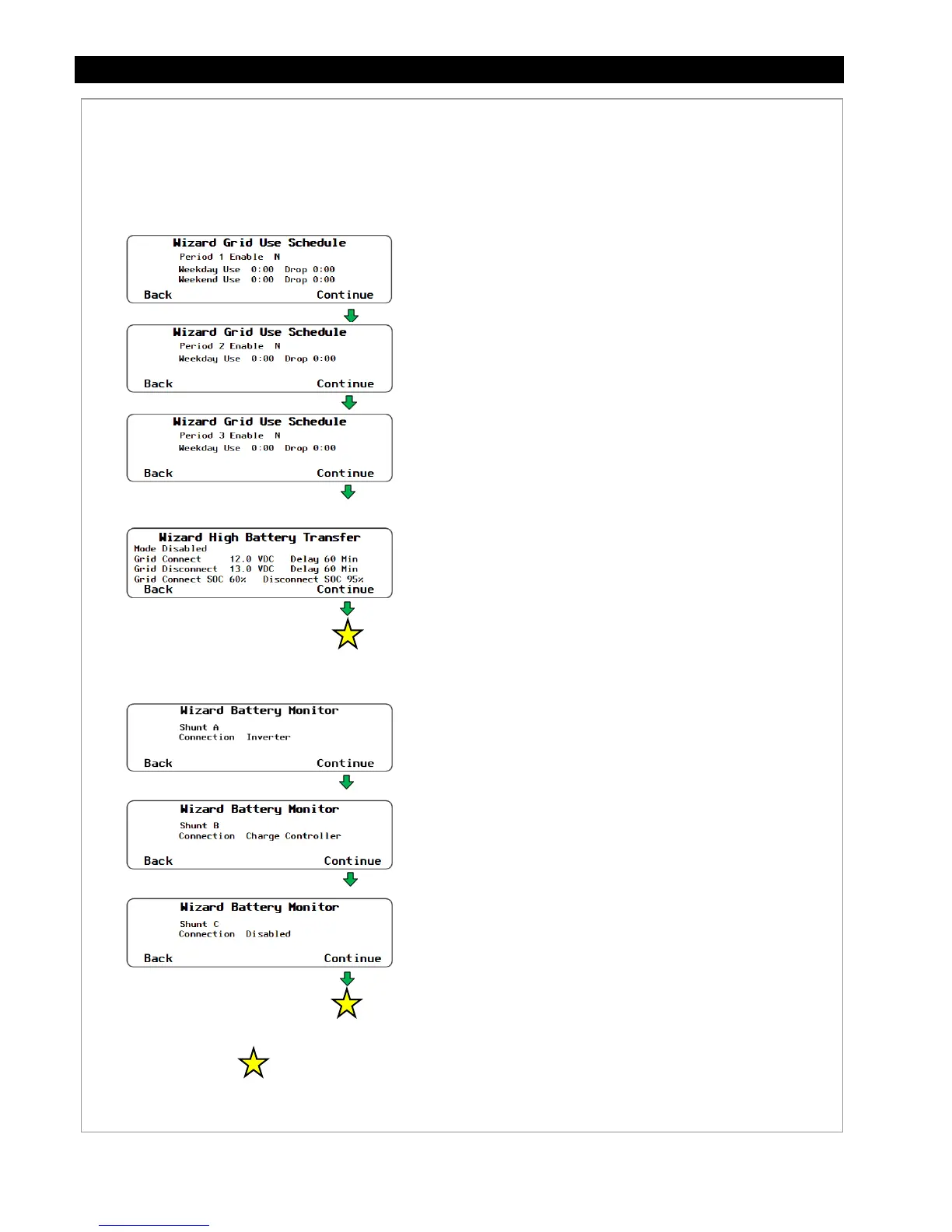

Figure 147 Creating New Configurations using the Configuration Wizard (continued)
Set Points:
Wizard Grid Use Schedule (see page 116):

Period 1 Enable - N or Y
 Weekday Use - 0:00 Drop 0:00
 Weekend Use - 0:00 Drop 0:00
 Period 2 Enable - N or Y
 Weekday Use - 0:00 Drop 0:00
 Weekend Use - 0:00 Drop 0:00
 Period 3 Enable - N or Y
 Weekday Use - 0:00 Drop 0:00
 Weekend Use - 0:00 Drop 0:00
Wizard High Battery Transfer (See pages 112and 115):

Mode – Y or N

Grid Connect - xx.x VDC Delay xx min

Grid Disconnect - xx.x VDC Delay xx min
 Grid Connect SOC xx% Disconnect SOC xx%
Wizard Battery Monitor (See page 102):
(These screens will only be available if a FLEXnet DC Battery
Monitor is installed in the system.)
Shunt A:
 Connection - Disabled, Inverter, Charge
Controller, DC Load, DC Gen, Wind Turbine, Hydro
Shunt B:
 Connection - Disabled, Inverter, Charge
Controller, DC Load, DC Gen, Wind Turbine, Hydro
Shunt C:
 Connection - Disabled, Inverter, Charge
Controller, DC Load, DC Gen, Wind Turbine, Hydro
...continued from previous page.
Soft Keys:
<Back> moves back one screen.
<Continue> moves forward to the next screen.
Pressing <Continue> from the last setup screen takes the user to the
Setup Complete screen. See Figure 151 to apply the changes to the system.
