OutBack Power MATE3 User Manual

Operation
900-0117-01-00 Rev B 41
From the
Inverter
screen, the
<Next>
soft key brings up the
Inverter Battery
screen.

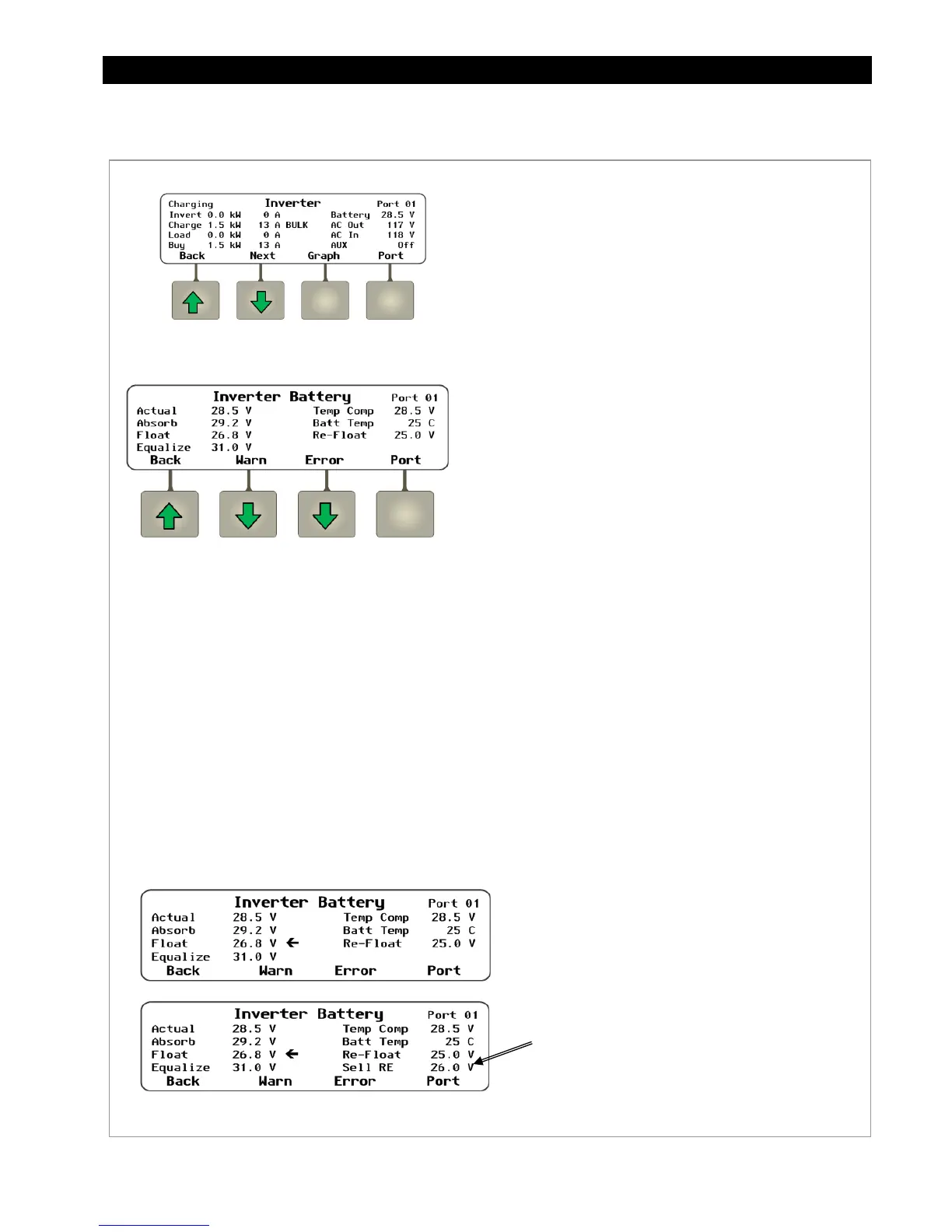

Figure 29 Inverter Battery Screen
Soft Keys:
<Warn> brings up a series of screens
with a list of non-critical inverter faults
and other information. These screens
are shown beginning on page 42.
<Error> brings up a screen with a list of
critical inverter faults. These screens are
shown beginning on page 43.
<Back> returns to the previous screen.
<Port> cycles through each device
connected to the network.
Inverter Screen
Inverter Battery Screen
Screen Items:
Actual displays the uncompensated battery voltage.
Absorb displays the Absorption voltage setting which was
programmed into the inverter’s charger. During the bulk and
absorption stages, this is the target voltage used by the charger.
Float displays the Float voltage setting which was programmed
into the inverter’s charger. During the float stage, this is the
target voltage used by the charger.
Equalize displays the Equalization voltage setting which was
programmed into the inverter’s charger. During the equalization
charging cycle, this is the target voltage used by the charger.
Temp Comp displays the corrected battery voltage after
temperature readings are taken into account from the Remote
Temperature Sensor (RTS). If no RTS is present, Temp Comp and
Actual will read the same.
Batt Temp displays the battery temperature in degrees Celsius,
as measured by the RTS. This reading is only valid for port 1 on
the HUB. If other ports are selected, or if no RTS is present, the
characters ### will be displayed.
Re-Float displays the Re-Float setting which was programmed
into the inverter’s charger. This is the voltage used for the
inverter to return from Silent mode to the float stage.
Sell RE voltage is the target voltage for the inverter to switch to
Sell Mode. (Grid-Tie system types only)
NOTE: If an arrow appears next to the items
Absorb , Float , or Equalize , it indicates the
charger is in that stage. The arrow will not
appear if the charger is in the bulk stage or
Silent mode.
NOTE: In Grid Tie system types, the
Sell RE voltage will be included.
