14 EVO Installation Guide
2.4 Mounting the EVO192 Controller, HUB2, ZX8, IP150
2.4.1 Tamper Switch
1. Insert the tamper kit TK278 into the slot in the box.
2. Mark the hole.
3. Drill the hole in the switch bracket.
4. Using a metal washer screw the switch bracket to the wall (you may need an anchor).
5. Wire one of the switch wires to one of the on board zone inputs and the other to COM.
6. Configure this zone to a 24h burglary zone.
7. Screw the cabinet to the wall using the proper screws (and anchors if required). Make sure the Anti-tamper
switch is installed before you screw the cabinet to the wall.

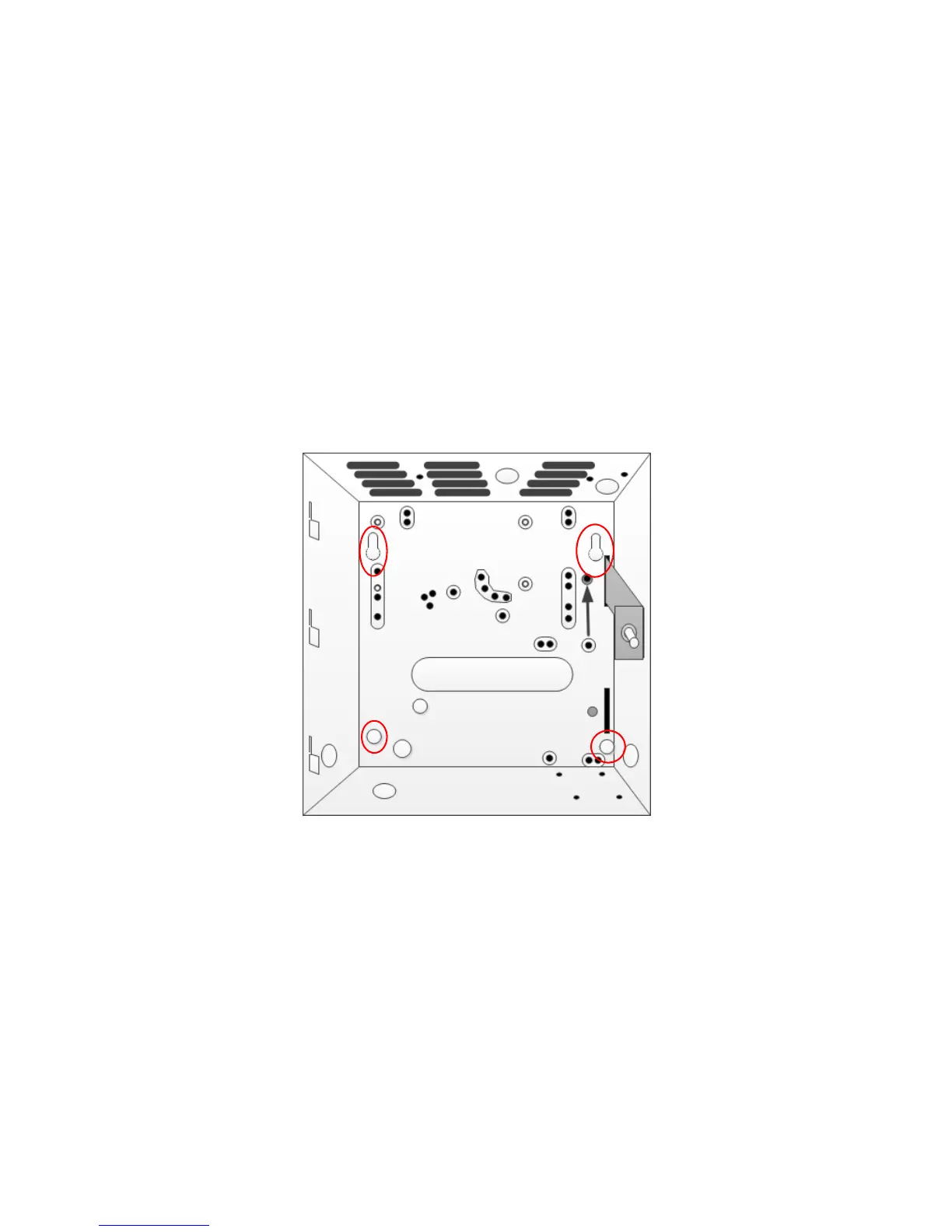

Figure 1 – Screw holes for Mounting Cabinet on the Wall
