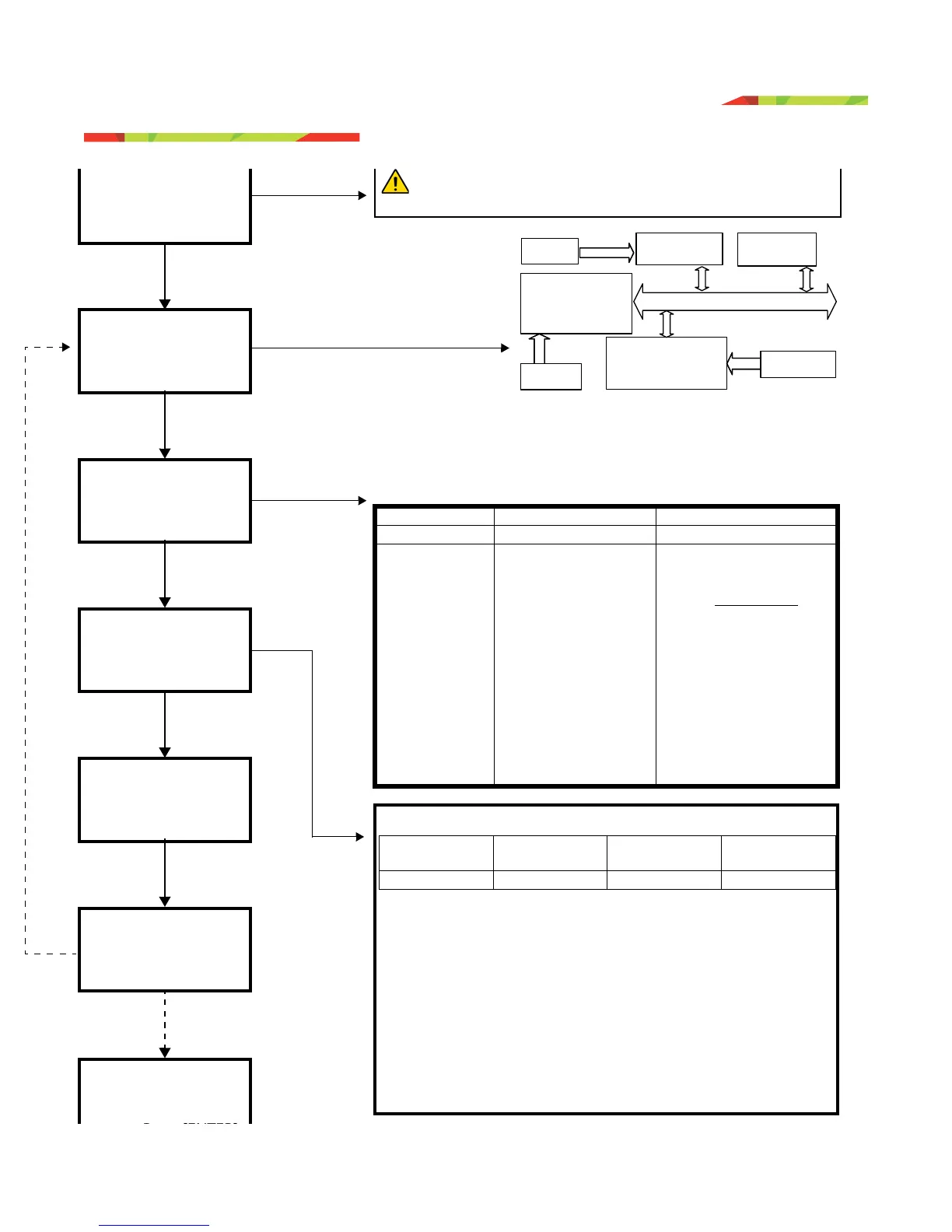

Enter Section [0400],
then enter the
Enter the zone’s 8-
digit serial and 3-digit
input number (The
input number is not
Enter the zone’s
parameters
Enter the zone’s
report codes
Enter the zone’s label
Press [ENTER] to save
and go to the next
Pressing [CLEAR]
twice will exit the
zone programming
P[ENTER]
Zone Definition Partition Zone Option
_____ _____ 1 2 3 4 5 6 7 8
0 - Disabled (default)
1 - Entry Delay 1
2 - Entry Delay 2
3 - Follow
4 - Instant
5 - 24Hr Buzzer
6 - 24Hr Burglary
7 - 24Hr Hold-up
8 - 24Hr Gas
9 - 24Hr Heat
A - 24Hr Water
B - 24Hr Freeze
C - Delayed 24Hr Fire
D - Standard 24Hr
Fire
E - Stay Delay 1
F - Stay Delay 2
1 - Assigned to Partition 1
(default)
2 - Assigned to Partition 2
3 - Assigned to Partition 3
4 - Assigned to Partition 4
5 - Assigned to Partition 5
6 - Assigned to Partition 6
7 - Assigned to Partition 7
8 - Assigned to Partition 8
[1] Auto Zone Shutdown Enabled
[2] Bypass Enabled (default)
[3] Stay Zone
[4] Force Zone
[5] [6] Zone Alarm Type
off off Steady Alarm
off on Pulsed Alarm
on off Silent Alarm
on on Report Only
[7] Intellizone
[8] Delay before Transmission
.
Ademco slow, Silent Knight fast, SESCOA, Ademco express or
Pager formats:
Key-in desired 2-digit hex values from 00 to FF.
Ademco format:
Use section [4032] to program a set of default Ademco report
codes from the Auto Report Code Programming on page 77.
Then to program the remaining report codes or to change some
Alarm Report Code
Alarm Restore
Report Code
Tamper Report Code
Tamper Restore
Report Code
__ / __ __ / __ __ / __ __ / __
In any Zone Programming option, pressing [ACC] will save
the data and go to the next zone on the same option
