EVO Installation Guide 35
The keypads must be assigned to the same partition as the Delayed 24Hr Fire zone for the buzzer to
activate.
* UL Warning: For UL/ULC installations, a Fire zone cannot be bypassed and its alarm type must be Pulsed
(audible).
4.4.13 Standard 24Hr Fire Zone
SECTION [0400]: FIRST DIGIT = D
S
ECTIONS [0101] TO [0196]: FIRST DIGIT = D
A zone programmed as Fire becomes normally open and requires an EOL resistor. When a Standard 24Hr Fire
Zone triggers, the control panel can:
•send a Zone Alarm report code.
•send a Fire Loop Trouble Report if a tamper/wiring fault occurs on a Fire Zone. A “Zone Fault Trouble” will
also appear in the keypad's Trouble Display.
• generate a Fire alarm, which can be silent, pulsed, steady or report only. Fire alarms generate an intermittent
signal (see Figure 13).
• Need to instruct how to install the Tamper – set it to 24hr Zone
Note: Set the tamper to a 24hr Zone
* UL Warning: For UL/ULC installations, a Fire Zone cannot be bypassed and its alarm type must be Pulsed (audible).

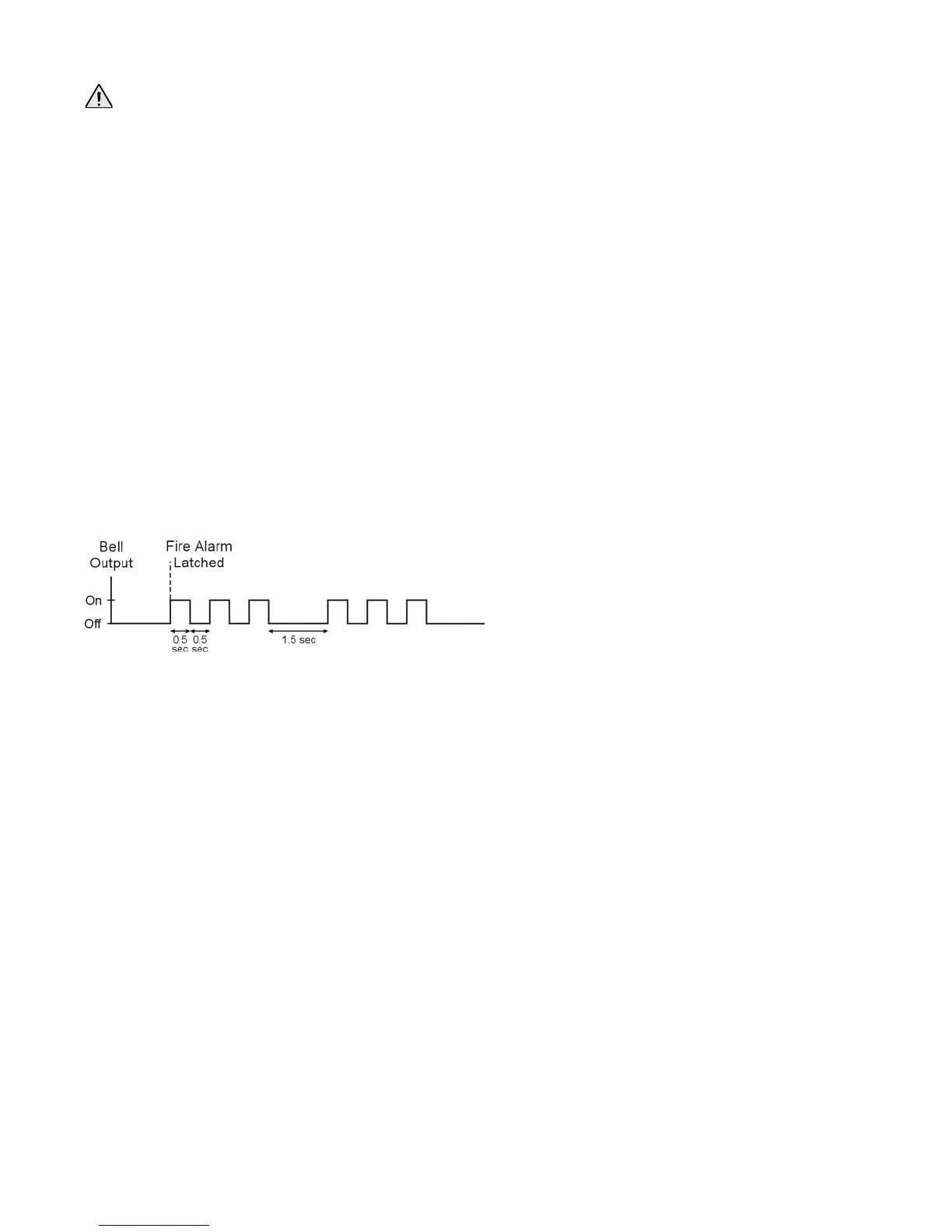

Figure 13: Bell/Siren Output During Fire Alarm
4.4.14 Stay Delay Zone
SECTION [0400]: FIRST DIGIT = E AND F
S
ECTIONS [0101] TO [0196]: FIRST DIGIT = E AND F
Using the Regular or Force arming methods, the control panel processes the zone as an Instant zone. Using the
Stay or Instant arming methods and the zone is triggered, the control panel will not generate an alarm until the
programmed Stay Delay elapses. A zone defined as Stay Delay 1 follows the Entry Delay 1 Timer of its assigned
partition. A zone defined as Stay Delay 2 follows the Entry Delay 2. To program the Entry Delay Timers.
4.5 Zone Partition Assignment
SECTION [0400]: SECOND DIGIT = 1 TO 8
S
ECTIONS [0101] TO [0196]: SECOND DIGIT = 1 TO 8
Assign zones to one partition.
4.6 Zone Options
The zone options from are described below. Refer to the EVO programming guide for additional information on
Zone Programming.
4.6.1 Auto Zone Shutdown
SECTION [0400]: OPTION [1]
S
ECTIONS [0101] TO [0196]: OPTION [1]
(default = 000) When enabled, the control panel will stop generating alarms once the Auto Zone Shutdown Limit is reached. It resets every time
the partition that is assigned to the corresponding zone is armed. To program the Auto Zone Shutdown Limit, enter the desired 3-digit counter
(000 to 015) into section corresponding to the desired partition (000 = disabled):
