52 EVO Installation Guide

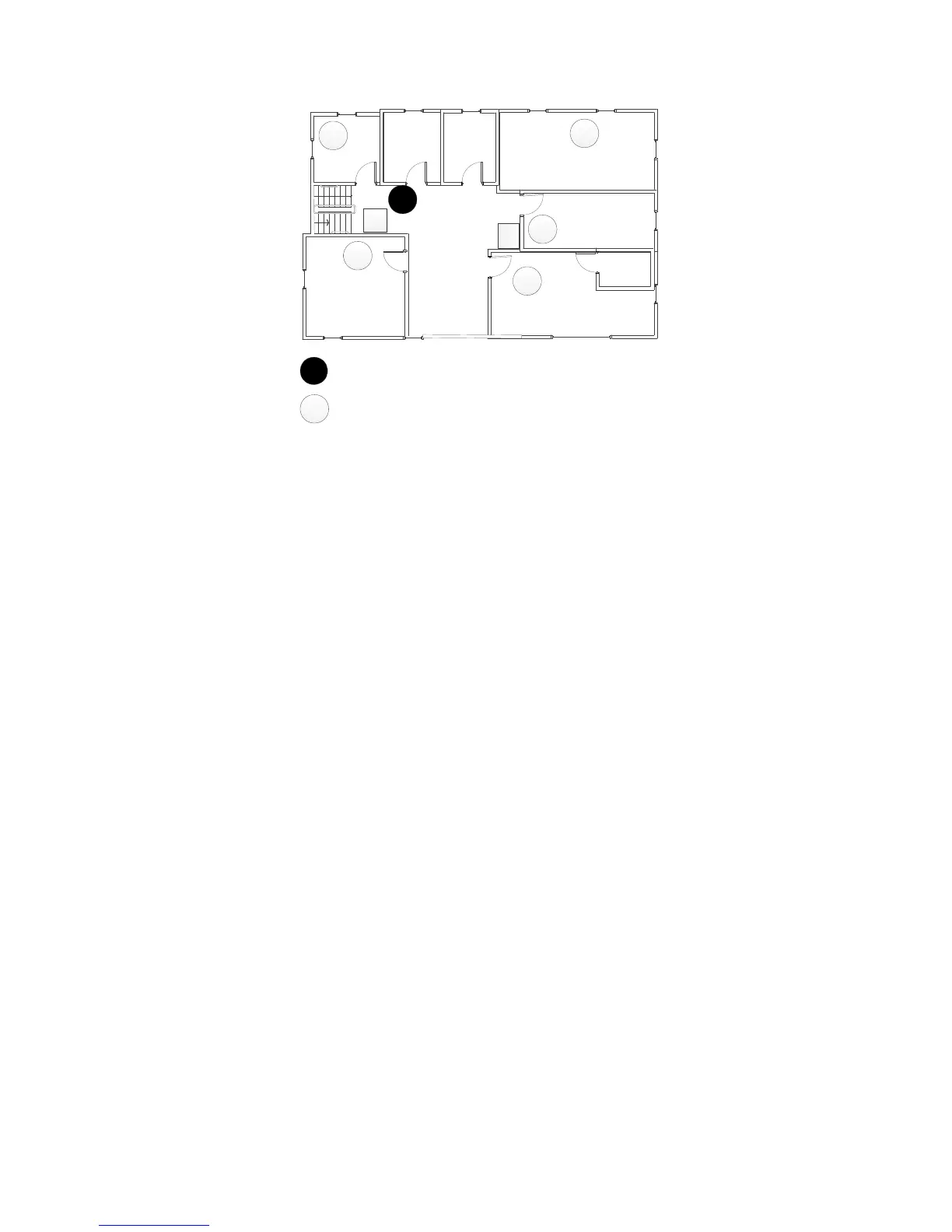

Figure 18 – Typical 2nd Floor Installation
The EVO192 is equipped with protective features such as fuses, MOVs, PTC etc. Removal, damage to or
bypassing any of these features may result in injury and/or damage to the EVO192 system.
Bypassing the tamper and anti mask features will result in reduced effectiveness of your security system.
Note: The phone line between the protected property and the communications service provider shall be for
the exclusive use of the protected property and is not to be shared with other communications service
provider subscribers.
Note: Do NOT program this system or any of its modules to automatically place a call to a police station
number that has not been specifically assigned by that police station for such a service.
Up
Bedroom
Master bedroom
Bedroom
Bedroom
Toilet
Bedroom
Smoke
Smoke
NV5
Toilet
Toilet
Laundry Area
Smoke
Smoke
Smoke
Smoke
SR130
Smoke
Smoke
Required
Recommended
To Next Page
