Operation Guide 500ML Lighting Control Console
26 BASIC CONCEPTS
Each of the button contains a different predefined View:
1 - Quad Mixed Button
The Quad Mixed View contains a Fixture, Group, Preset and Cuelist Pool. The Type of the Preset Pool may be set
using the buttons provided in the Pools Toolbar.

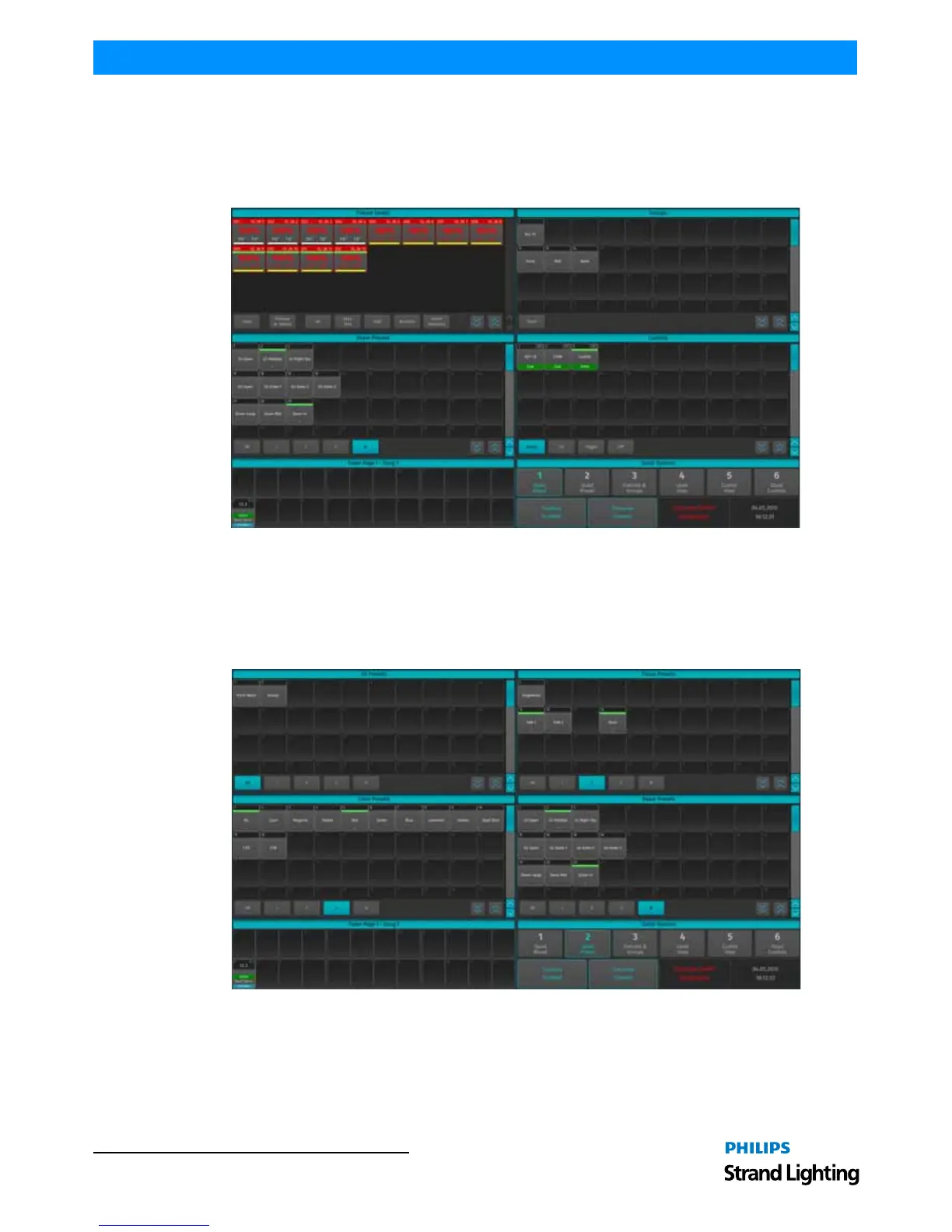

Figure 30: Quad Mixed Screen
2 - Quad Preset Button
The Quad Preset View contains four Preset Pools. The Types of the Preset Pool are predefined as Intensity, Focus,
Color and beam but may be changed using the buttons provided in each Pools Toolbar.
Figure 31: Quad Preset Screen
