LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Disassembling the Case
Section Menu Section Contents Procedures Back Index
182
8
6. Lay the defibrillator face-down on a protective surface to
prevent damage, and then remove the 14 case screws
(201407-069). Discard the screws.
7. Holding the case halves together, position the device face-up
on your work surface. Lift the front case assembly slightly
above the rear to access the connecting cables.
DANGER
SHOCK HAZARD Lethal voltages may be present even without
operator action. Always discharge the energy storage capacitor prior to
servicing. See the service manual “Capacitor Discharging Procedure
(p. 178)” for detailed instructions.

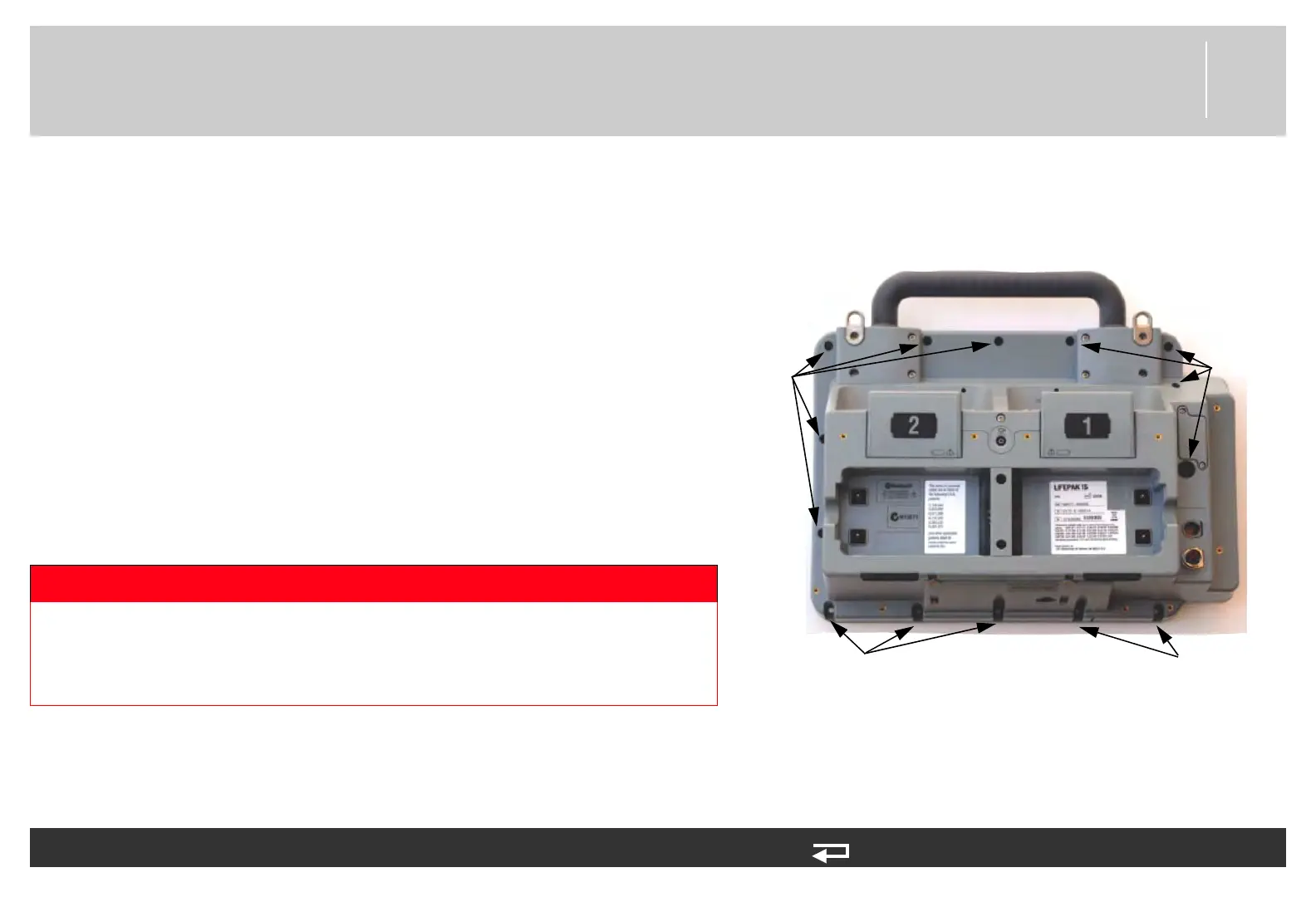

Figure 8.5—Screw locations
To disassemble the case halves: (Continued) 12 steps, (Page 2 of 3)
screw
locations
screw
locations
screw
locations
screw
locations
Remove 14 screws from
rear of case
