LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
NIBP (A21)/CO2 (A23) Module Replacement
Section Menu Section Contents Procedures Back Index
289
8
7. If present, disconnect the CO2 inlet tube. Lift the assembly as needed.
8. If present, disconnect the CO2 cable connector inlet cable connector
(W28) from CO2 adapter cable (W30).
9. If present, disconnect the NIBP inlet tube. Lift the assembly as needed.
10. Lift the mounting bracket and cover from the rear case.
To remove the NIBP and CO2 modules as a unit from the rear case: (Continued) 17 steps, (Page 2 of 4)
W28-W30
CO2 inlet cable
connector
CO2 inlet tube
CO2 hose from
module

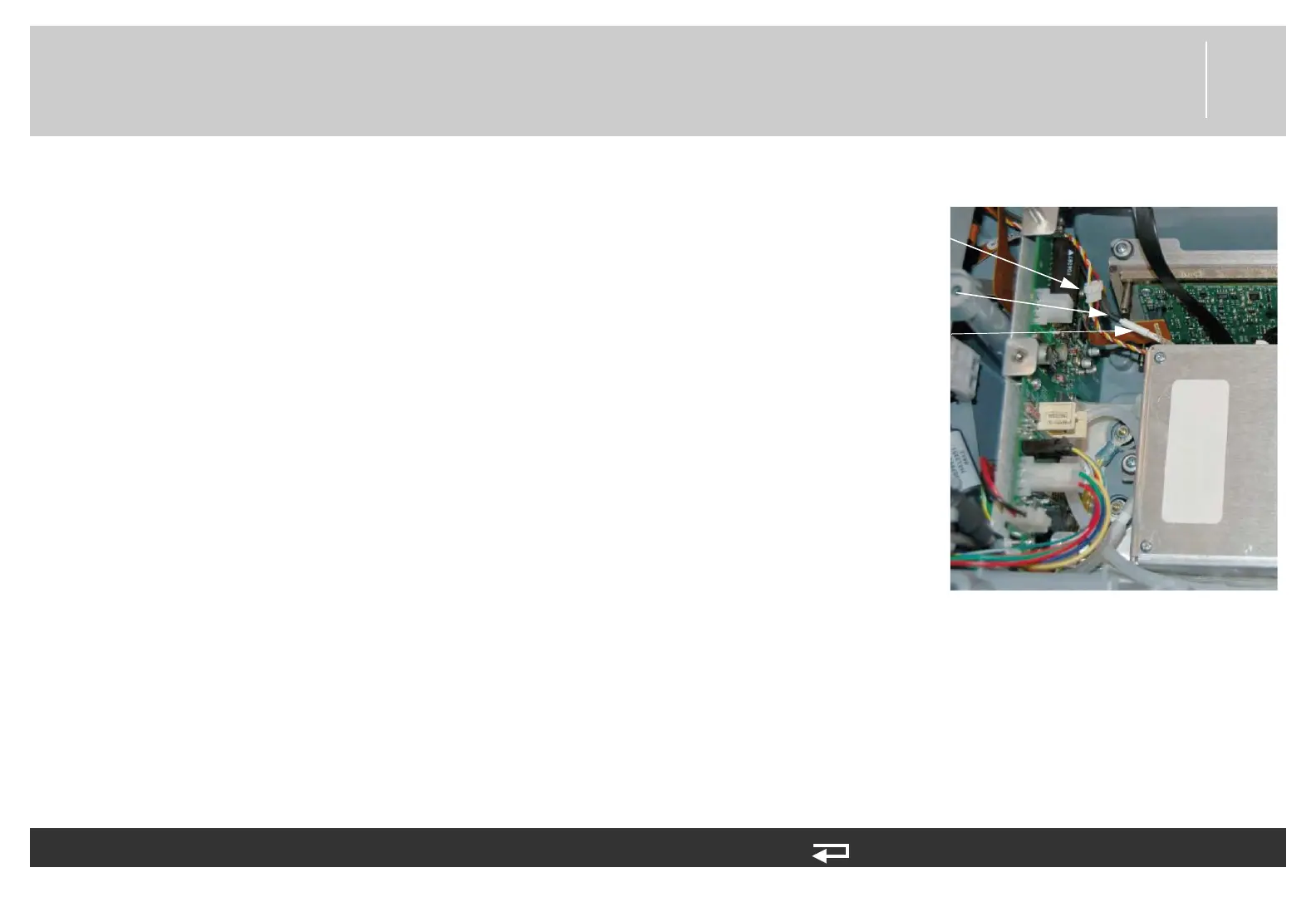

Figure 8.82—CO2 module connections
To Next Page
