LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Parameter Bezel Replacement
Section Menu Section Contents Procedures Back Index
310
8

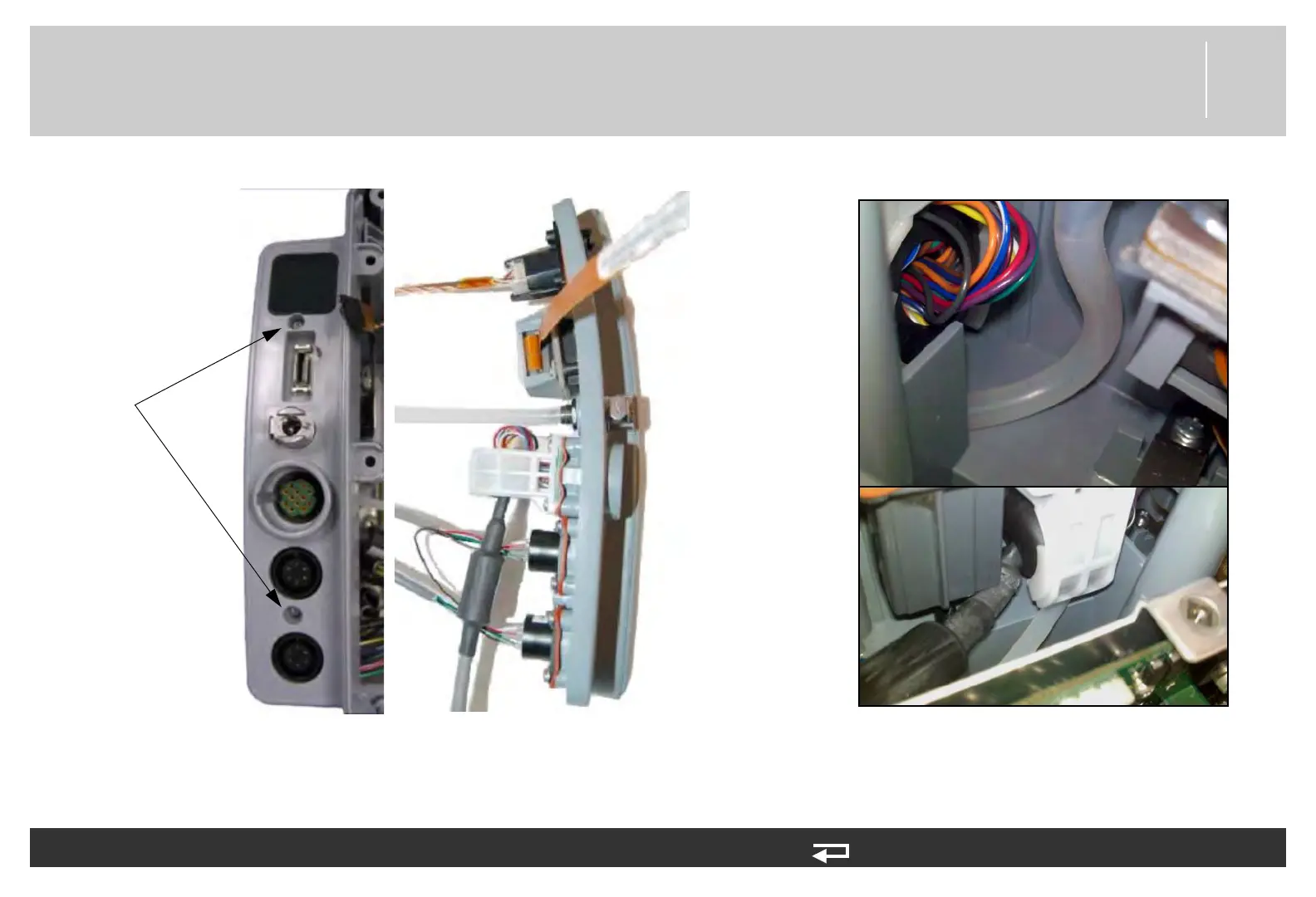

Figure 8.101—Parameter bezel component orientations
screw
locations
(2 places)
NIBP hose routing
(routed below ECG connector
brackets)
