Power/Therapy PCB Cable (W02) Replacement
Section Menu Section Contents Procedures Back Index
325
8
Removing the Power/Therapy PCB Cable (W02)
To remove the power/therapy PCB cable from the rear case:
1. Disassemble the case as described in Disassembling the Case (p. 181).
2. Remove the system/therapy PCB assembly as described in System (A01)/Therapy (A04)
PCB Assembly Replacement (p. 232).
3. For orientation, locate power PCB-J8 on the rear case diagram. (The therapy PCB-J20 end
of the power/therapy PCB cable was disconnected as part of step 2.)
4. Press the connector locking tab, and then disconnect the power/therapy PCB cable at J8.
Installing the Power/Therapy PCB Cable (W02)
To install the power/therapy PCB cable into the rear case:
1. Connect the power/therapy PCB cable (3009726-01) to the power PCB (A03) at J8.
2. Install the system/therapy PCB assembly as described in Installing the System (A01)/
Therapy (A04) PCB Assembly (p. 239).
3. Reassemble the case as described in Reassembling the Case (p. 184).
P08
P20
to Power PCB (A03)
to A04 Therapy PCB

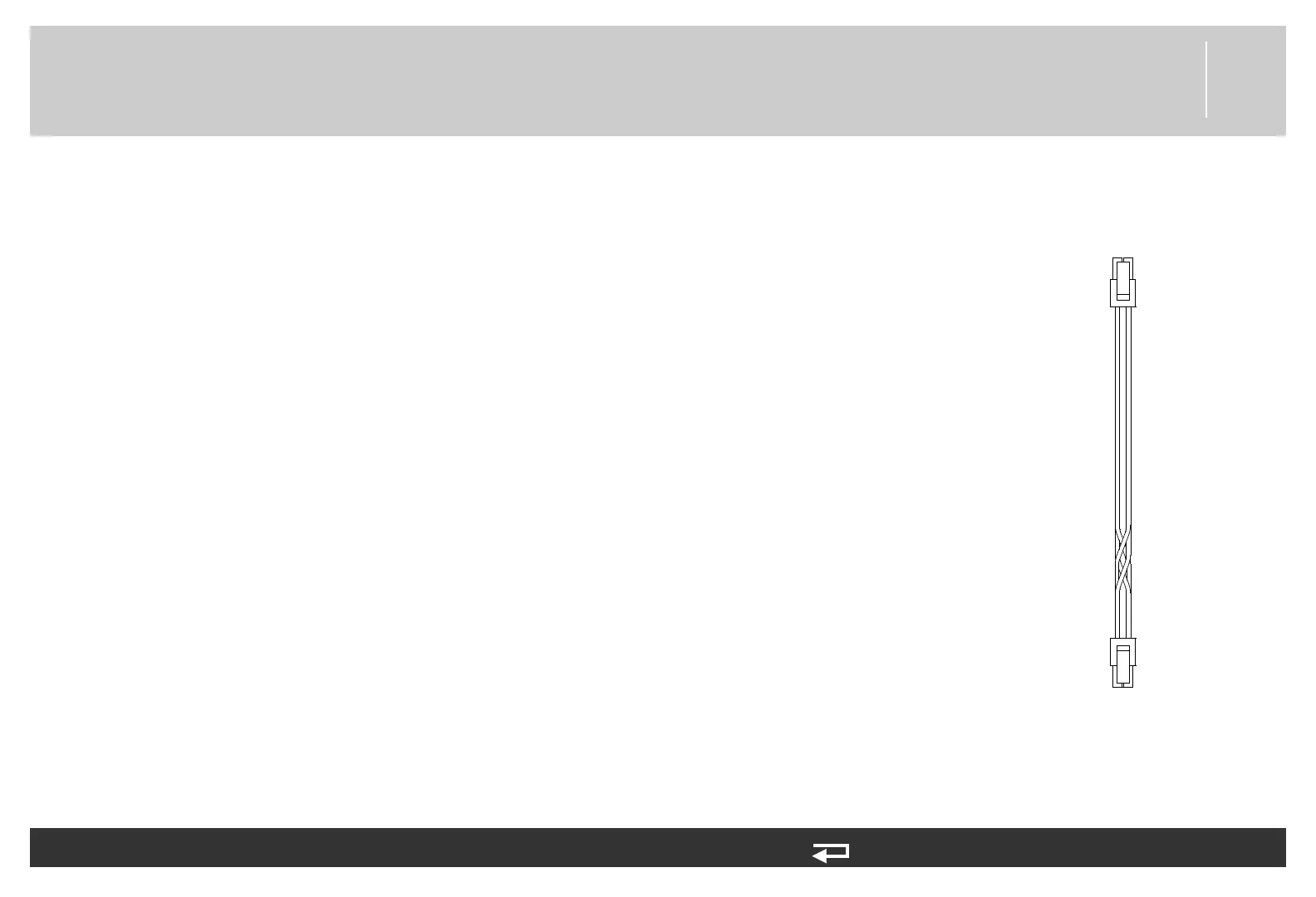

Figure 8.106—Power/therapy PCB
cable connections
