LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
459
9
Interconnect Bracket

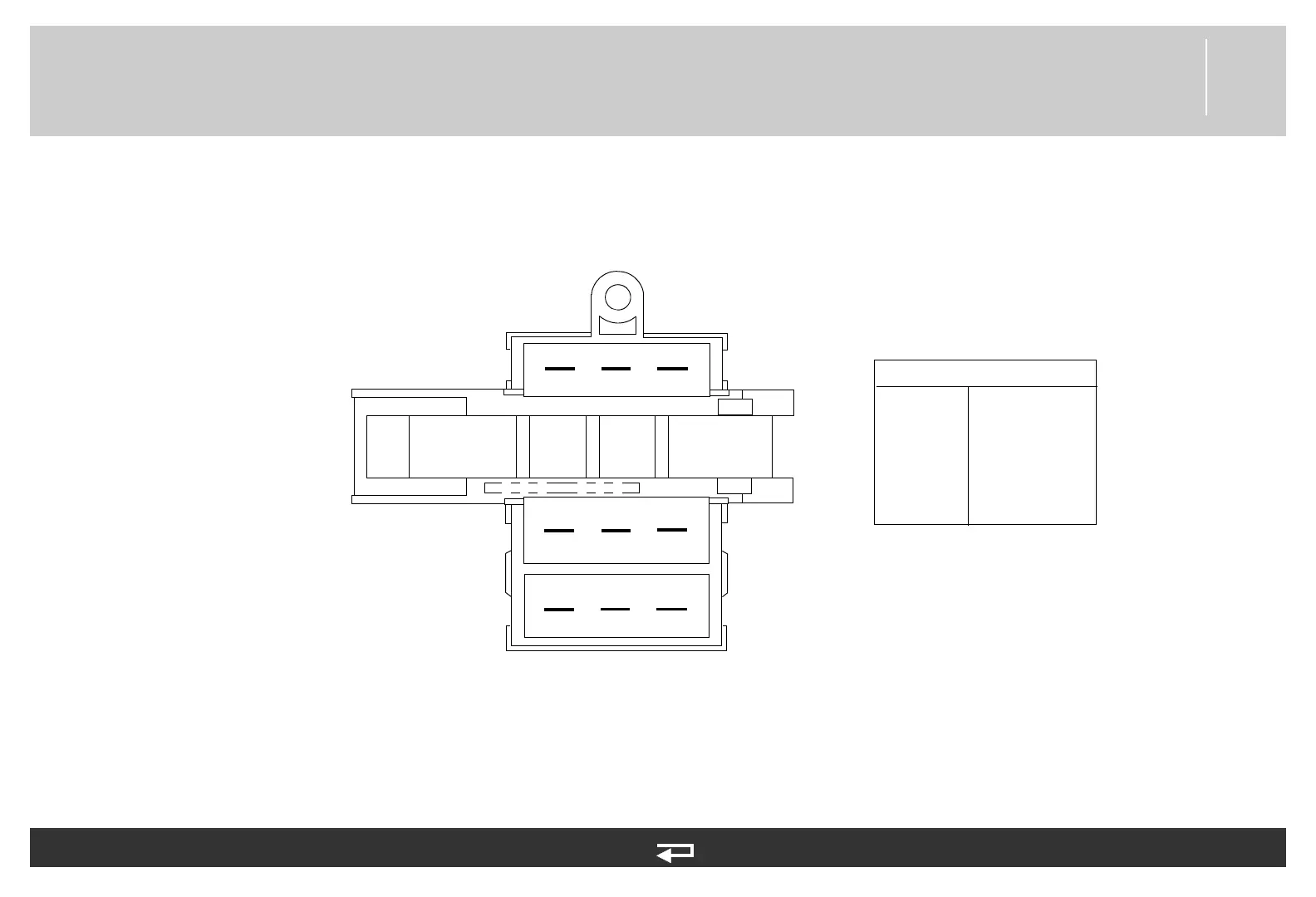

Figure 9.37—Diagram for item A17
123
4
7
5 6
89
Refer to Figure 9.18: Rear Case view 5 of 7, p. 404.
See MIN 3008897-002 in table for parts information.
Connection Chart
A17 -pin 1 Cap Neg (wht)
A17 -pin 3 BTE J101
A17 -pin 4 Cap Pos (red)
A17 -pin 6 BTE J105
A17 -pin 7 Relay pin 7
A17 -pin 9 BTE J103
