LIFEPAK 15 Monitor/Defibrillator
Service Manual
Device Description
System Context Diagrams
Section Menu Section Contents Back Index
71
3
Front of Device
The following diagrams illustrate how the device connects to external accessories.

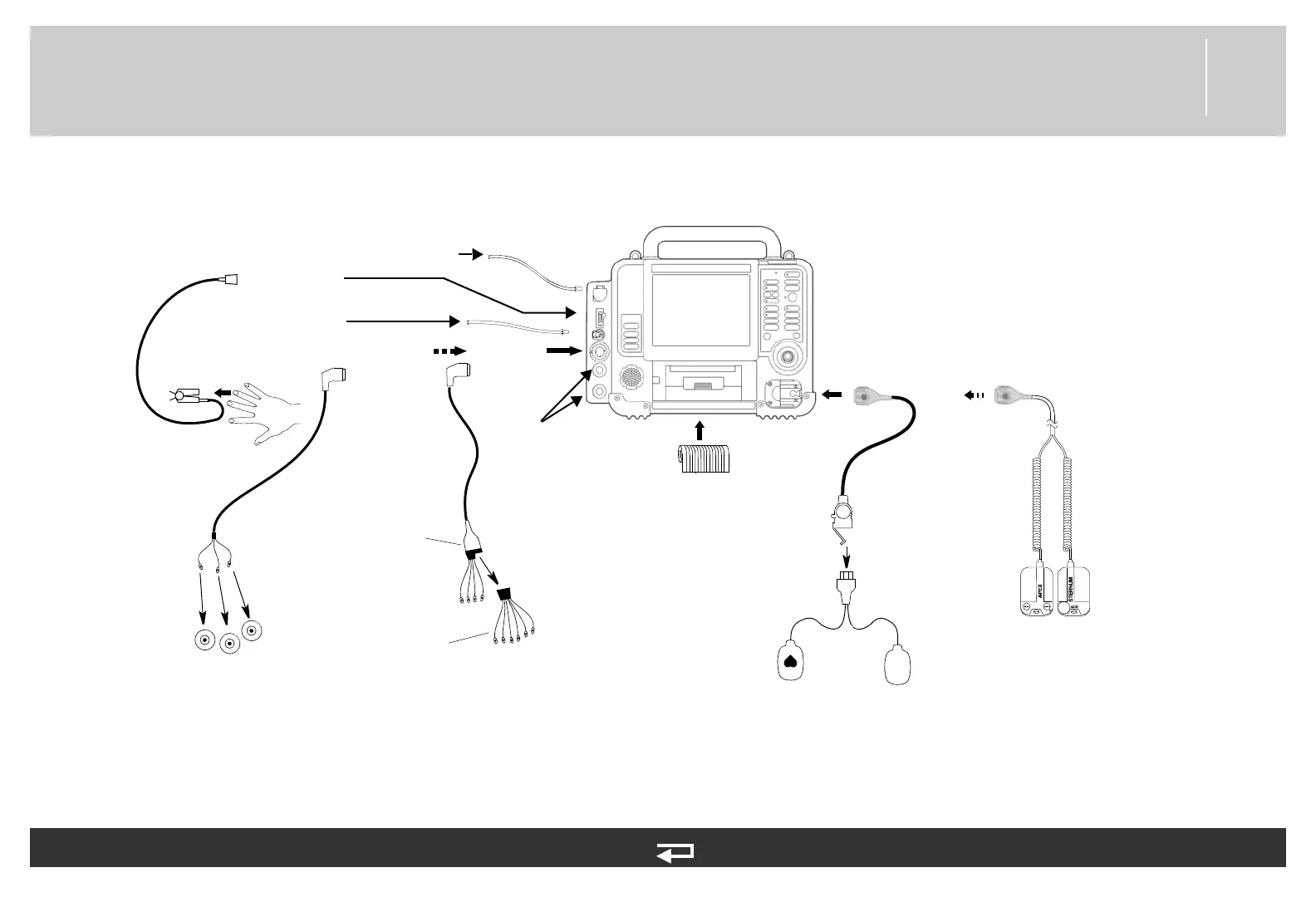

Figure 3.6—Device connections with external equipment and accessories
Invasive
Pressure (P1 & P2)
or Temperature (T1)
(see next page)
printer
paper
12-lead
ECG
cable
3-lead or 5-
wire
ECG cable
SpO2
cable
finger
sensor
main 4-wire
cable
precordial
lead
attachment
QUIK-COMBO
therapy cable
(QUIK-COMBO
electrodes)
hard paddles
CO2
tubing
NIBP
tubing
3-pack ECG
electrodes
