Pilz PMCprotego D.48 User Manual

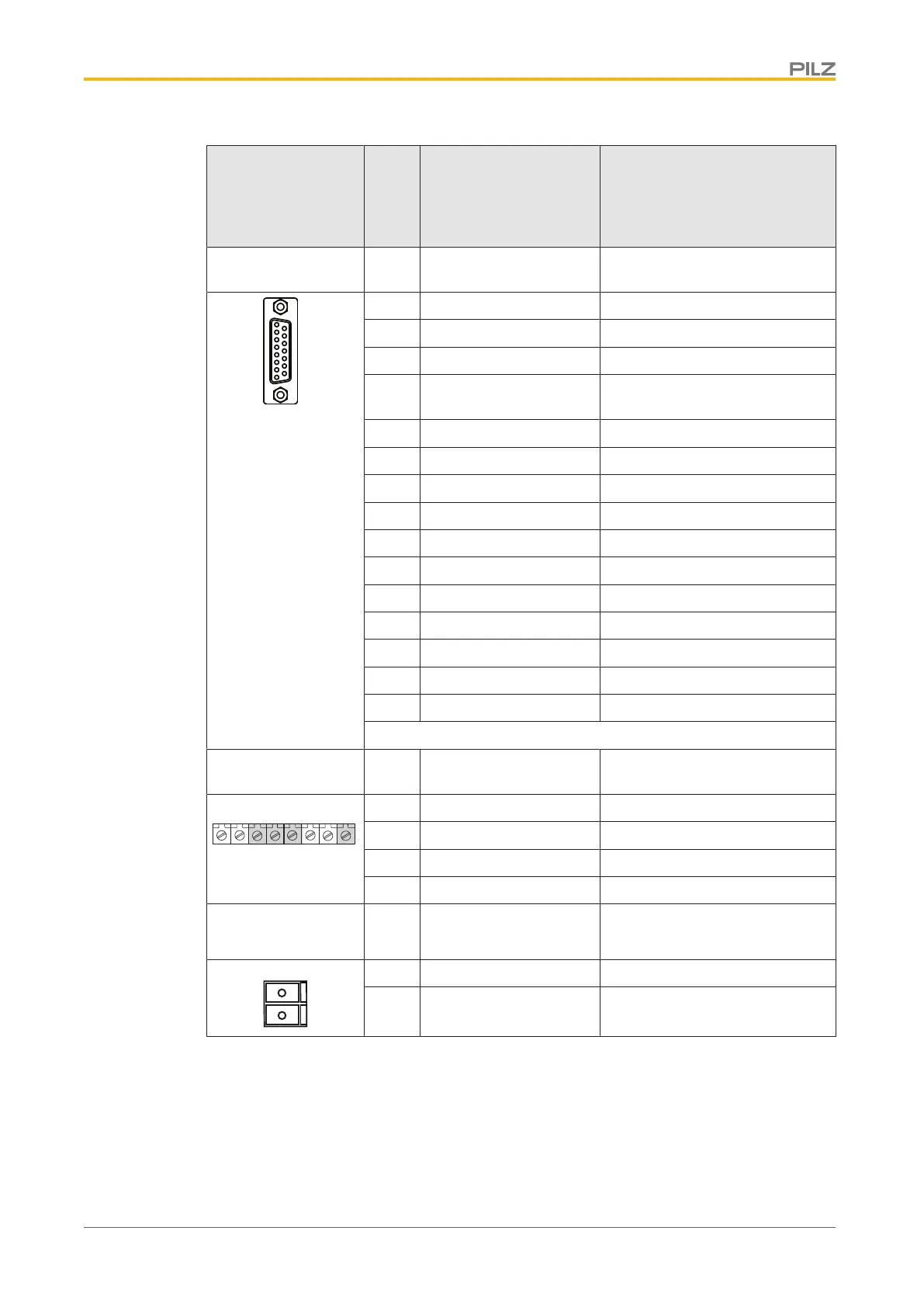

Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
127
One-cable connec-
tion
(Performance and
feedback) Pin Designation Description
Connector X1
Connection feedback
1
8
9
15
1 n.c. --
2 0 V Supply voltage 0 V
3 n.c. --
4 Up Supply voltage for encoder
7.5 - 11VDC
5 n.c. --
6 n.c. --
7 n.c. --
8 DSL+ DSL+
9 n.c. --
10 n.c. --
11 n.c. --
12 n.c. --
13 n.c. --
14 n.c. --
15 DSL- DSL-
n.c.: Not connected
Connector X8
Connection power
X8
-RB U2W2 V2+RB -DC +DC PE
W2 W2 Motor connection phase W
V2 V2 Motor connection phase V
U2 U2 Motor connection phase U
PE PE Earth conductor
Connector X9A
Connection brake
X9A
BR-
BR+
1
2
1 BR+ Brake+
2 BR- Brake
