User’s Manual of WGSD-10020 Series
123

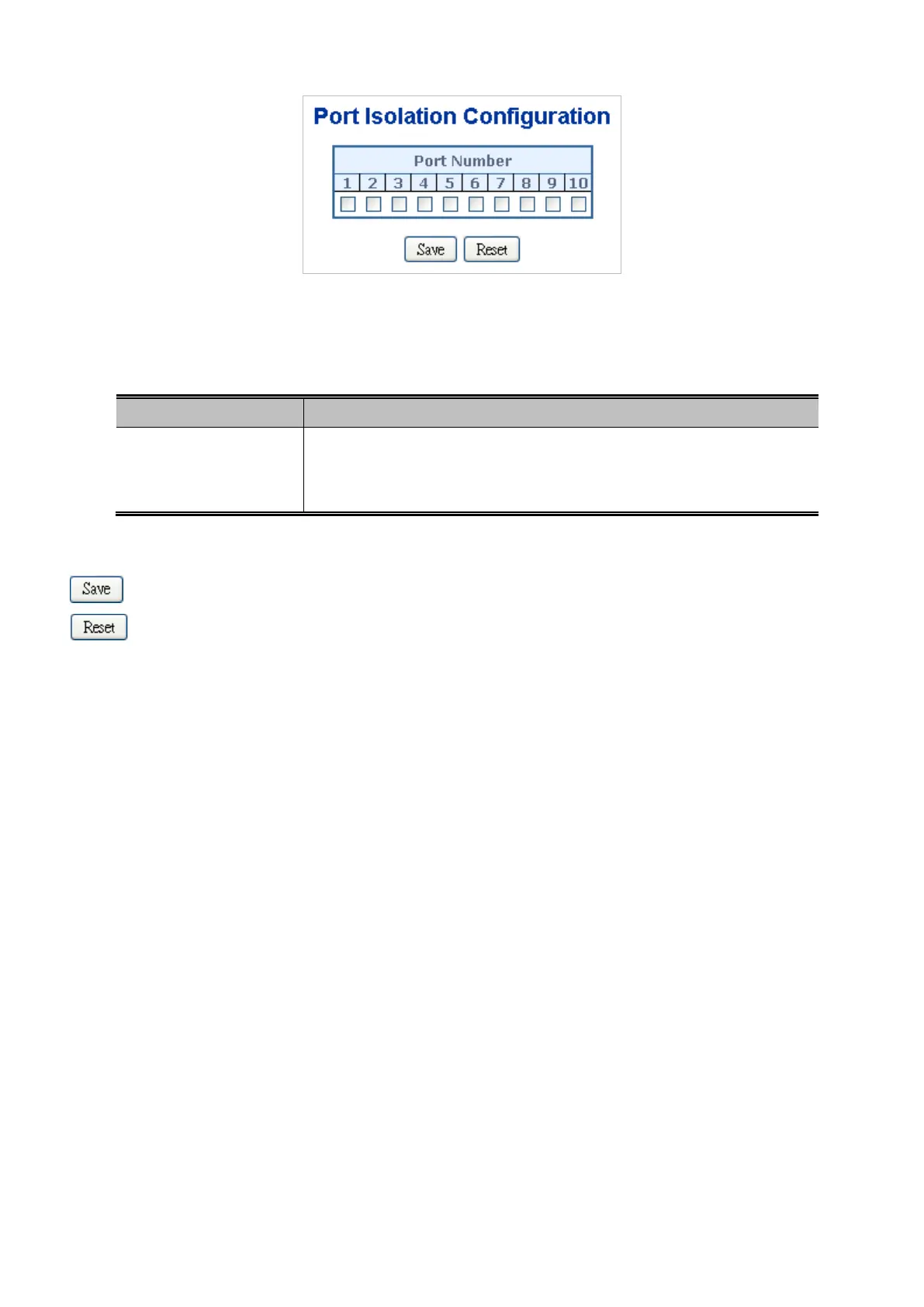

Figure 4-6-7 Port Isolation Configuration page screenshot
The page includes the following fields:
Object Description
• Port Members
A check box is provided for each port of a private VLAN. When checked, port
isolation is enabled on that port. When unchecked, port isolation is disabled on
that port. By default, port isolation is disabled on all ports.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.6.10 VLAN setting example:
- Separate VLAN
- 802.1Q VLAN Trunk
- Port Isolate
4.6.10.1 Two separate 802.1Q VLAN
The diagram shows how the Managed Switch handle Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and
VLAN Group 3 are separated VLAN. Each VLAN isolate network traffic so only members of the VLAN receive traffic from the
same VLAN members. The screen in Figure 4-6-8 appears and Table 4-6-9 describes the port configuration of the Managed
Switches.
