User’s Manual of WGSD-10020 Series
Object Description
• Tag Classification
Controls the classification mode for tagged frames on this port.
Disabled: Use default QoS class and DP level for tagged frames.
Enabled: Use mapped versions of PCP and DEI for tagged frames.
• (PCP, DEI) to (QoS
class, DP level)
Mapping
Controls the mapping of the classified (PCP, DEI) to (QoS class, DP level) values
when Tag Classification is set to Enabled.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
: Return to the previous page.
4.9.4 Port Scheduler
This page provides an overview of QoS Egress Port Schedulers for all switch ports. The Port Scheduler screen in Figure 4-9-4
appears.

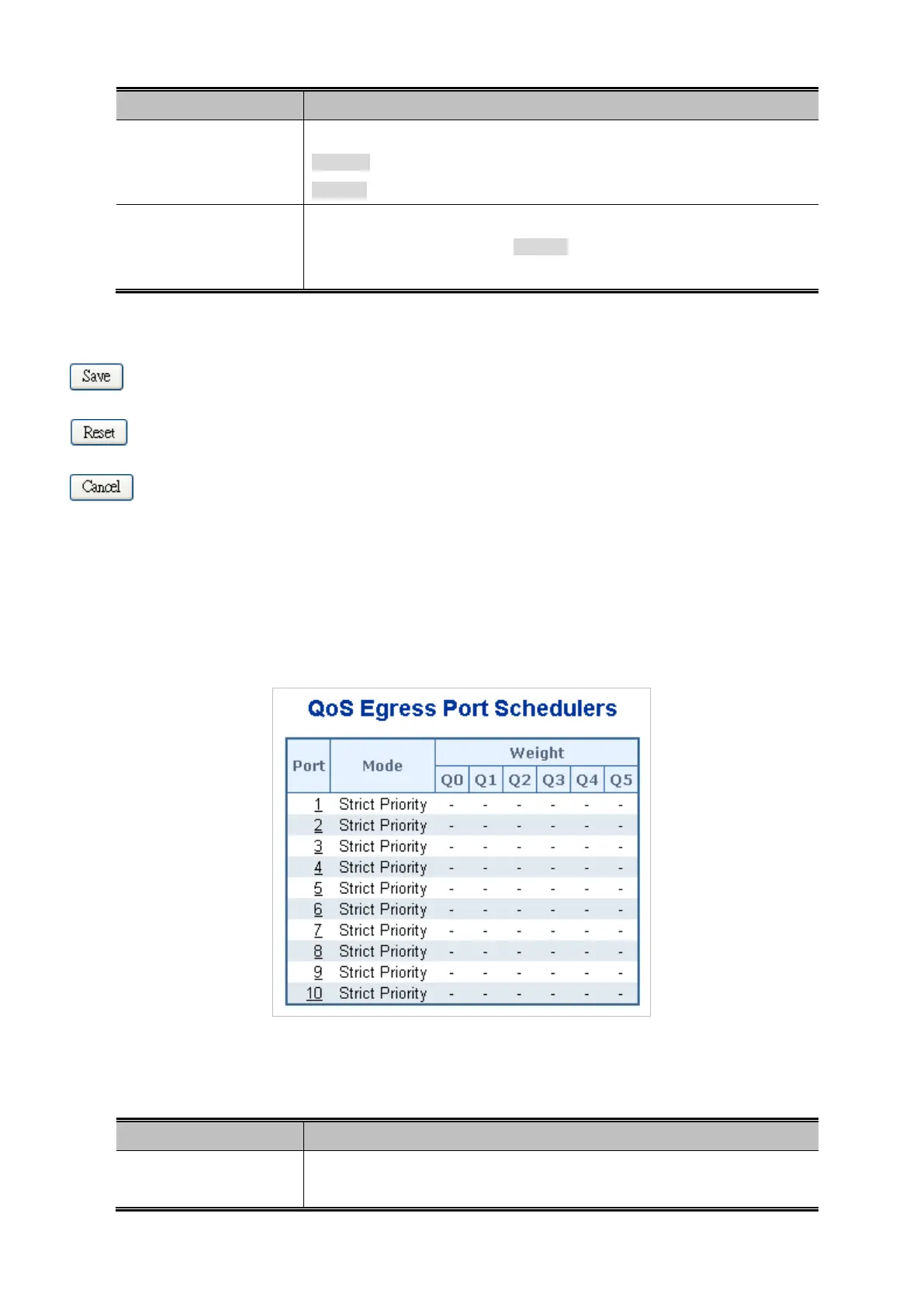

Figure 4-9-4 QoS Egress Port Schedule page screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
Click on the port number in order to configure the schedulers.
