4.10.4 ACL Ports Configuration
Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the
frame matches a specific ACE.
The ACL Ports Configuration screen in Figure 4-10-4 appears.

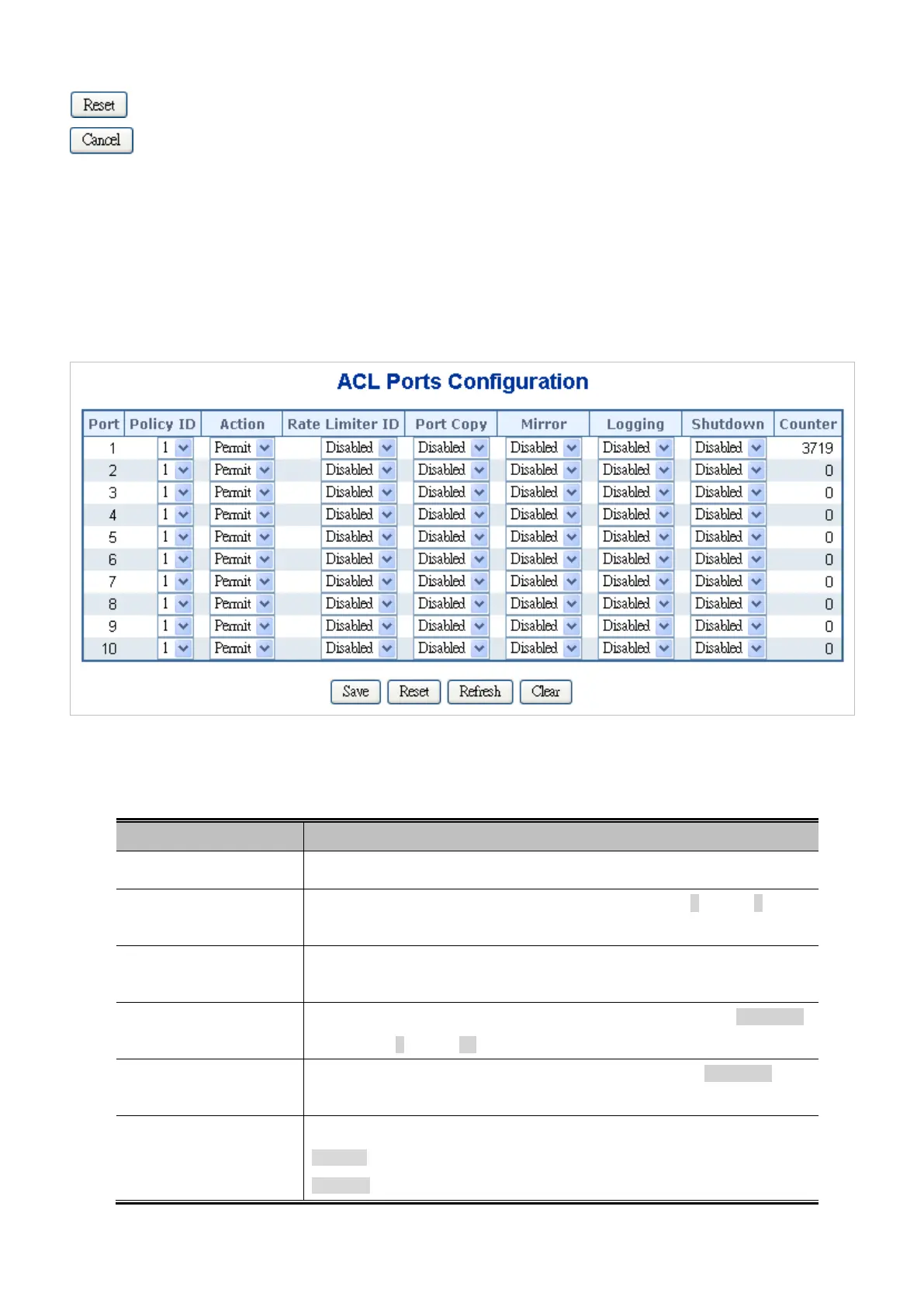

Figure 4-10-4 ACL Ports Configuration page screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
• Policy ID
Select the policy to apply to this port. The allowed values are 1 through 8. The
default value is 1.
• Action
Select whether forwarding is permitted ("Permit") or denied ("Deny"). The default
value is "Permit".
• Rate Limiter ID
Select which rate limiter to apply to this port. The allowed values are Disabled
or the values
1
through
15
. The default value is "Disabled".
• Port Copy
Select which port frames are copied to. The allowed values are Disabled or a
specific port number. The default value is "Disabled".
• Mirror
Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
Disabled: Frames received on the port are not mirrored.
