4.6.12 MAC-based VLAN Status
This page shows MAC-based VLAN entries configured by various MAC-based VLAN users. The MAC-based VLAN Status
screen in Figure 4-6-18 appears.

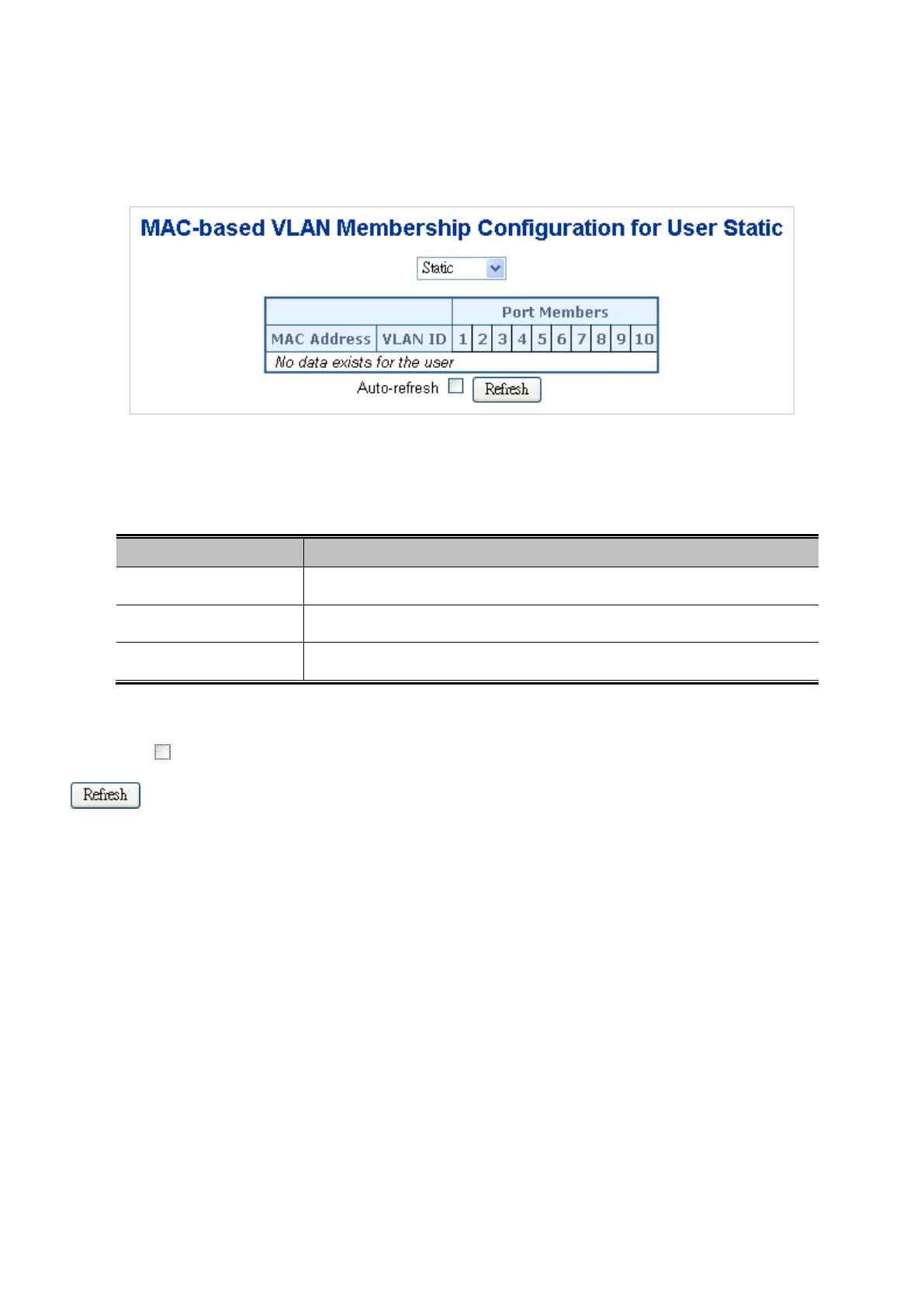

Figure 4-6-18 MAC-based VLAN Membership Configuration for User Static page screenshot
The page includes the following fields:
Object Description
• MAC Address
Indicates the MAC address.
• VLAN ID
Indicates the VLAN ID.
• Port Members
Port members of the MAC-based VLAN entry.
Buttons
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
: Click to refresh the page immediately.
