User’s Manual of WGSD-10020 Series
For more detail, please refer to chapter 4.9.5.1.
• Mode
Shows the scheduling mode for this port.
• Q0 ~ Q5
Shows the weight for this queue and port.
4.9.5 Port Shaping
This page provides an overview of QoS Egress Port Shapers for all switch ports. The Port Shapping screen in Figure 4-9-5
appears.

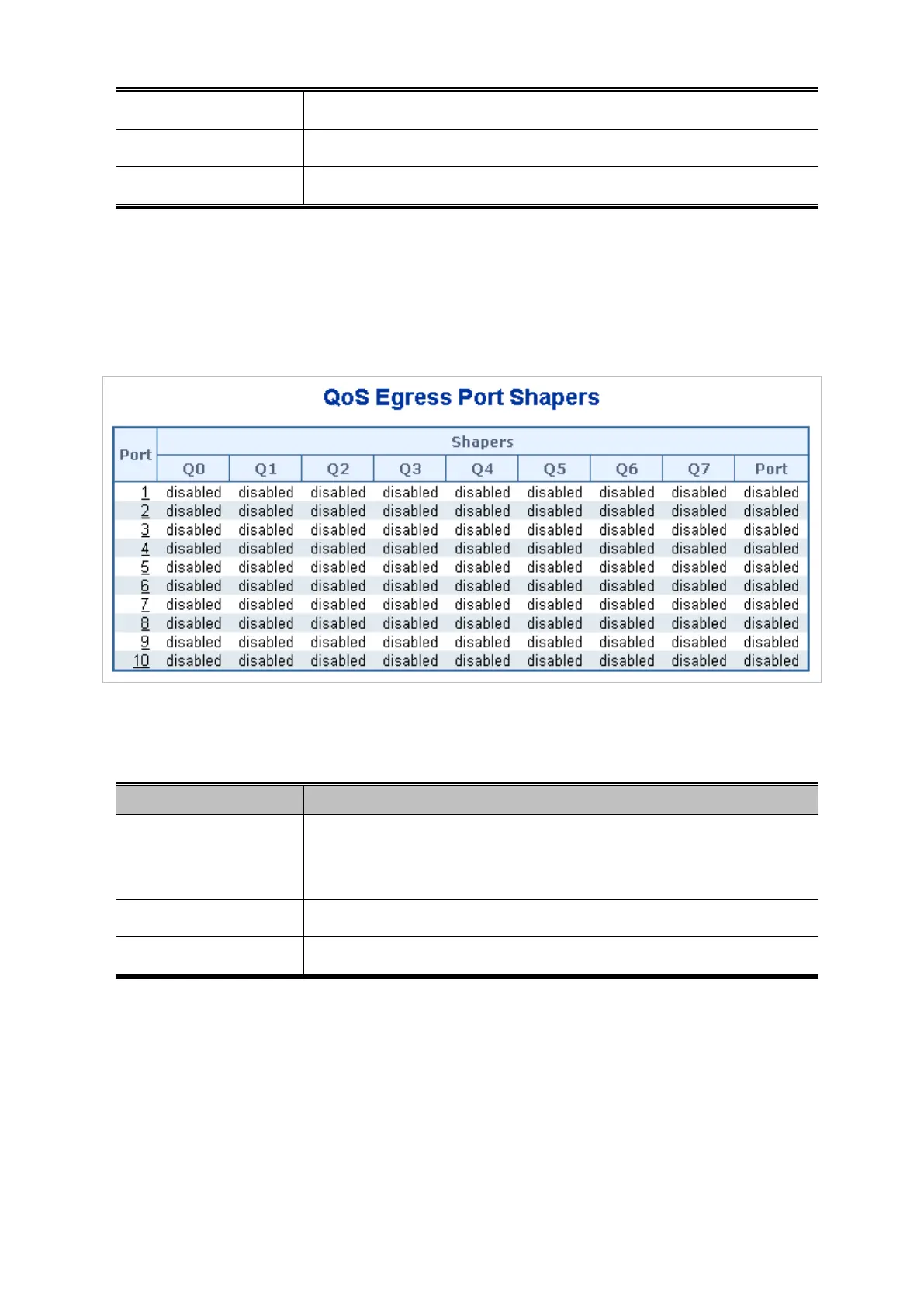

Figure 4-9-5 QoS Egress Port Shapers page screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
Click on the port number in order to configure the shapers.
For more detail, please refer to chapter 4.9.5.1.
• Q0 ~Q7
Shows "disabled" or actual queue shaper rate - e.g. "800 Mbps".
• Port
Shows "disabled" or actual port shaper rate - e.g. "800 Mbps".
4.9.5.1 QoS Egress Port Schedule and Shapers
The Port Scheduler and Shapers for a specific port are configured on this page. The QoS Egress Port Schedule and Shaper
sscreen in Figure 4-9-6 appears.
