User’s Manual of WGSD-10020 Series
IPv4: The QCE will match only IPV4 frames.
IPv6: The QCE will match only IPV6 frames.
• Action
Indicates the classification action taken on ingress frame if parameters
configured are matched with the frame's content.
There are three action fields: Class, DPL and DSCP.
Class: Classified QoS Class; if a frame matches the QCE it will be put in the
queue.
DPL: Drop Precedence Level; if a frame matches the QCE then DP level will set
to value displayed under DPL column.
DSCP: If a frame matches the QCE then DSCP will be classified with the value
displayed under DSCP column.
• Conflict
Displays QCE status. It may happen that resources required to add a QCE may
not available, in that case it shows conflict status as 'Yes', otherwise it is always
'No'.Please note that conflict can be resolved by releaseing the resource required
by the QCE and pressing 'Refresh' button.
Buttons
: Select the QCL status from this drop down list.
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs at regular intervals.
: Click to refresh the page; any changes made locally will be undone.
4.9.13 Storm Control Configuration
Storm control for the switch is configured on this page.
There is a unicast storm rate control, multicast storm rate control, and a broadcast storm rate control. These only affect flooded
frames, i.e. frames with a (VLAN ID, DMAC) pair not present on the MAC Address table.
The configuration indicates the permitted packet rate for unicast, multicast or broadcast traffic across the switch. The Storm
Control Configuration screen in Figure 4-9-16 appears.

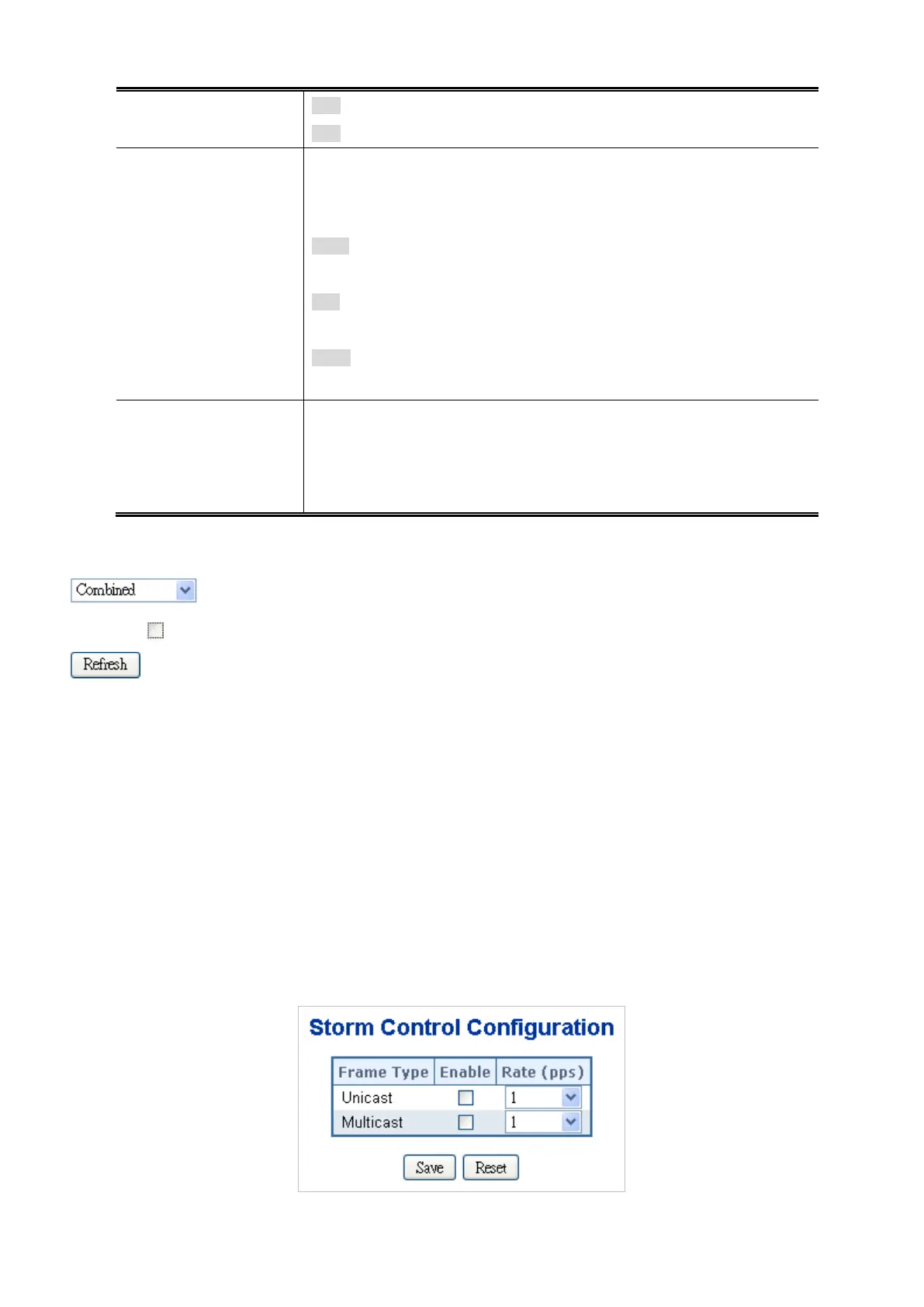

Figure 4-9-16 Storm Control Configuration page screenshot
