4.9.6.1 QoS Egress Port Tag Remarking
The QoS Egress Port Tag Remarking for a specific port are configured on this page. The QoS Egress Port Tag Remarking
sscreen in Figure 4-9-8 appears.

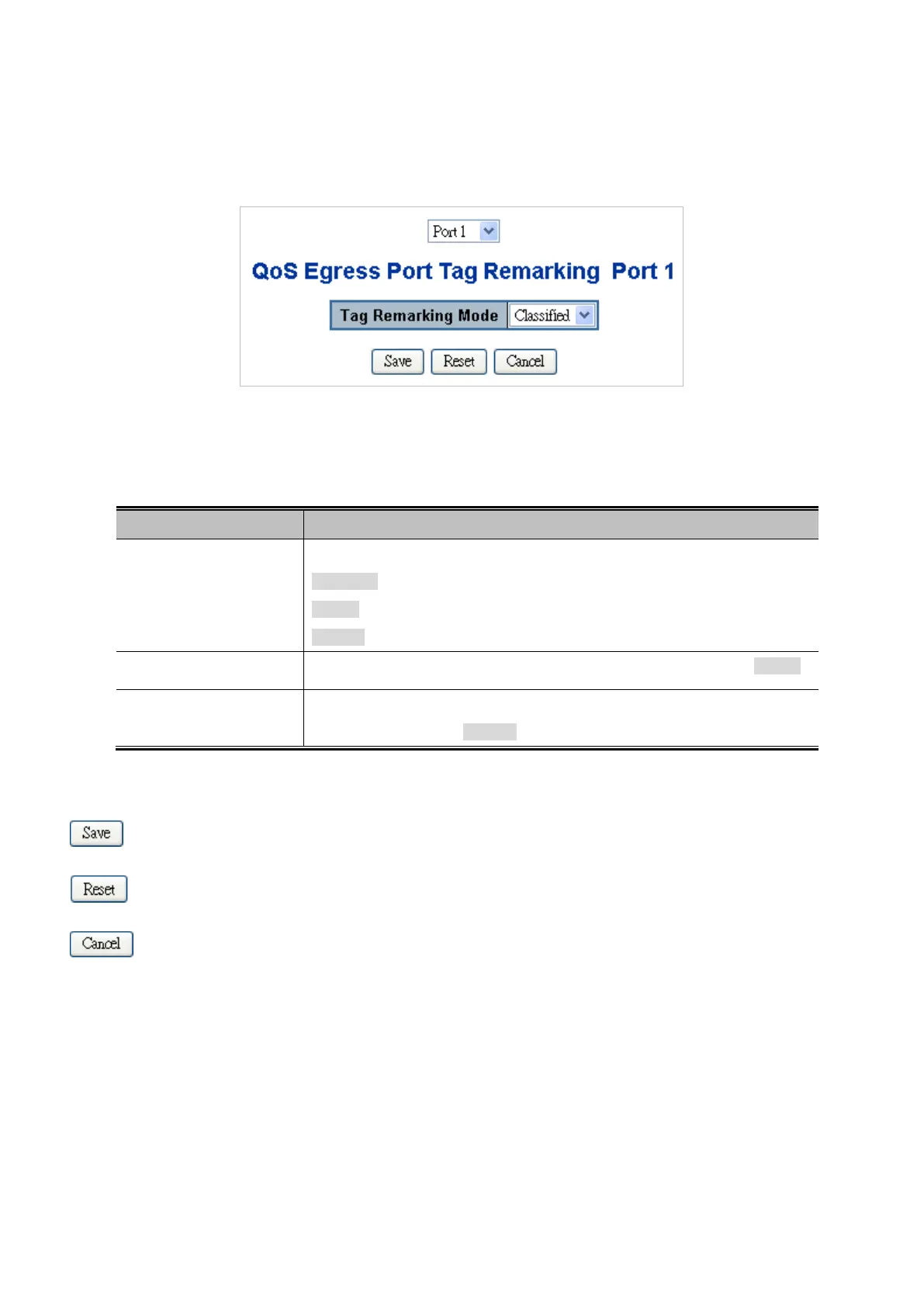

Figure 4-9-8 QoS Egress Port Tag Remarking page screenshot
The page includes the following fields:
Object Description
• Mode
Controls the tag remarking mode for this port.
Classified: Use classified PCP/DEI values.
Default: Use default PCP/DEI values.
Mapped: Use mapped versions of QoS class and DP level.
• PCP/DEI Configuration
Controls the default PCP and DEI values used when the mode is set to Default.
• (QoS class, DP level)
to (PCP, DEI) Mapping
Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI) values
when the mode is set to Mapped.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
: Click to undo any changes made locally and return to the previous page.
4.9.7 Port DSCP
This page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. The Port DSCP screen in
Figure 4-9-9 appears.
