4.4 Port Management
Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:
 Port Configuration Configures port connection settings
 Port Statistics Overview Lists Ethernet and RMON port statistics
 Port Thermal Protection
Status
Display thermal protection status
 Port Statistics Detail Lists Ethernet and RMON port statistics
 SFP Module Information Display SFP information
 Port Mirror Sets the source and target ports for mirroring
4.4.1 Port Configuration
This page displays current port configurations. Ports can also be configured here. The Port Configuration screen in Figure 4-4-1
appears.

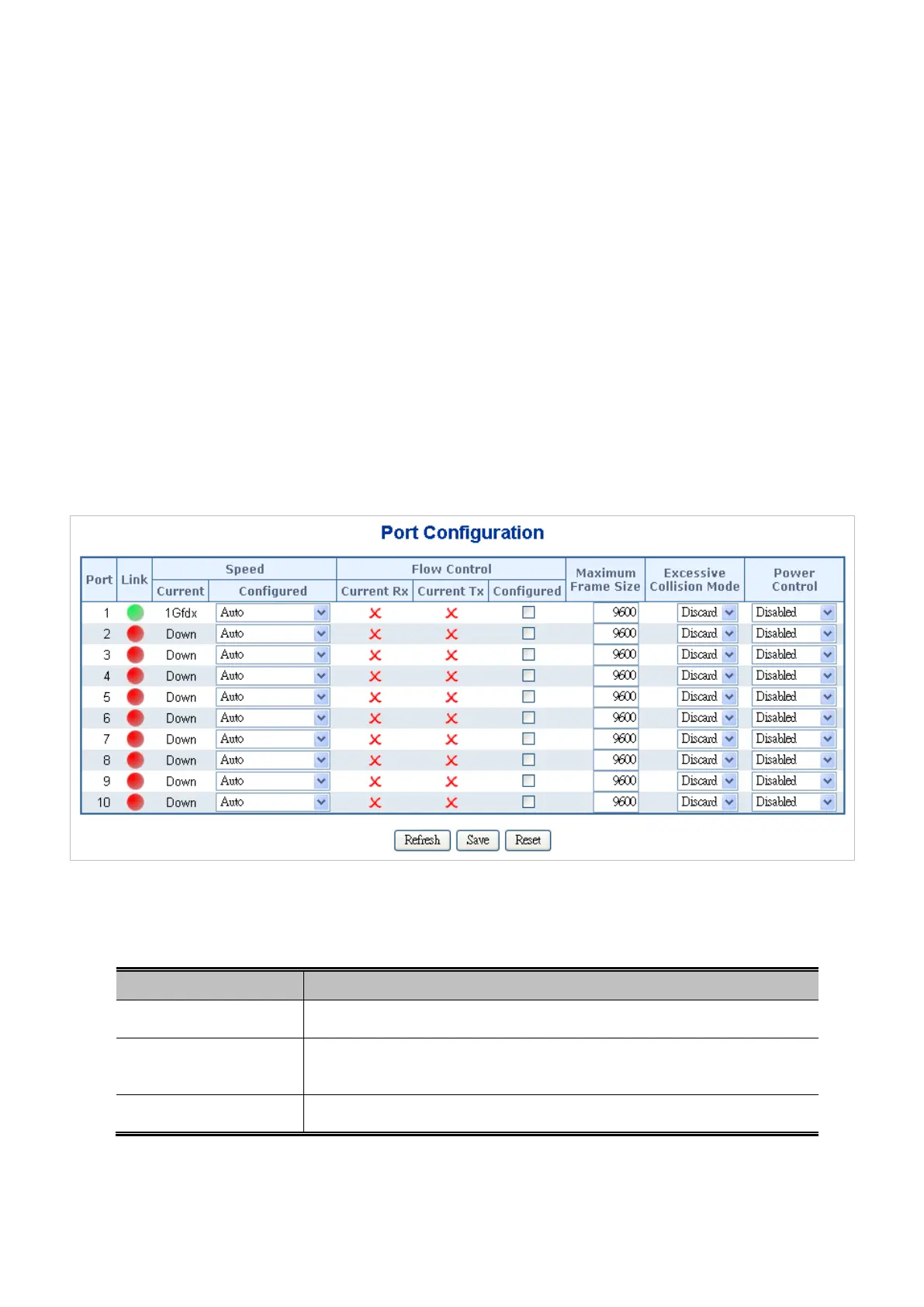

Figure 4-4-1 Port Configuration page screenshot
The page includes the following fields:
Object Description
• Port
This is the logical port number for this row.
• Link
The current link state is displayed graphically. Green indicates the link is up and
red that it is down.
• Current Link Speed
Provides the current link speed of the port.
