User’s Manual of WGSD-10020 Series
4.6.11 MAC-based VLAN
The MAC-based VLAN enties can be configured here. This page allows for adding and deleting MAC-based VLAN entries and
assigning the entries to different ports. This page shows only static entries. The MAC-based VLAN screen in Figure 4-6-17
appears.

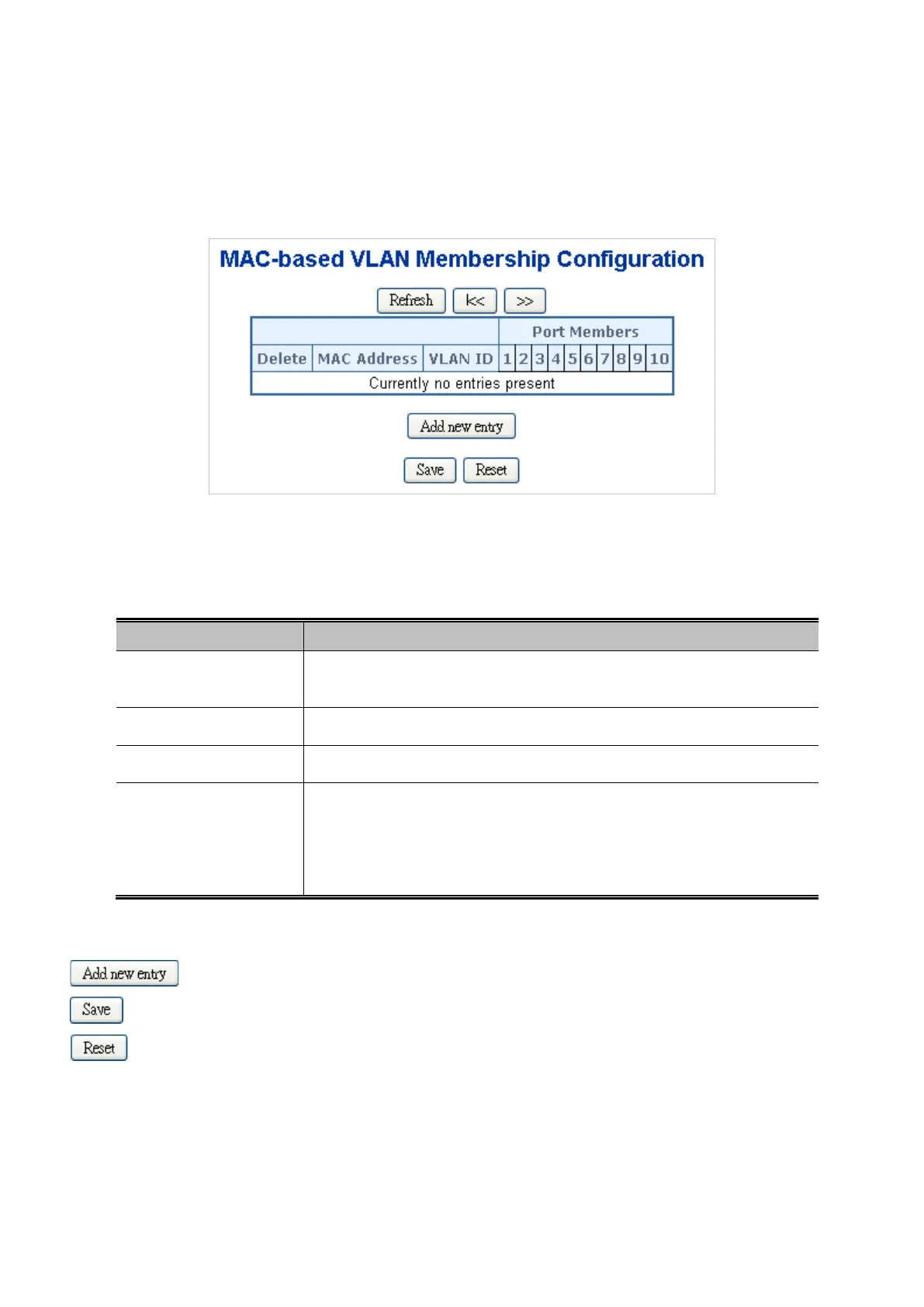

Figure 4-6-17 MAC-based VLAN Membership Configuration page screenshot
The page includes the following fields:
Object Description
• Delete
To delete a MAC-based VLAN entry, check this box and press save. The entry
will be deleted in the stack.
• MAC Address
Indicates the MAC address.
• VLAN ID
Indicates the VLAN ID.
• Port Members
A row of check boxes for each port is displayed for each MAC-based VLAN entry.
To include a port in a MAC-based VLAN, check the box. To remove or exclude
the port from the MAC-based VLAN, make sure the box is unchecked. By default,
no ports are members, and all boxes are unchecked.
Buttons
: Click to add a new MAC-based VLAN entry.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
