User’s Manual of WGSD-10020 Series
• Action Configuration
Class QoS Class: "class (0-7)", default- basic classification
DP Valid DP Level can be (0-3)", default- basic classification
DSCP Valid dscp value can be (0-63, BE, CS1-CS7, EF or AF11-AF43)
Buttons
: Click to save the configuration and move to main QCL page
: Click to undo any changes made locally and revert to previously saved values
: Return to the previous page without saving the configuration change
4.9.12 QoS Status
This page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific
QCE is not applied to the hardware due to hardware limitations. The maximum number of QCEs is 256 on each switch. The
QoS Control List Status screen in Figure 4-9-15 appears.

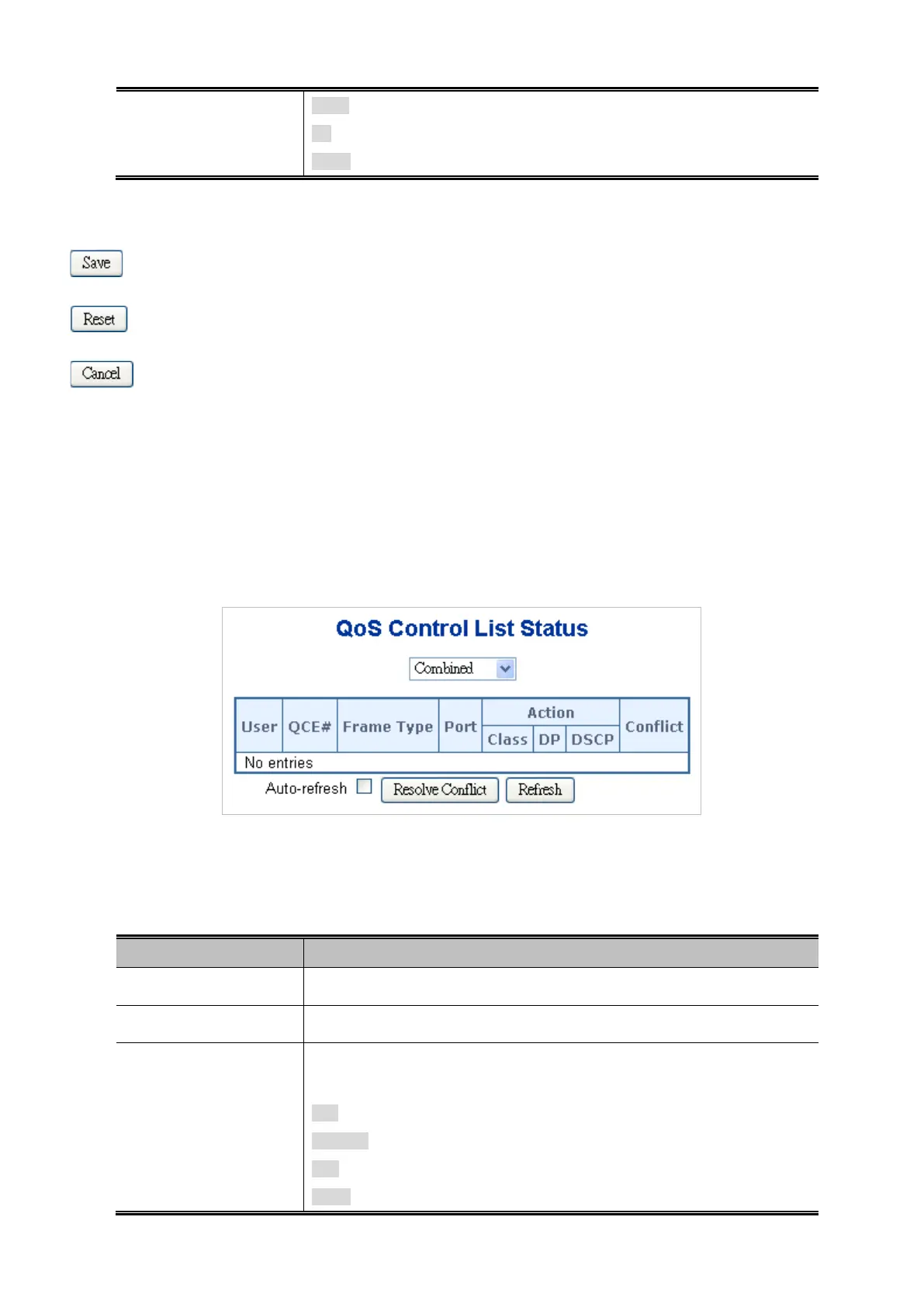

Figure 4-9-15 QoS Control List Status page screenshot
The page includes the following fields:
Object Description
• User
Indicates the QCL user.
• QCE#
Indicates the index of QCE.
• Frame Type
Indicates the type of frame to look for incomming frames. Possible frame types
are:
Any: The QCE will match all frame type.
Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF) are allowed.
LLC: Only (LLC) frames are allowed.
SNAP: Only (SNAP) frames are allowed.
