User’s Manual of WGSD-10020 Series
133
sub-values.
a.OUI: OUI (Organizationally Unique Identifier) is value in format of
xx-xx-xx where each pair (xx) in string is a hexadecimal value ranges
from 0x00-0xff.
b. PID
: If the OUI is hexadecimal 000000, the protocol ID is the Ethernet
type (EtherType) field value for the protocol running on top of SNAP; if
the OUI is an OUI for a particular organization, the protocol ID is a value
assigned by that organization to the protocol running on top of SNAP.
In other words, if value of OUI field is 00-00-00 then value of PID will be
etype (0x0600-0xffff) and if value of OUI is other than 00-00-00 then
valid value of PID will be any value from 0x0000 to 0xffff.
• Group Name
A valid Group Name is a unique 16-character long string for every entry which
consists of a combination of alphabets (a-z or A-Z) and integers(0-9).
Note: special character and underscore(_) are not allowed.
Buttons
: Click to add a new entry in mapping table.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.6.14 Protocol-based VLAN Mambership
This page allows you to map a already configured Group Name to a VLAN for the switch. The Group Name to VLAN Mapping
Table screen in Figure 4-6-20 appears.

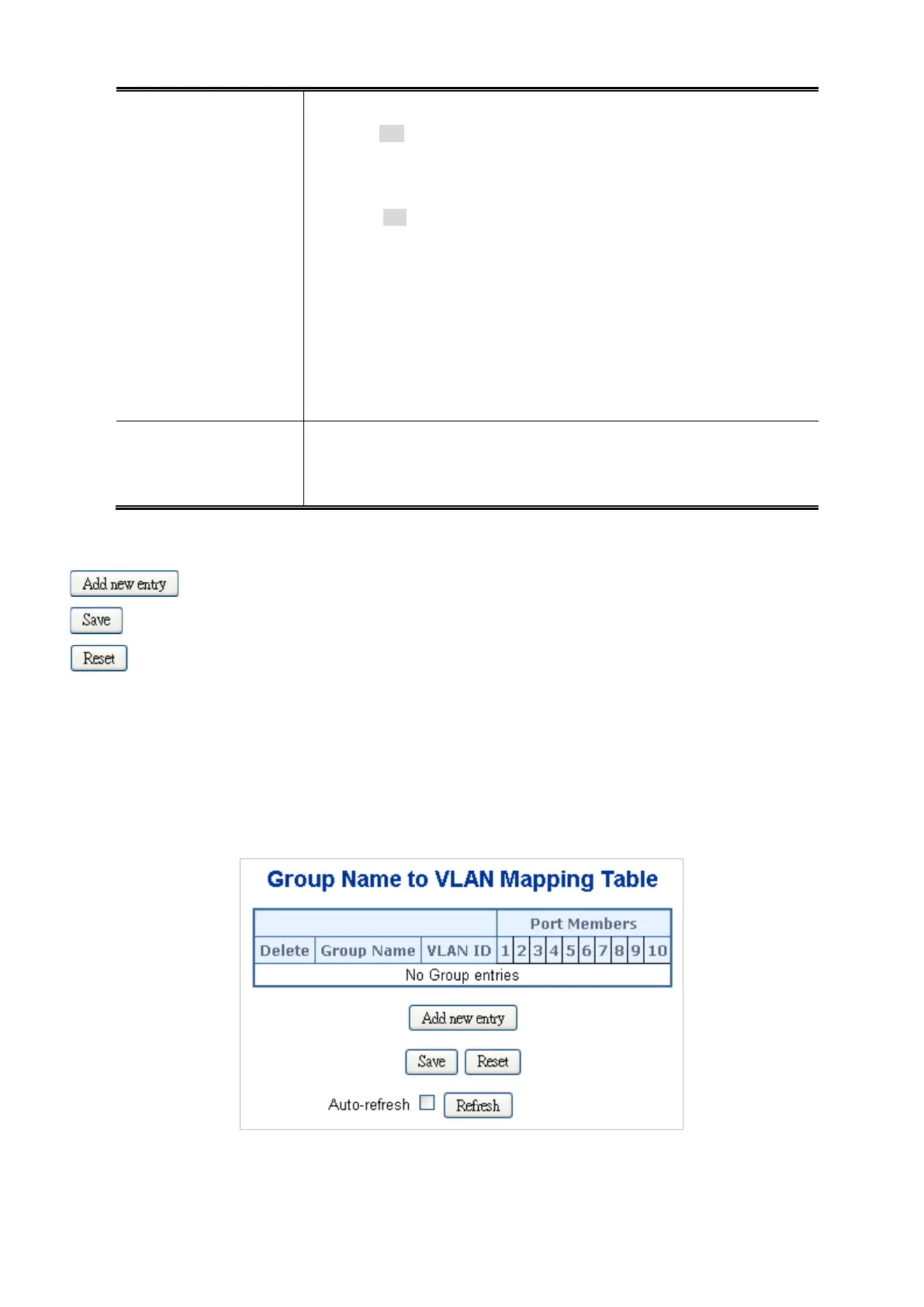

Figure 4-6-20 Group Name to VLAN Mapping Table page screenshot
