Planet WGSD-10020 - LED Indications

User’s Manual of WGSD-10020 Series
30
Reset Button Pressed and Released
Function
< 5 sec: System reboot Reboot the Managed Switch
> 5 sec: Factory Default
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
settings as below:
。 Default Username: admin
。 Default Password: admin
。 Default IP address: 192.168.0.100
。 Subnet mask: 255.255.255.0
。
Default Gateway: 192.168.0.254
2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, data activity and system power; helps monitor and troubleshoot when
needed. Figure 2-3 & Figure 2-4 shows the LED indications of these Managed Switches.
WGSD-10020 LED indication

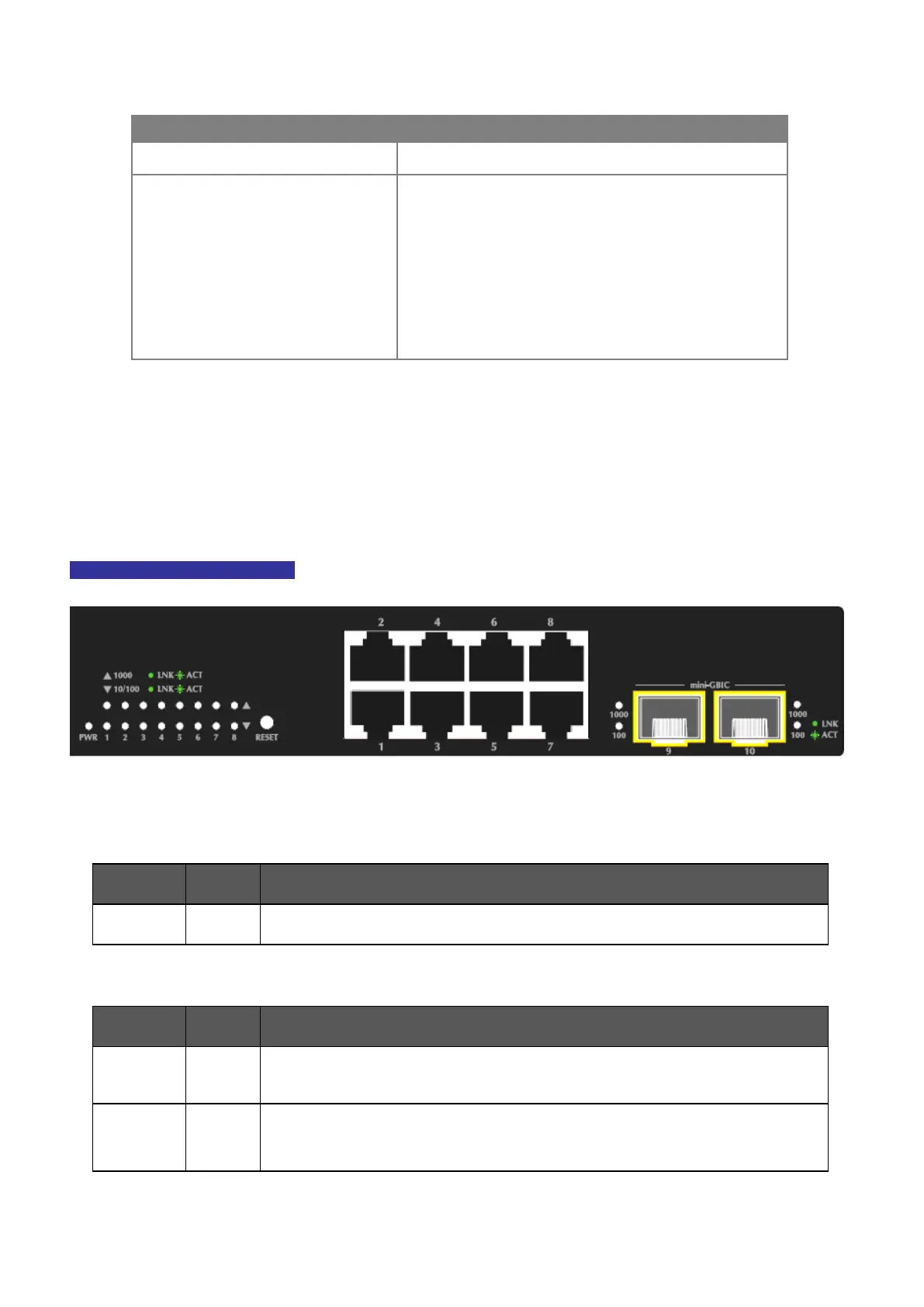

Figure 2-3 WGSD-10020 LED panel
System
LED Color Function
PWR Green
Lights to indicate that the Switch has power.
Per 10/100/1000Mbps port
LED Color Function
1000
LNK/ACT
Green
Lights to indicate the port is running in 1000Mbps speed and successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
10/100
LNK/ACT
Green
Lights to indicate the port is running in 10/100Mbps speed and successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
