User’s Manual of WGSD-10020 Series
318
Configure IP address
The SGSW Managed Switch is shipped with default IP address as following.
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please use the procedures as follow:
 Show the current IP address
1. On ”WGSD-10020HP/> ” prompt, enter “ip configuration”.

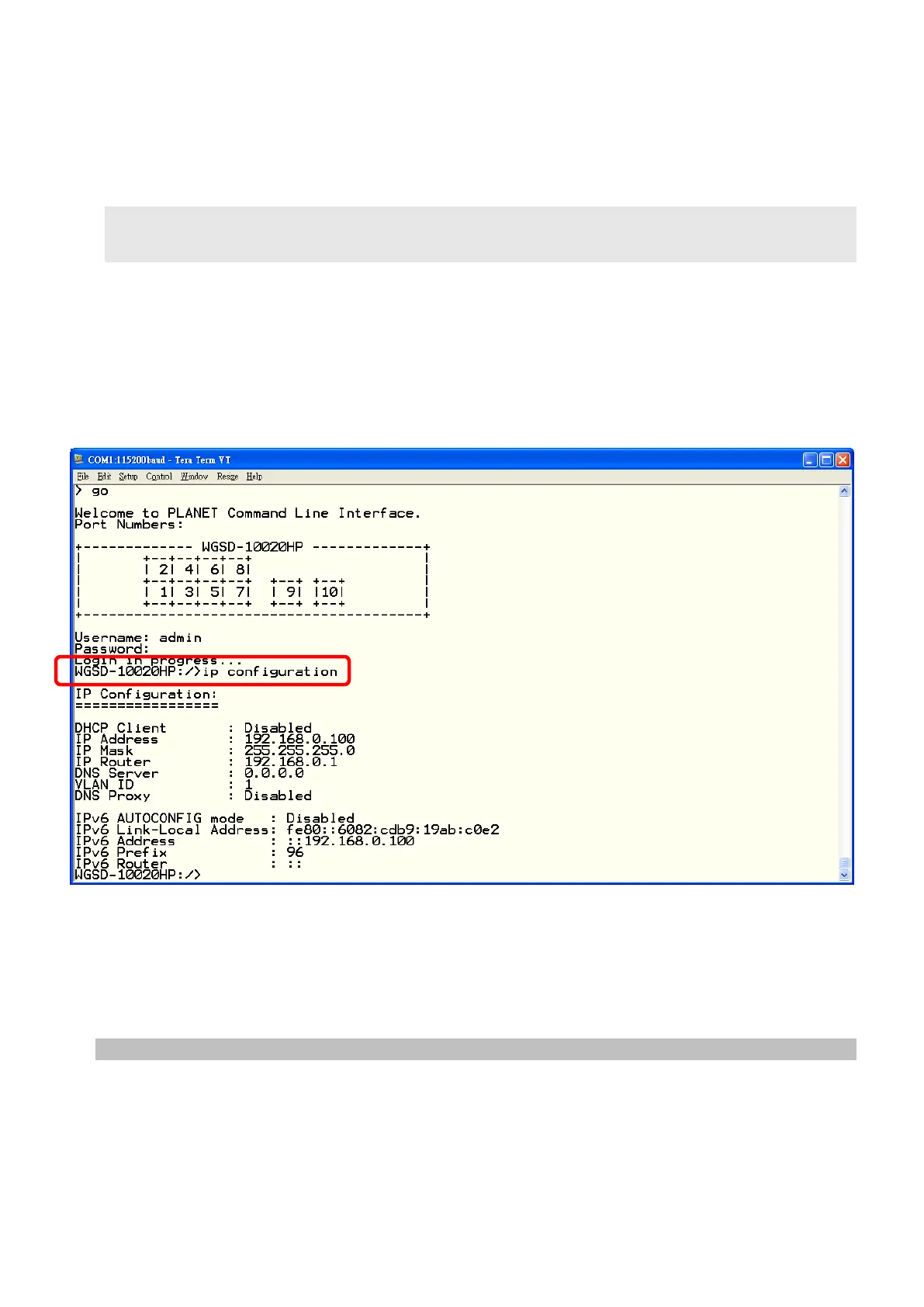

2. The screen displays the current IP address, Subnet Mask and Gateway. As show in Figure 5-2.
Figure 5-2 Show IP information screen
 Configure IP address
3. On “WGSD-10020HP/> ” prompt, enter the following command and press <Enter>. As show in Figure 5-3.
WGSD-10020HP/> ip setup 192.168.0.101 255.255.255.0 192.168.0.253 1
The previous command would apply the follow settings for the Switch.
IP: 192.168.0.101
Subnet Mask: 255.255.255.0
Gateway: 192.168.0.253
VLAN ID: 1
