User’s Manual of WGSD-10020 Series
Buttons
: Click to add a new entry.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.13.2 MAC Address Table Status
Dynamic MAC Table
Entries in the MAC Table are shown on this page. The MAC Table contains up to 8192 entries, and is sorted first by VLAN ID,
then by MAC address. The MAC Address Table screen in Figure 4-13-2 appears.

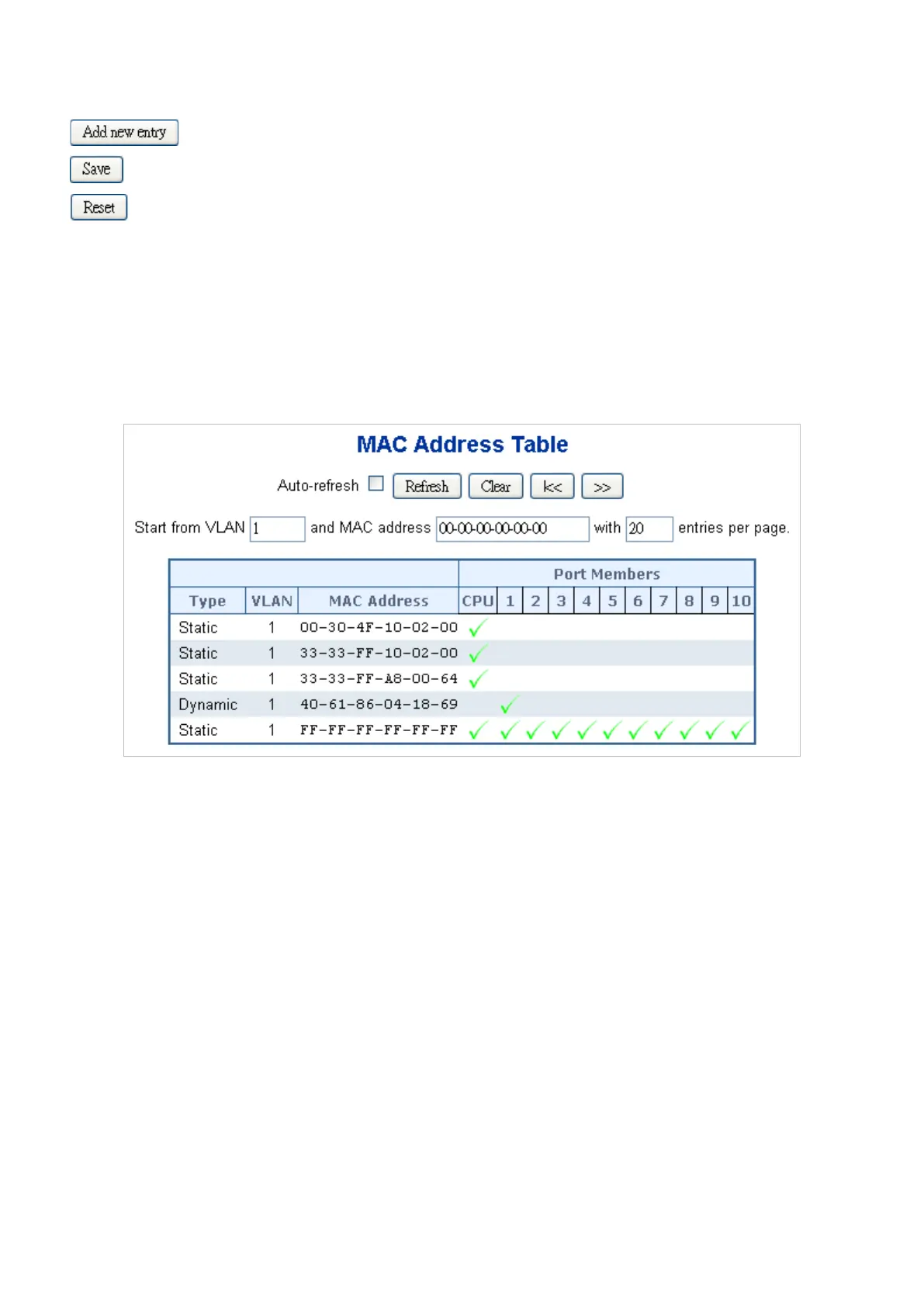

Figure 4-13-2 MAC Address Table Status
Navigating the MAC Table
Each page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per page" input
field. When first visited, the web page will show the first 20 entries from the beginning of the MAC Table. The first displayed
will be the one with the lowest VLAN ID and the lowest MAC address found in the MAC Table.
The "Start from MAC address" and "VLAN" input fields allow the user to select the starting point in the MAC Table.
Clicking the “Refresh” button will update the displayed table starting from that or the closest next MAC Table match.
In addition, the two input fields will - upon a “Refresh” button click - assume the value of the first displayed entry, allowing
for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed VLAN/MAC address pairs as a basis for the next lookup. When the
end is reached the text "no more entries" is shown in the displayed table. Use the “|<<” button to start over.
The page includes the following fields:
