User’s Manual of WGSD-10020 Series
31
Per 100/1000Base-X SFP interfaces
LED Color Function
1000 Green
Lights to indicate the link through that port is successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
100 Green
Lights to indicate the link through that port is successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.

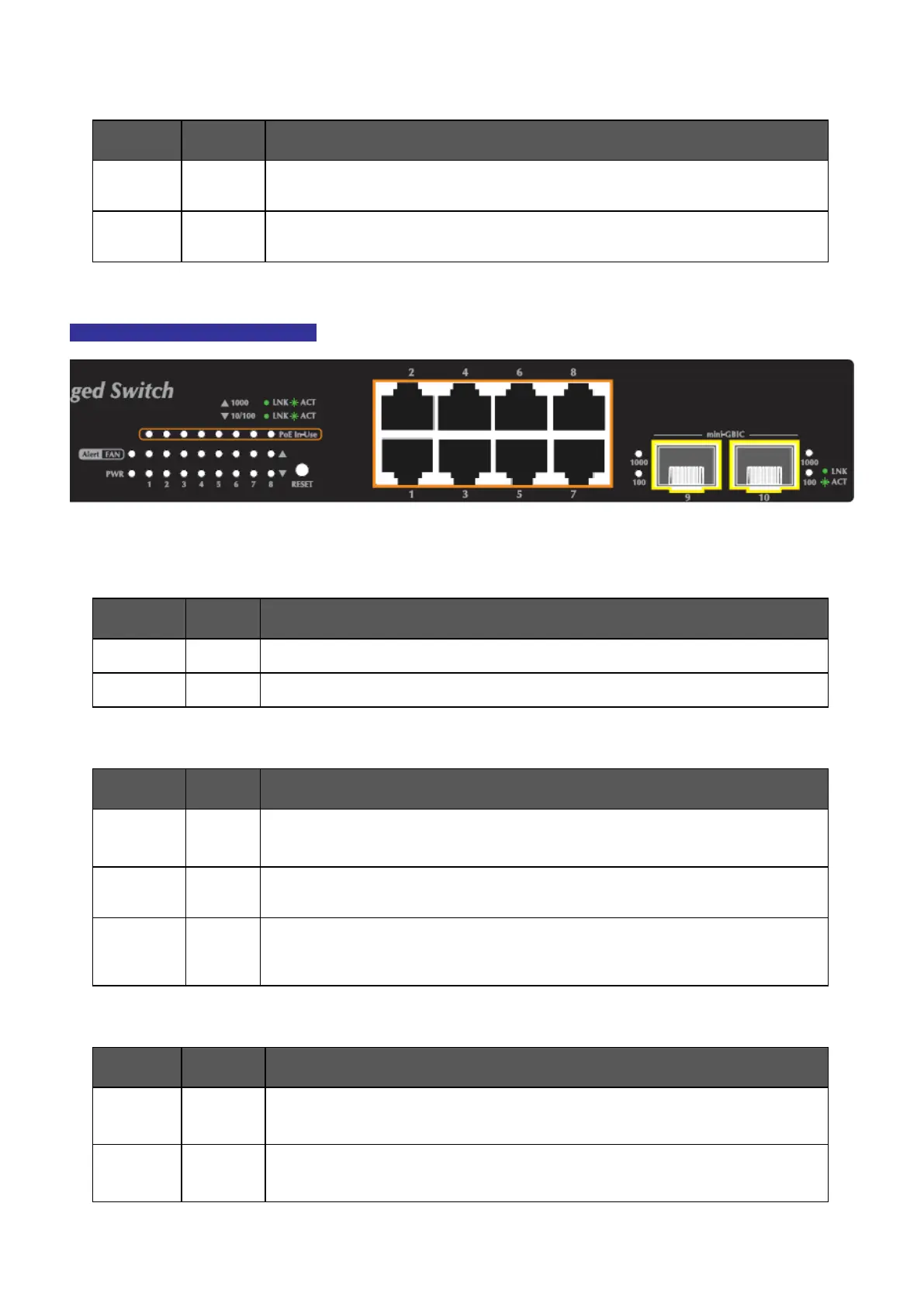

WGSD-10020HP LED indication
Figure 2-4 WGSD-10020HP LED panel
System
LED Color Function
FAN Alert Green
Lights to indicate that the fan is fail.
PWR Green
Lights to indicate that the Switch has power.
Per 10/100/1000Mbps port
LED Color Function
PoE In-Use Orange
Lights to indicate the port is providing 52VDC in-line power
Off: indicate the connected device is not a PoE Powered Device (PD)
1000
LNK/ACT
Green
Lights to indicate the port is running in 1000Mbps speed and successfully established.
Blink
: indicate that the switch is actively sending or receiving data over that port.
10/100
LNK/ACT
Green
Lights to indicate the port is running in 10/100Mbps speed and successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
Per 100/1000Base-X SFP interfaces
LED Color Function
1000 Green
Lights to indicate the link through that port is successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
100 Green
Lights to indicate the link through that port is successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
