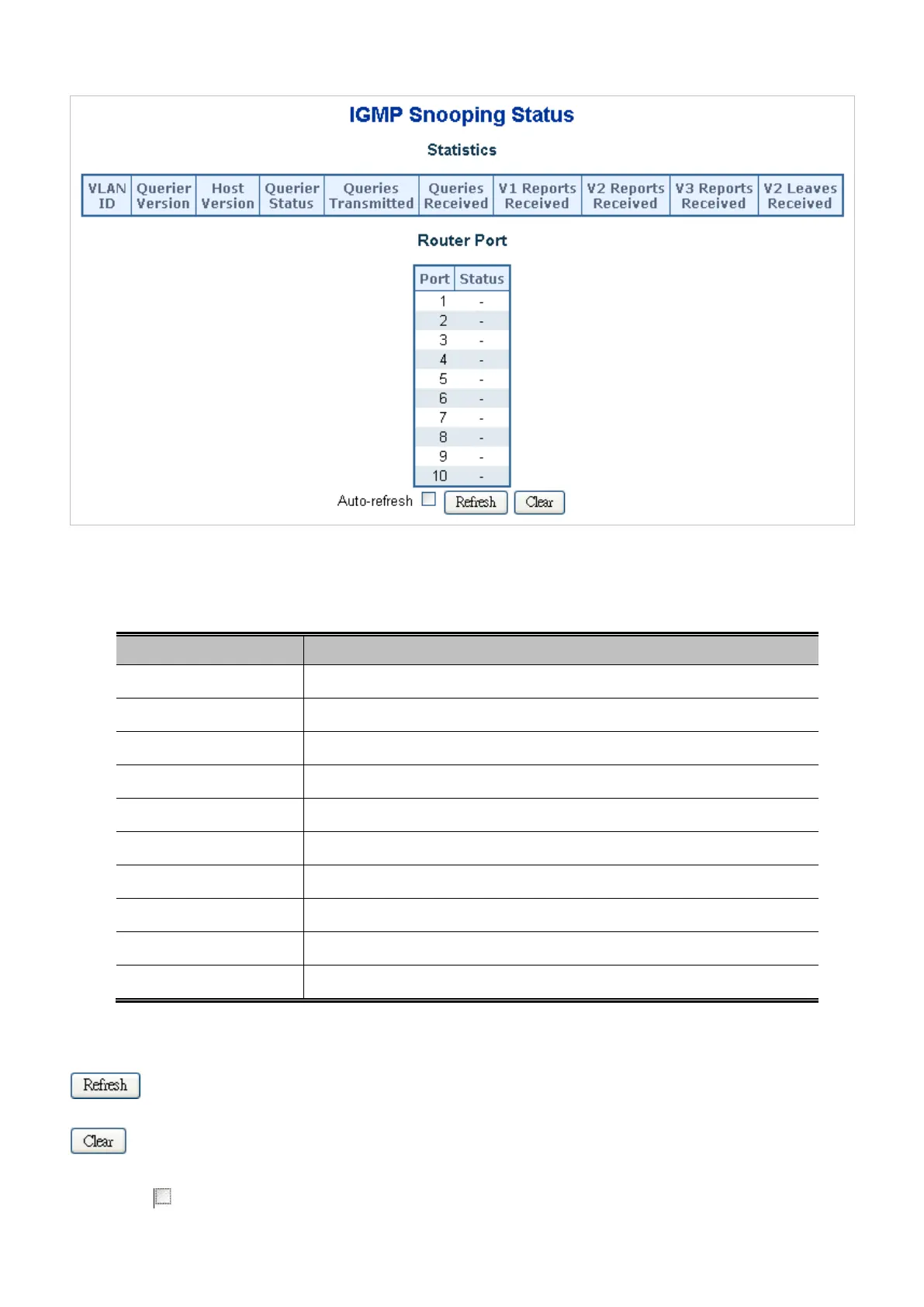

Figure 4-8-8 IGMP Snooping Status page screenshot
The page includes the following fields:
Object Description
• VLAN ID
The VLAN ID of the entry.
• Querier Version
Working Querier Version currently.
• Host Version
Working Host Version currently.
• Querier Status
Show the Querier status is "ACTIVE" or "IDLE".
• Querier Transmit
The number of Transmitted Querier.
• Querier Receive
The number of Received Querier.
• V1 Reports Receive
The number of Received V1 Reports.
• V2 Reports Receive
The number of Received V2 Reports.
• V3 Reports Receive
The number of Received V3 Reports.
• V2 Leave Receive
The number of Received V2 Leave.
Buttons
: Click to refresh the page immediately.
: Clears all Statistics counters.
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
