User’s Manual of WGSW-28040 / 28040P
101

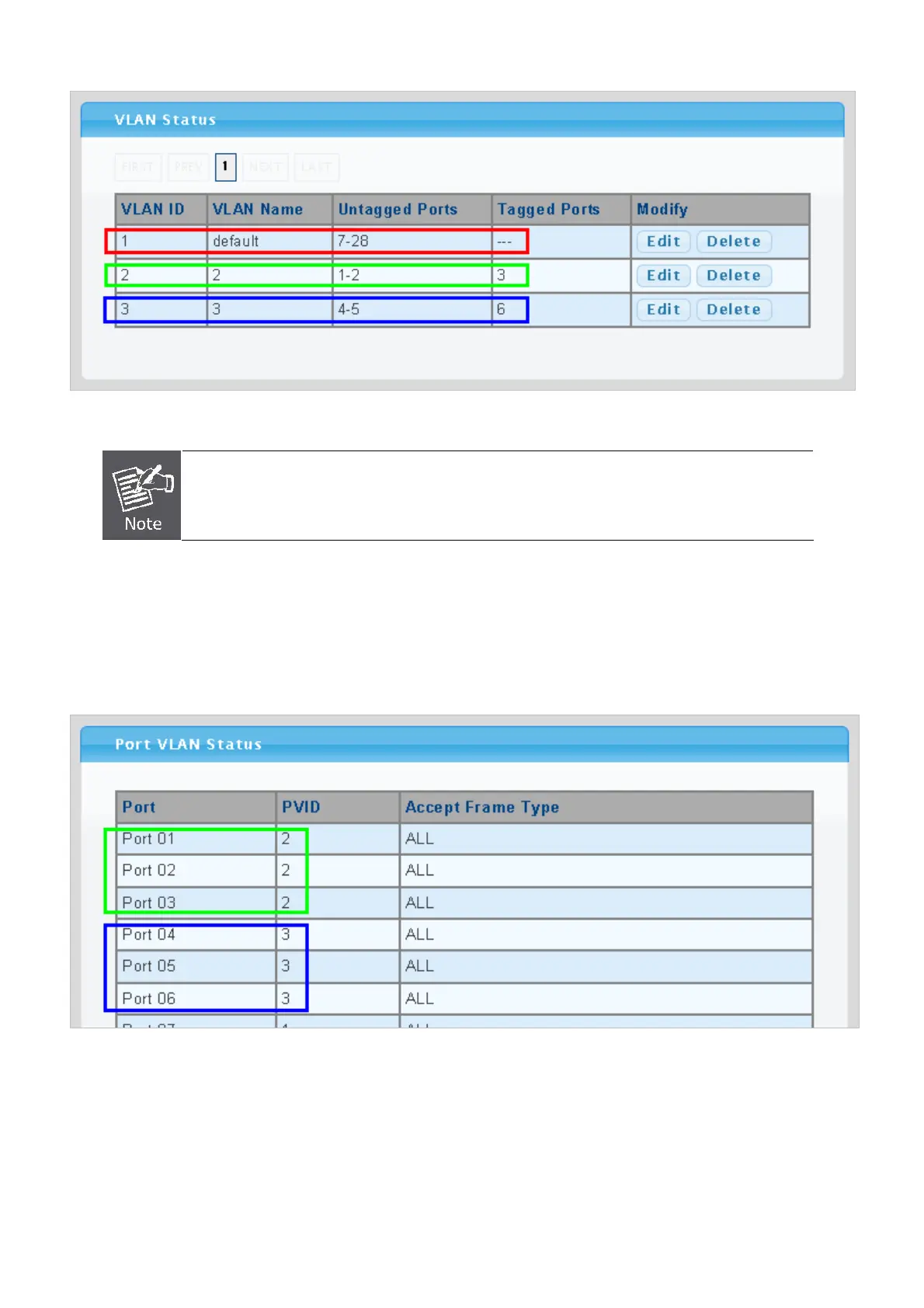

Figure 4-5-12 Add new VLAN group, assign VLAN members for VLAN 2 and VLAN 3 and remove specify ports from VLAN 1
member
It’s import to remove the VLAN members from VLAN 1 configuration. Or the ports would become
overlap setting. ( About the overlapped VLAN configuration, see next VLAN configure sample)
4. Assign PVID for each port:
Port-1,Port-2 and Port-3 : PVID=2
Port-4,Port-5 and Port-6 : PVID=3
The Per Port VLAN configuration in Figure 4-5-14 appears.
Figure 4-5-14 Port 1-Port 6 VLAN Configuration
